제품 라인업 — Anchoring elements · Anchorplates
| No. | b1 | b2 | b3 | b4 | b5 | b6 | b7 | c | e | k | ø d1 | ø d2 | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30818-0003-08 | 100 | 100 | 70 | 15 | 70 | 27 | 65 | 21 | 12 | 8 | 9 | 11 | 0.7090 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30818-0003-10 | 100 | 100 | 70 | 15 | 70 | 28 | 72 | 23 | 13 | 10 | 11 | 11 | 0.9100 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30818-0003-12 | 125 | 120 | 85 | 20 | 80 | 34 | 95 | 27 | 19 | 12 | 13 | 13 | 1.6700 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30818-0003-16 | 145 | 120 | 95 | 25 | 70 | 41 | 110 | 33 | 21 | 15 | 17 | 15 | 2.4600 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30818-0003-20 | 205 | 150 | 155 | 25 | 100 | 70 | 129 | 39 | 25 | 20 | 21 | 19 | 5.5800 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||

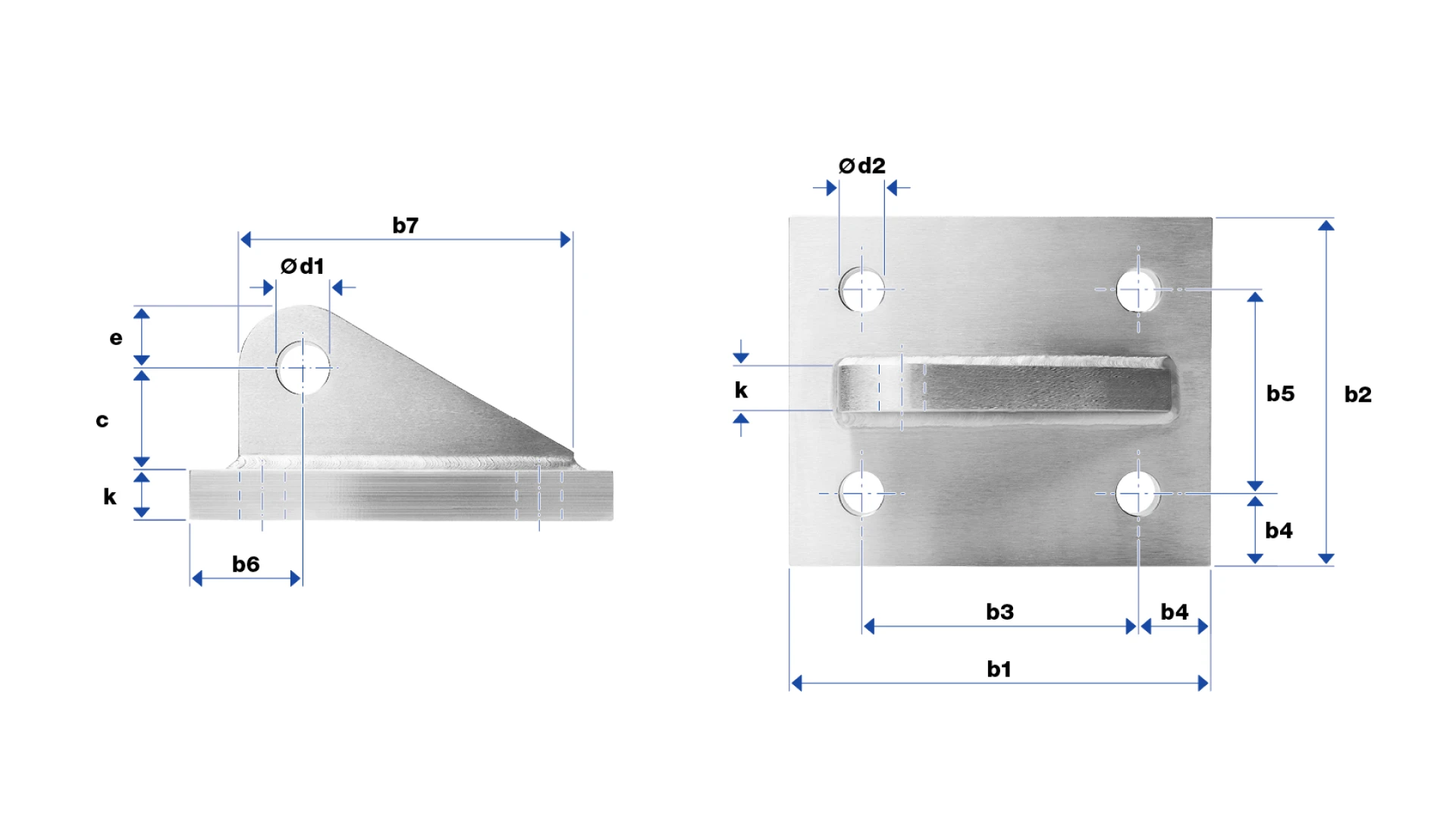

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
