제품 라인업 — Anchoring elements · Spacer
| No. | a1 | a2 | b6 | c | k | ø d1 | ø d2 | sw | F_Rd kN | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30897-0100-10 | M8 | M10 | 100 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 0.6540 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 30897-0150-10 | M8 | M10 | 150 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 0.8560 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 30897-0200-10 | M8 | M12 | 200 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 1.0920 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||

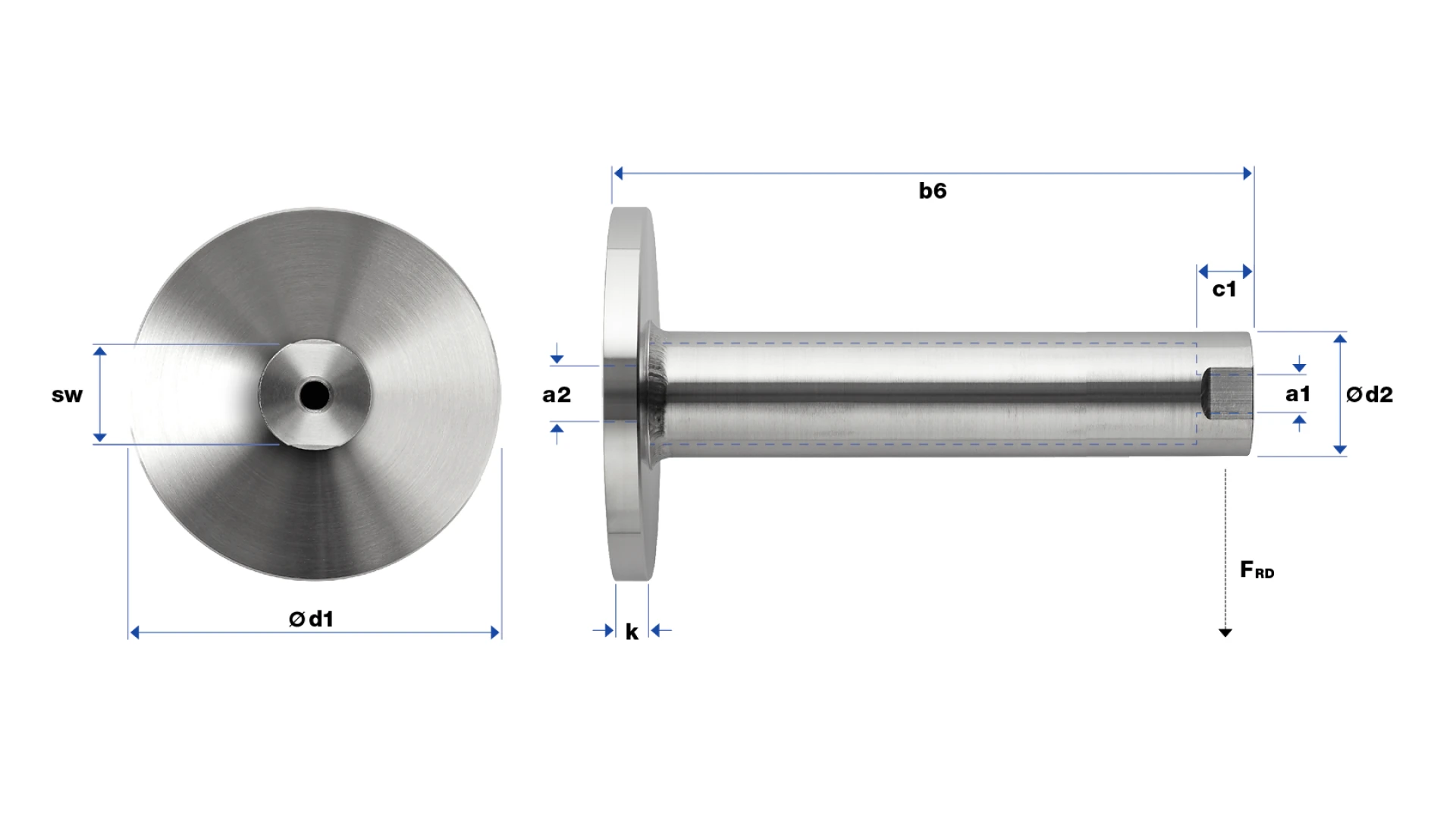

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
