Spacer GreenWebnet

제품 라인업 — Anchoring elements · Spacer

Spacer GreenWebnet

No.	a	b6	c	k	ø d1	ø d2	ø d4	ø d5	F_Rd kN	kg
30897-0100-00	M8	100	8	10	115	42.4	92	12	10.0	1.0180
Further informations Surface: ground, grain 320 Weight: 1.0180 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30897-0150-00	M8	150	8	10	120	42.4	92	13	10.0	1.4400
Further informations Surface: ground, grain 320 Weight: 1.4400 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30897-0200-00	M8	200	8	10	125	42.4	92	16.5	10.0	1.7720
Further informations Surface: ground, grain 320 Weight: 1.7720 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

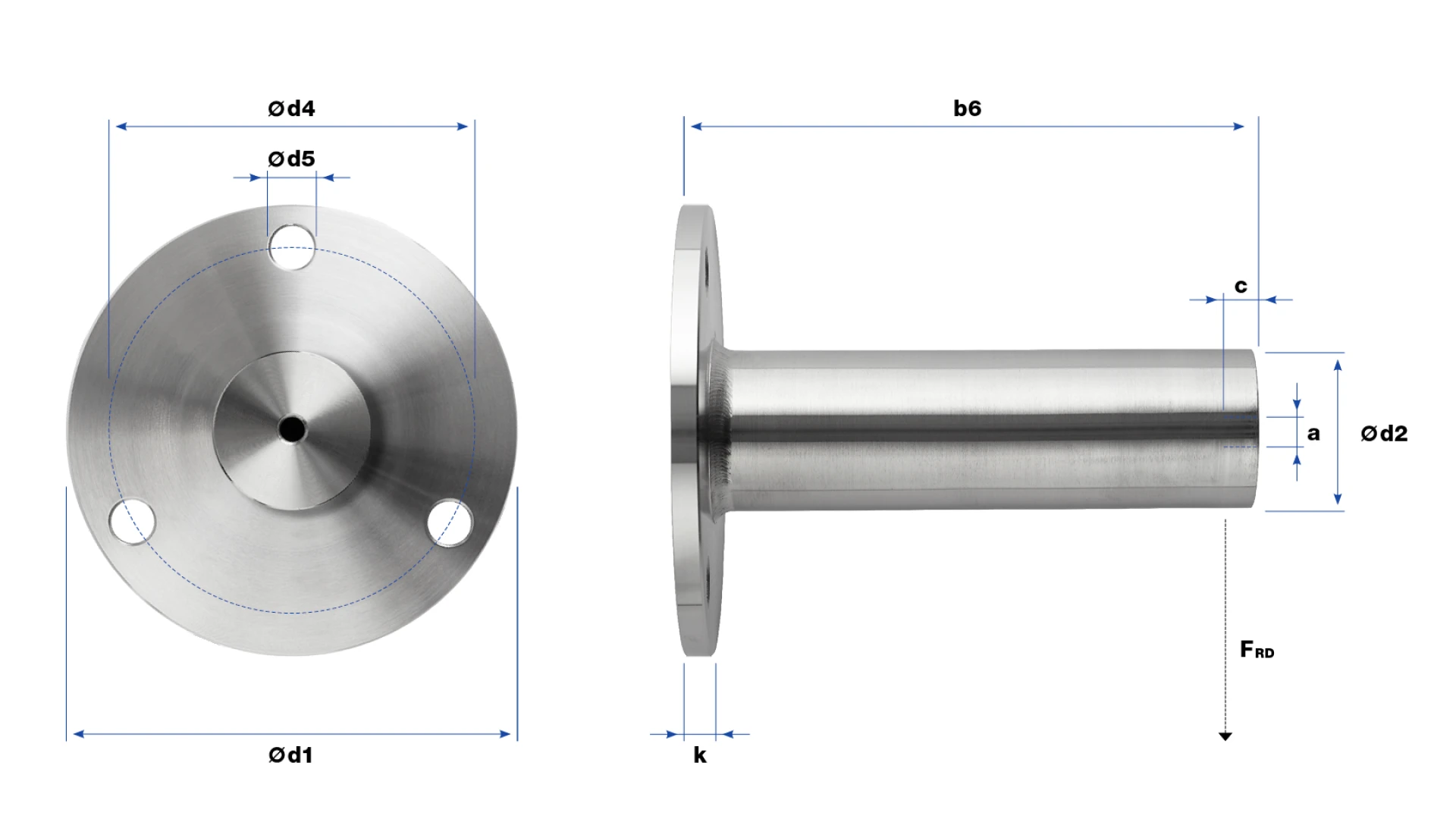

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
