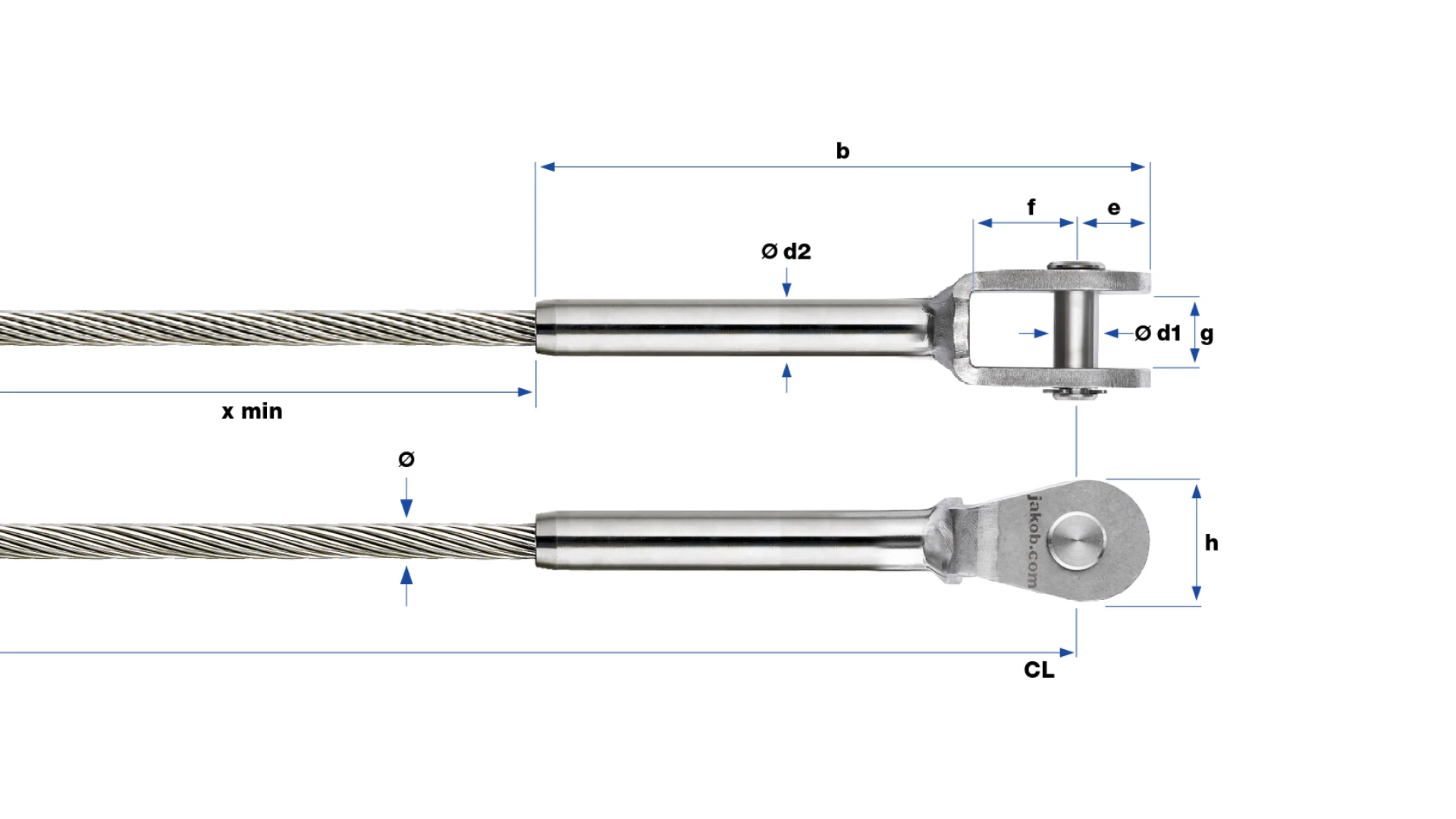

제품 라인업 — Clevises · Clevis swaged and self-assembly
| No. | ø | b | e | f | g | h | ø d1 | ø d2 | x min | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30981-0800-03 | 8 | 133 | 19 | 24 | 16 | 32 | 12 | 16 | 400 | 0.1840 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
| 30981-1000-03 | 10 | 170 | 23 | 32 | 22 | 38 | 14 | 18 | 500 | 0.3790 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
