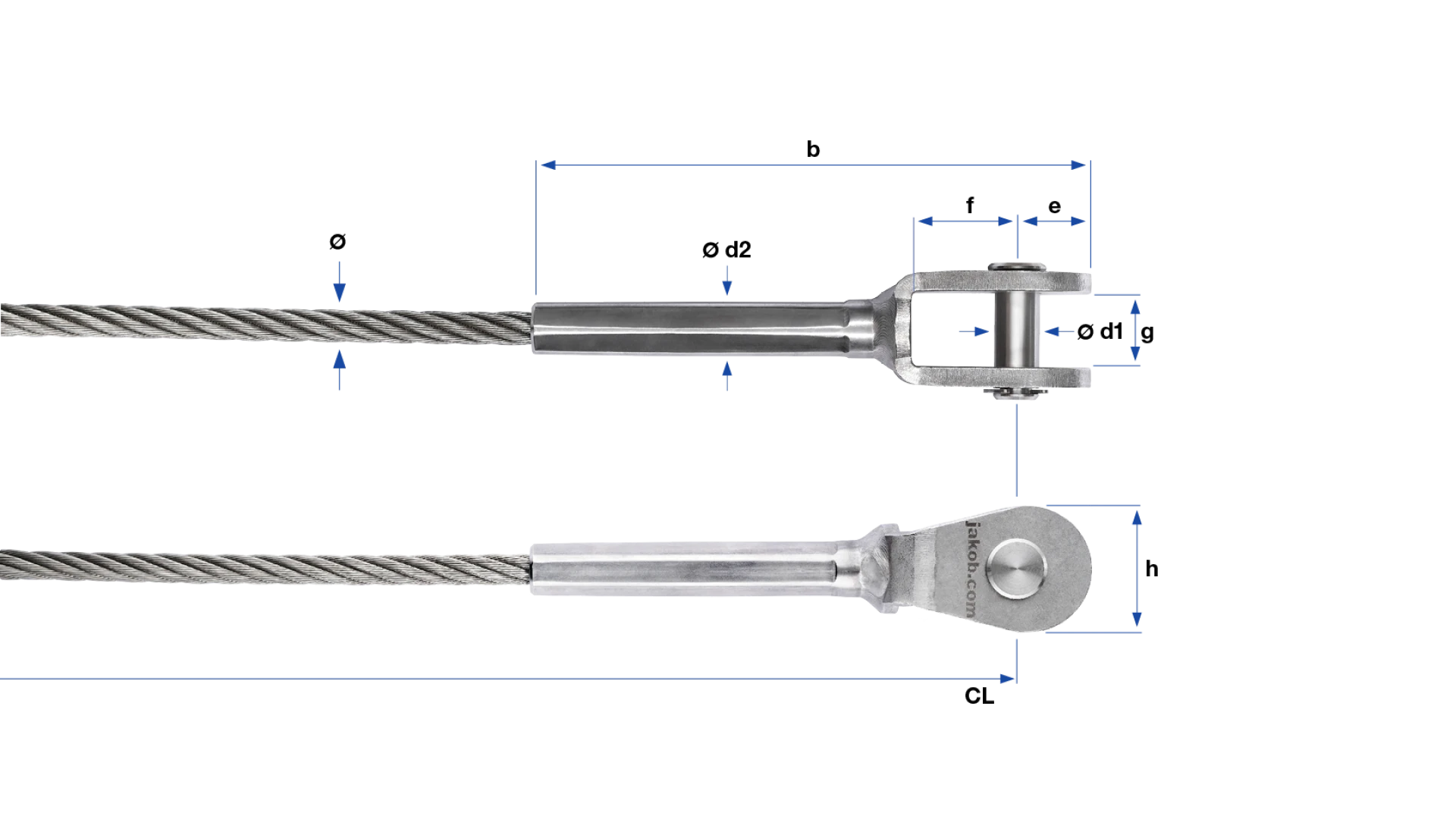

Clevis Classic swaged

제품 라인업 — Clevises · Clevis swaged and self-assembly

Clevis Classic swaged
No. ø b e f g h ø d1 ø d2 F_Rd kN ETA kg
30981-0200 2 40 7 10 8 13 5 5 1.3 0.0160
30981-0300 3 52 7 10 8 13 5 6 2.9 0.0190
30981-0400 4 63 11 15 10 18 7 7 5.2 0.0420
30981-0400-1 4 66 16 13 13 22 8 8 5.2 0.0580
30981-0500 5 75 13 16 13 22 8 8 8.2 0.0590
30981-0600 6 95 15 20 13 25 10 10 11.7 0.1040
30981-0800 8 128 19 24 16 32 12 13 20.9 0.1840
30981-1000 10 170 23 32 22 38 14 18 32.7 0.3790
30981-1200 12 215 30 38 22 50 20 20 47 0.7240
30981-1600 16 263 38 45 28 65 25 27 83.4 1.5200
30981-2000 20 328 45 68 32 74 30 32 117.8 2.9440

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
