Clevis Forte round swaged

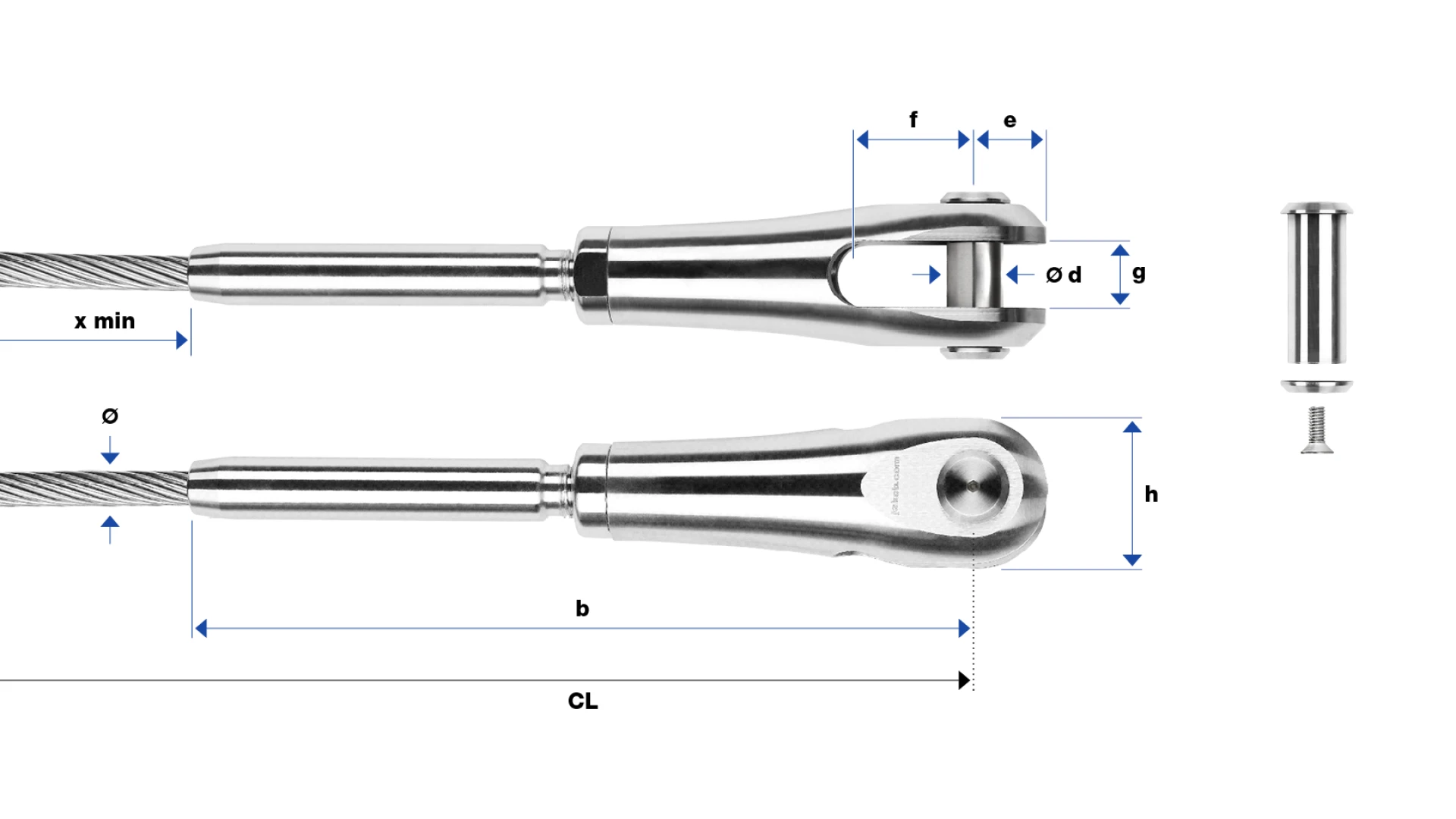

No. ø a b e f g h ø d F_Rd kN ETA x min kg
32881-0800-01 8 M12 174 15 24 14 31 12 30.6 400 0.4300
32881-1000-01 10 M16 218 20 30 18 40 16 47.8 500 0.8440
32881-1200-01 12 M20 268 24 38 22 48 20 69 600 1.5680
32881-1400-01 14 M24 321 29 48 26 58 25 93.9 700 2.6790
32881-1600-01 16 M24 338 29 48 26 58 25 122 800 2.8180
32881-1900-01 19 M30 408 38 60 32 75 32 172 950 5.7090
32881-2200-01 22 M30 437 38 60 32 75 32 231 1100 6.2940
32881-2600-01 26 M36 501 45 65 38 90 36 315 1300 10.3070

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
