Clevis SA self-assembly PHASED-OUT ITEM

제품 라인업 — Clevises · Clevis swaged and self-assembly

Clevis SA self-assembly PHASED-OUT ITEM

No.	ø	b	e	f	g	h	ø d1	ø d2	F_Rd kN ETA	F_Rd kN	kg
30939-0200	2	41	6	12	7.5	12.5	5	5		1.1	0.0170
Further informations Diameter: 2 mm Weight: 0.0170 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30939-0300	3	53	6	12	7.5	12.5	6	5		2.5	0.0200
Further informations Diameter: 3 mm Weight: 0.0200 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30939-0400	4	56	7	13	10	14.5	7	6		4.4	0.0260
Further informations Diameter: 4 mm Weight: 0.0260 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30939-0500	5	70	9	15	11	18	8	8		6.1	0.0480
Further informations Diameter: 5 mm Weight: 0.0480 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30939-0600	6	89	11	19	12	20.5	10	9.5	11.8	8.7	0.1030
Further informations Diameter: 6 mm Weight: 0.1030 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30939-0800	8	125	14	25	14	26	13	12	20.4	17.8	0.1570
Further informations Diameter: 8 mm Weight: 0.1570 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

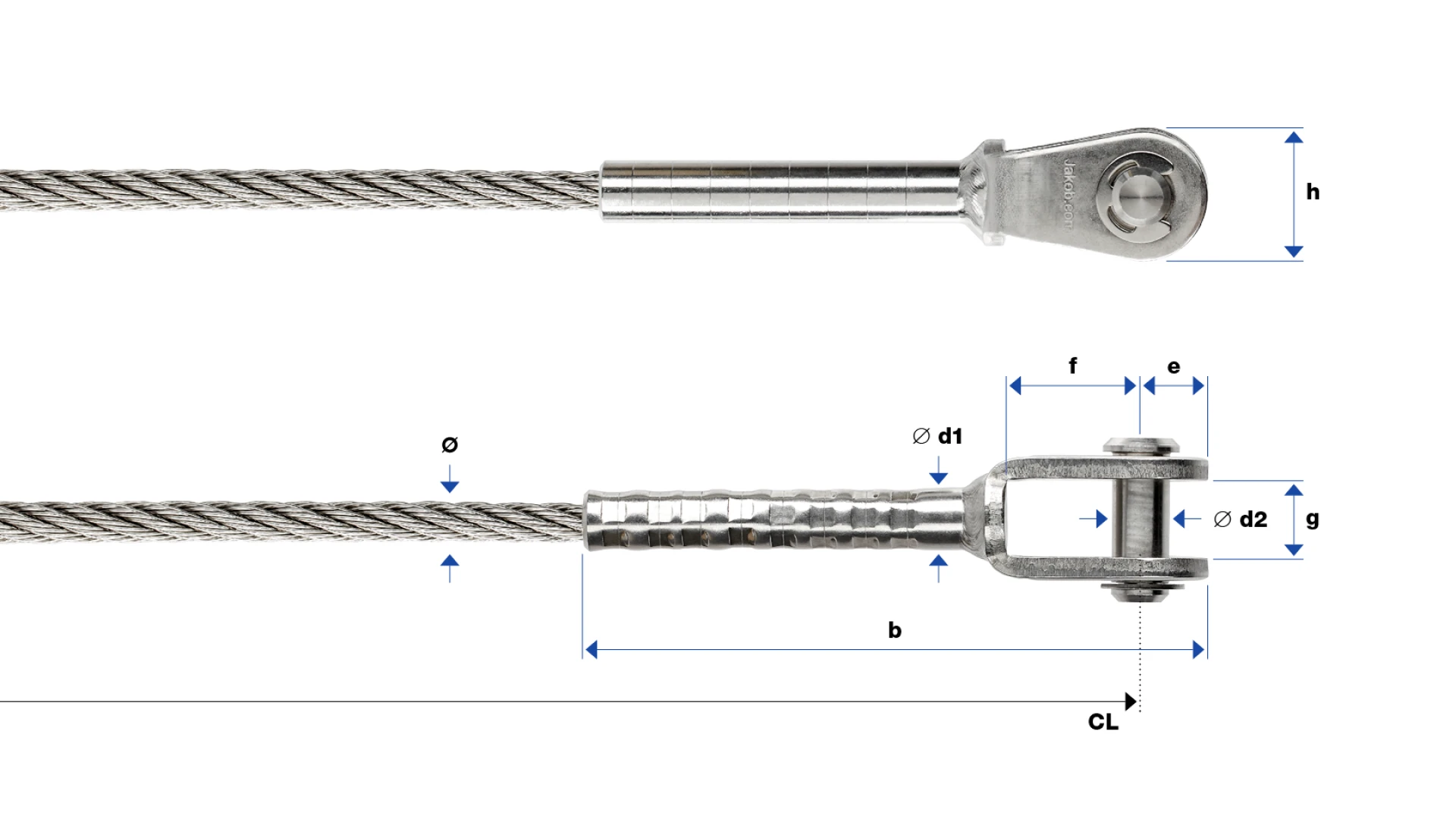

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
