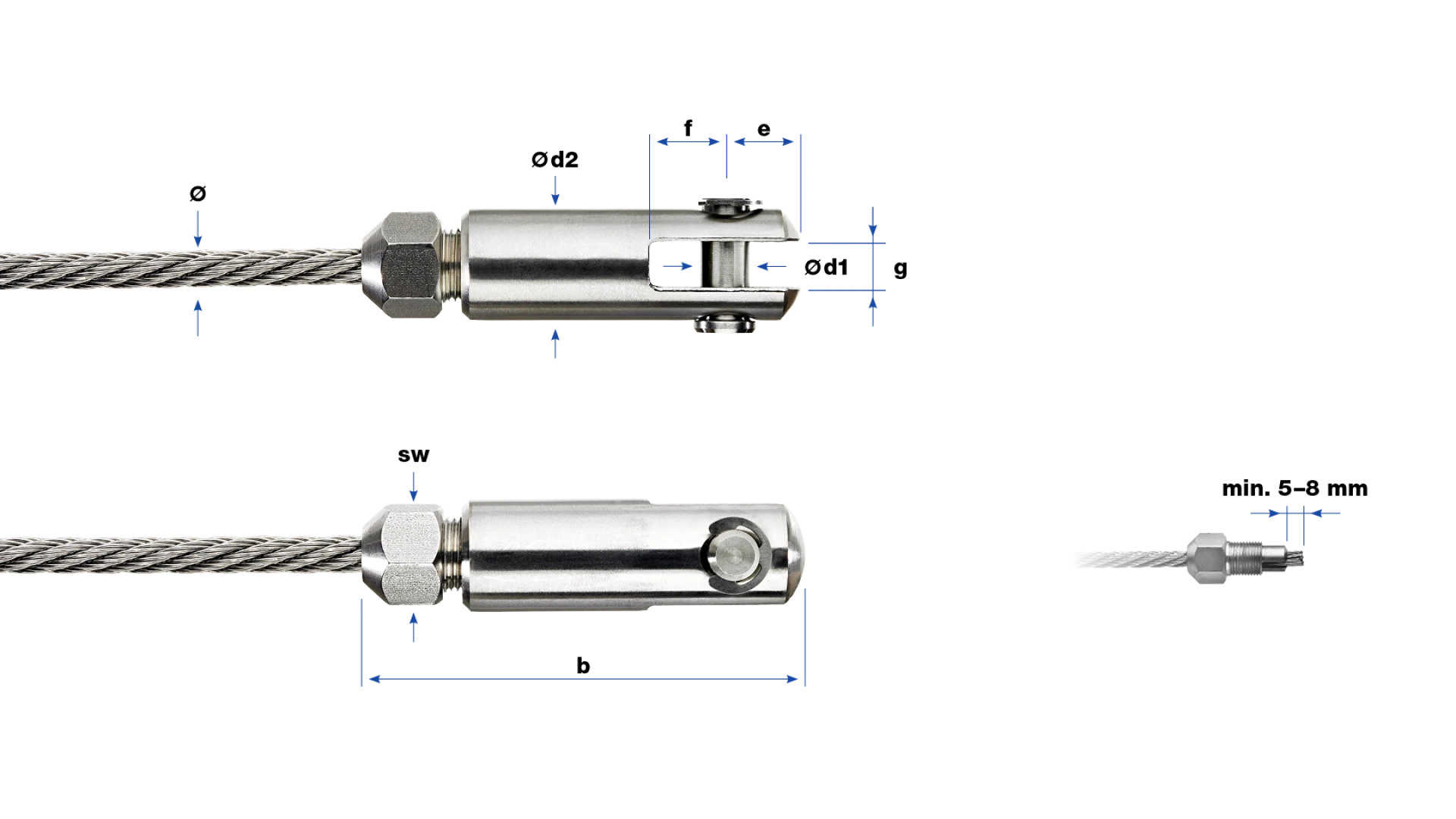

Clevis screwed LT1 self-assembly
No. ø b e f g ø d1 ø d2 sw F_Rd kN kg
30854-0200-01 2 60 9 10 6 6 14 13 1.8 0.0490
30854-0300-01 3 60 9 10 6 6 14 13 3.4 0.0490
30854-0400-01 4 60 9 10 6 6 14 13 6.1 0.0490
30854-0500-01 5 71 12 12.5 7 8 18 15 9.2 0.0960
30854-0600-01 6 71 12 12.5 7 8 18 15 11.4 0.0950
30854-0800-01 8 106 17 18 10 12 26 22 22.8 0.2900
30854-1000-01 10 137 22 22 12 16 34 30 31.3 0.6700
30854-1200-01 12 162 27 27 15 20 42 36 45 1.2300
30854-1600-01 16 198 34 34 18 22 52 46 79.8 2.2400

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
