제품 라인업 — Clevises · Clevis swaged and self-assembly
| No. | ø | b | e | f | g | h | ø d1 | WLL kN | kg | |
|---|---|---|---|---|---|---|---|---|---|---|
| 30881-0400-01 | 4 | 36 | 6 | 12 | 7.5 | 12.5 | 5 | 0.0330 | ||
Further informations
Price basis / tiered pricesPrice on request |
||||||||||
| 30881-0500-01 | 5 | 39 | 6 | 12 | 7.5 | 12.5 | 5 | 5.3 | 0.0330 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||
| 30881-0600-01 | 6 | 46 | 7 | 13 | 10 | 14.5 | 6 | 9.8 | 0.0330 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||
| 30881-0800-01 | 8 | 56 | 9 | 15 | 11 | 18 | 8 | 15 | 0.0330 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||

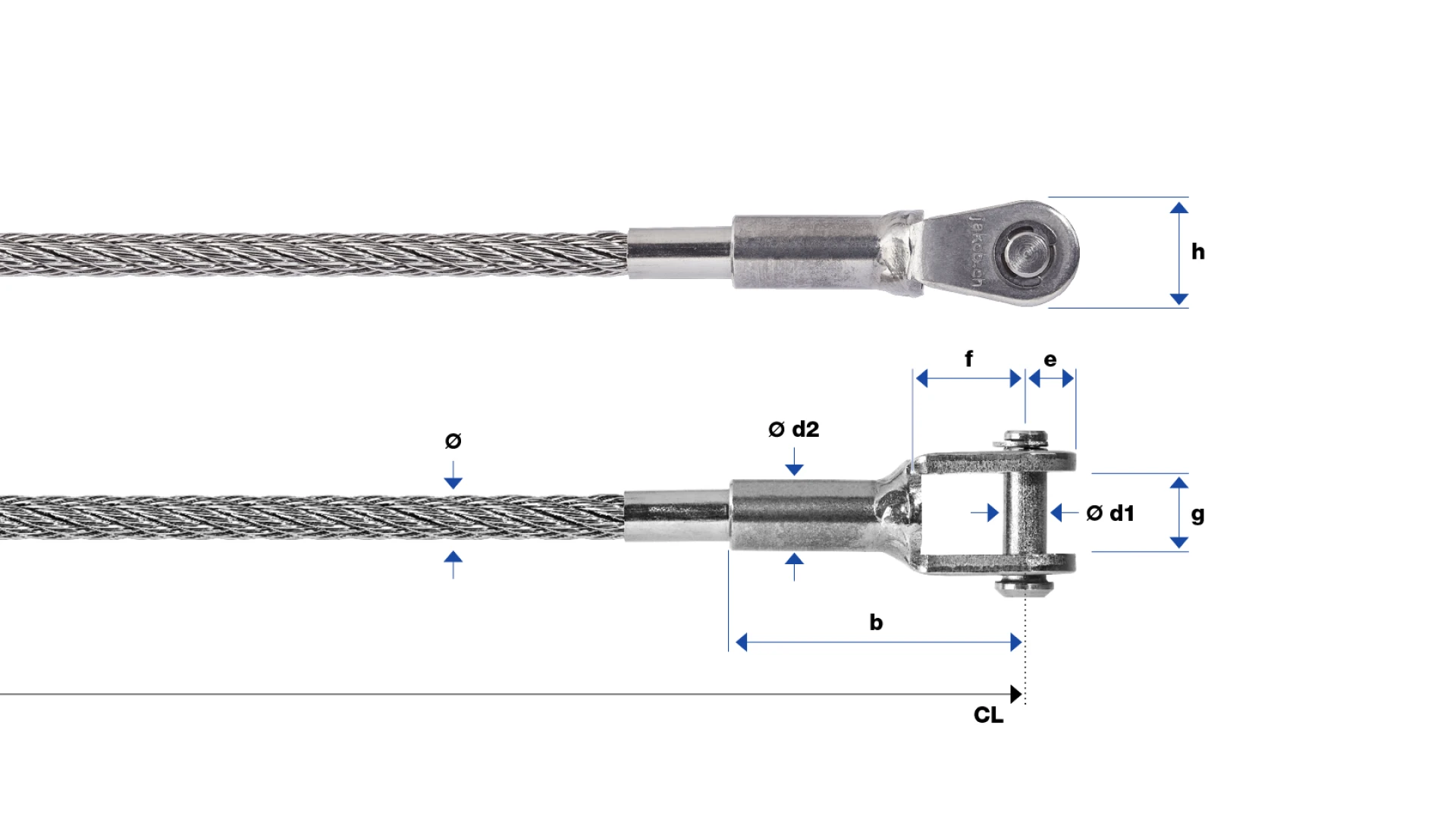

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
