Clevis and internal thread end swivel swaged PHASED-OUT ITEM

제품 라인업 — Clevises · Clevis with internal thread swaged

Clevis and internal thread end swivel swaged PHASED-OUT ITEM
No. ø a b e f g h ø d1 ø d2 sw - + kg
30823-0300-01 3 M5 122 6 12 7.5 12.5 5 10 8 10 3 0.0580
30823-0300-02 3 M5 139 6 12 7.5 12.5 5 10 8 15 13 0.0650
30823-0400-01 4 M6 121 6 12 7.5 12.5 5 10 8 8 3 0.0540
30823-0400-02 4 M6 146 6 12 7.5 12.5 5 10 8 15 11 0.0630
30823-0500-01 5 M6 143 6 12 7.5 12.5 5 13 11 8 3 0.0950
30823-0500-02 5 M6 167 6 12 7.5 12.5 5 13 11 15 11 0.1060
30823-0600-01 6 M8 152 7 13 10 14.5 6 13 11 10 3 0.1070
30823-0600-02 6 M8 189 7 13 10 14.5 6 13 11 25 13 0.1240

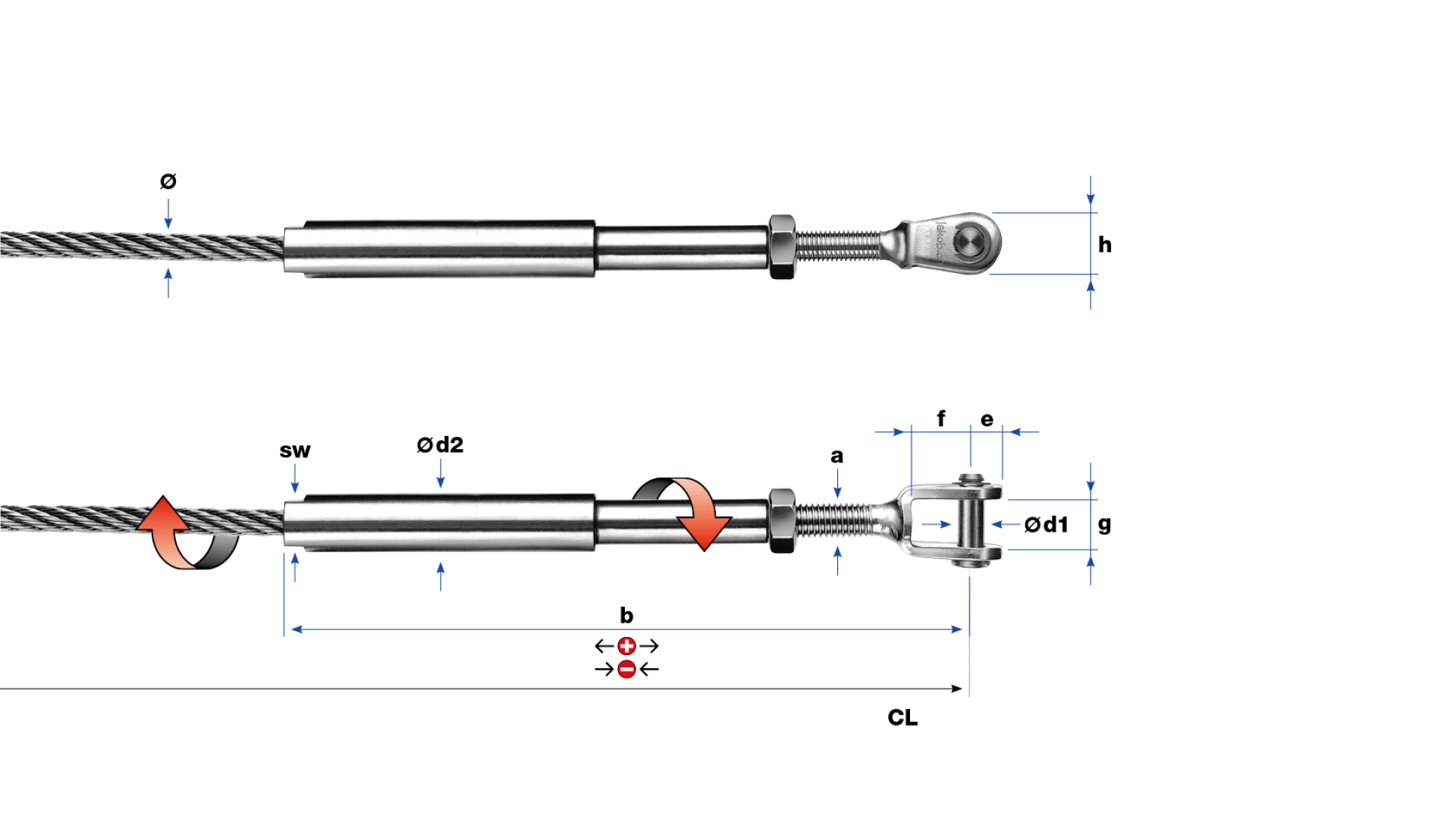

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
