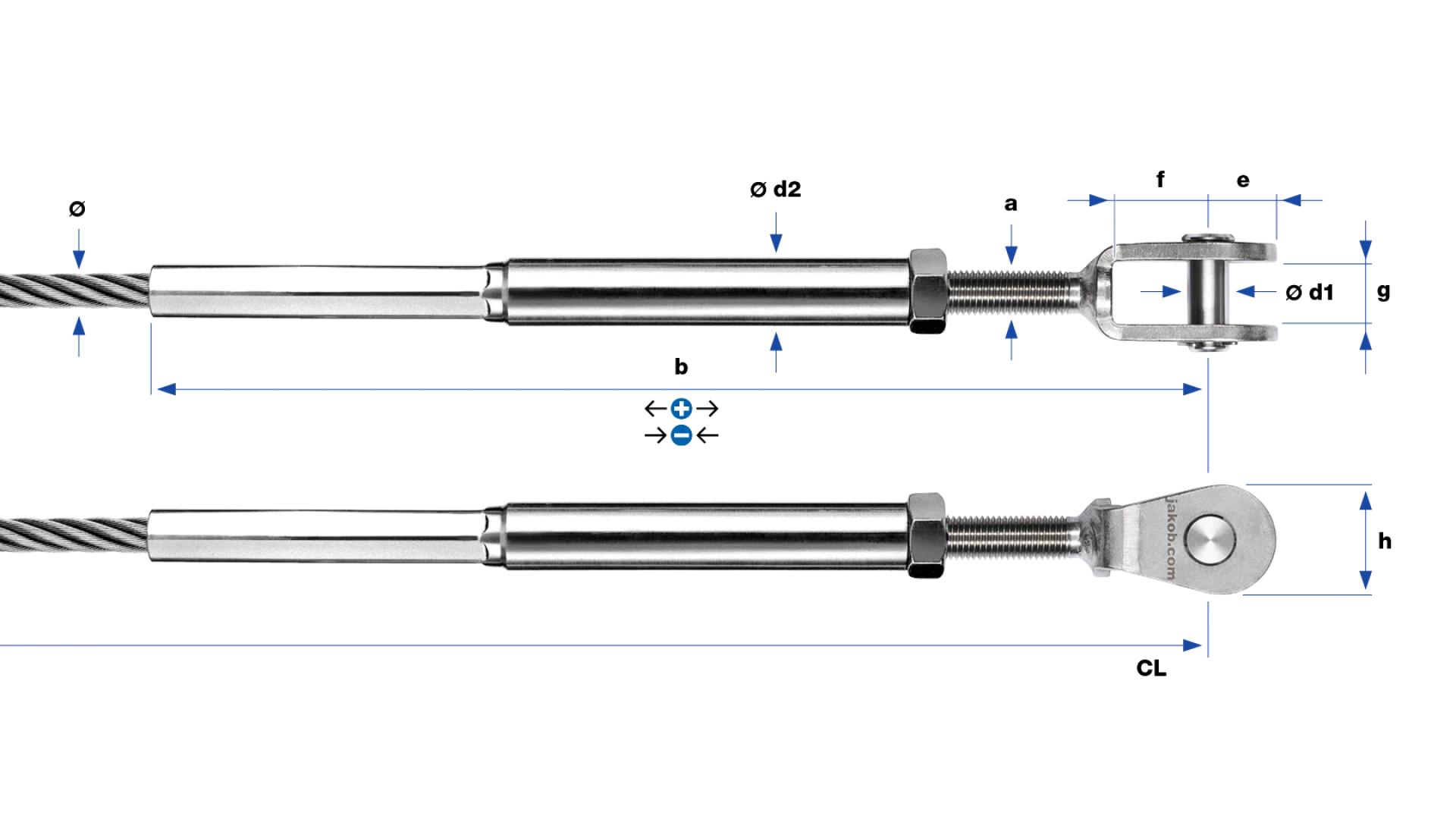

Clevis Classic and internal thread-end left-hand swaged for rope Ø 3 - 8 mm

제품 라인업 — Clevises · Clevis with internal thread swaged

Clevis Classic and internal thread-end left-hand swaged for rope Ø 3 - 8 mm
No. ø a b e f g h ø d1 ø d2 F_Rd kN ETA - + kg
30931-0300-01 3 M5 90 7 10 8 13 5 7 8 5 0.0330
30931-0300-02 3 M5 108 7 10 8 13 5 7 15 13 0.0370
30931-0400-01 4 M6 93 7 10 8 13 5 8 5.2 8 3 0.0400
30931-0400-02 4 M6 118 7 10 8 13 5 8 5.2 15 11 0.0480
30931-0500-01 5 M6 101 7 10 8 13 5 8 8.1 8 3 0.0400
30931-0500-02 5 M6 126 7 10 8 13 5 8 8.1 15 11 0.0480
30931-0600-01 6 M8 129 13 16 13 22 8 10 11.6 10 3 0.1020
30931-0600-02 6 M8 166 13 16 13 22 8 10 11.6 25 13 0.1190
30931-0800-01 8 M10 210 15 20 13 25 10 13 30 10 0.2260

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
