Clevis Classic and internal thread-end right-hand swaged for rope Ø 3 - 8 mm

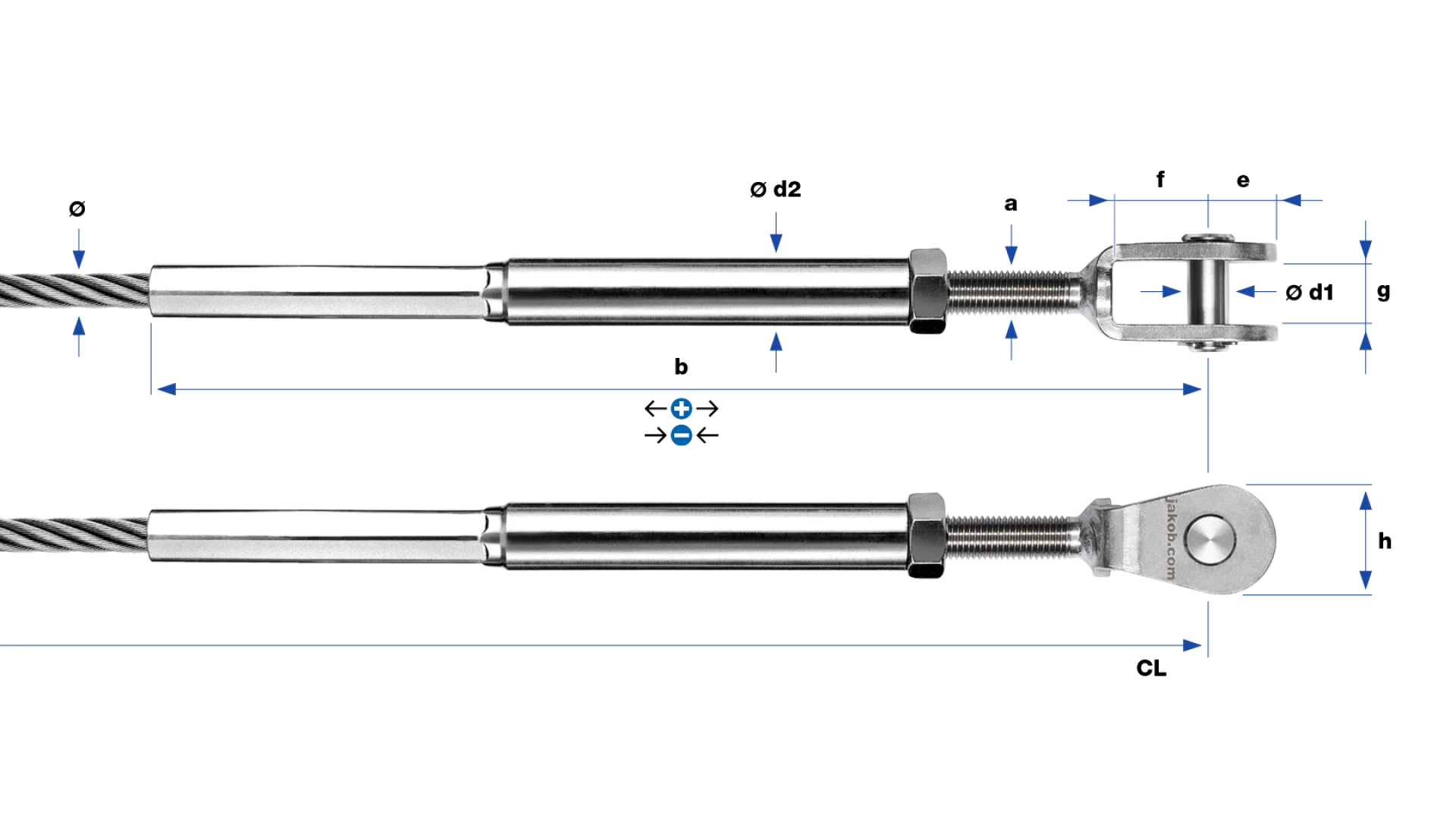

No. ø a b e f g h ø d1 ø d2 F_Rd kN ETA - + kg
30932-0300-01 3 M5 90 7 10 8 13 5 7 8 5 0.0330
30932-0300-02 3 M5 108 7 10 8 13 5 7 15 13 0.0370
30932-0400-01 4 M6 93 7 10 8 13 5 8 5.2 8 3 0.0400
30932-0400-02 4 M6 118 7 10 8 13 5 8 5.2 15 11 0.0480
30932-0500-01 5 M6 101 7 10 8 13 5 8 8.1 8 3 0.0400
30932-0500-02 5 M6 126 7 10 8 13 5 8 8.1 15 11 0.0480
30932-0600-01 6 M8 129 13 16 13 22 8 10 11.6 10 3 0.1020
30932-0600-02 6 M8 166 13 16 13 22 8 10 11.6 25 13 0.1190
30932-0800-01 8 M10 210 15 20 13 25 10 13 20.7 30 10 0.2260
