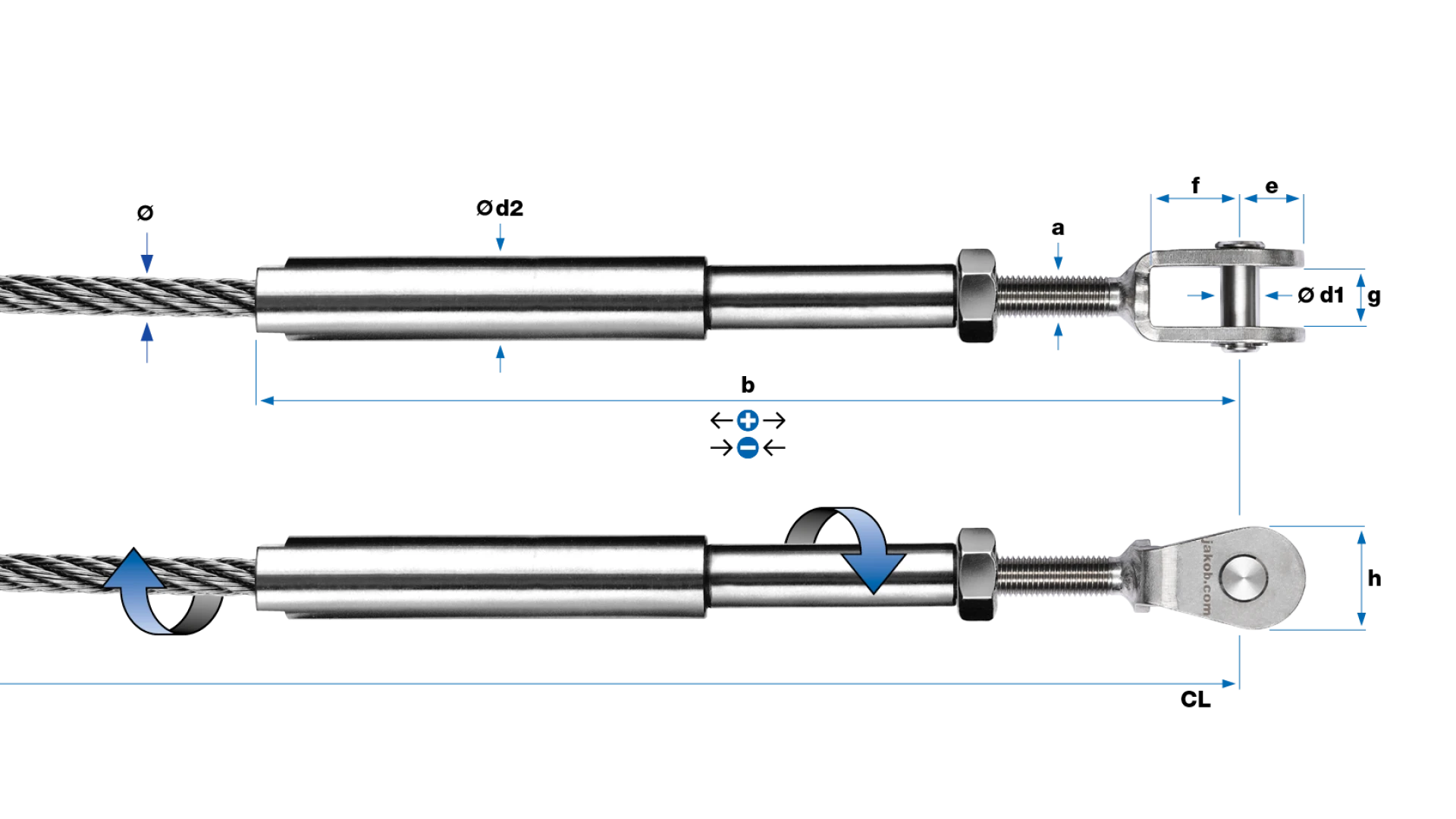

Clevis Classic and internal thread end swivel swaged

제품 라인업 — Clevises · Clevis with internal thread swaged

Clevis Classic and internal thread end swivel swaged
No. ø a b e f g h ø d1 ø d2 - + kg
30934-0300-01 3 M5 120 7 10 8 13 5 10 10 3 0.0580
30934-0300-02 3 M5 137 7 10 8 13 5 10 15 13 0.0650
30934-0400-01 4 M6 119 7 10 8 13 5 10 8 3 0.0540
30934-0400-02 4 M6 144 7 10 8 13 5 10 15 11 0.0630
30934-0500-01 5 M6 141 7 10 8 13 5 13 8 3 0.0950
30934-0500-02 5 M6 165 7 10 8 13 5 13 15 11 0.1060
30934-0600-01 6 M8 156 13 16 13 22 8 13 8 3 0.1070
30934-0600-02 6 M8 193 13 16 13 22 8 13 25 13 0.1240

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
