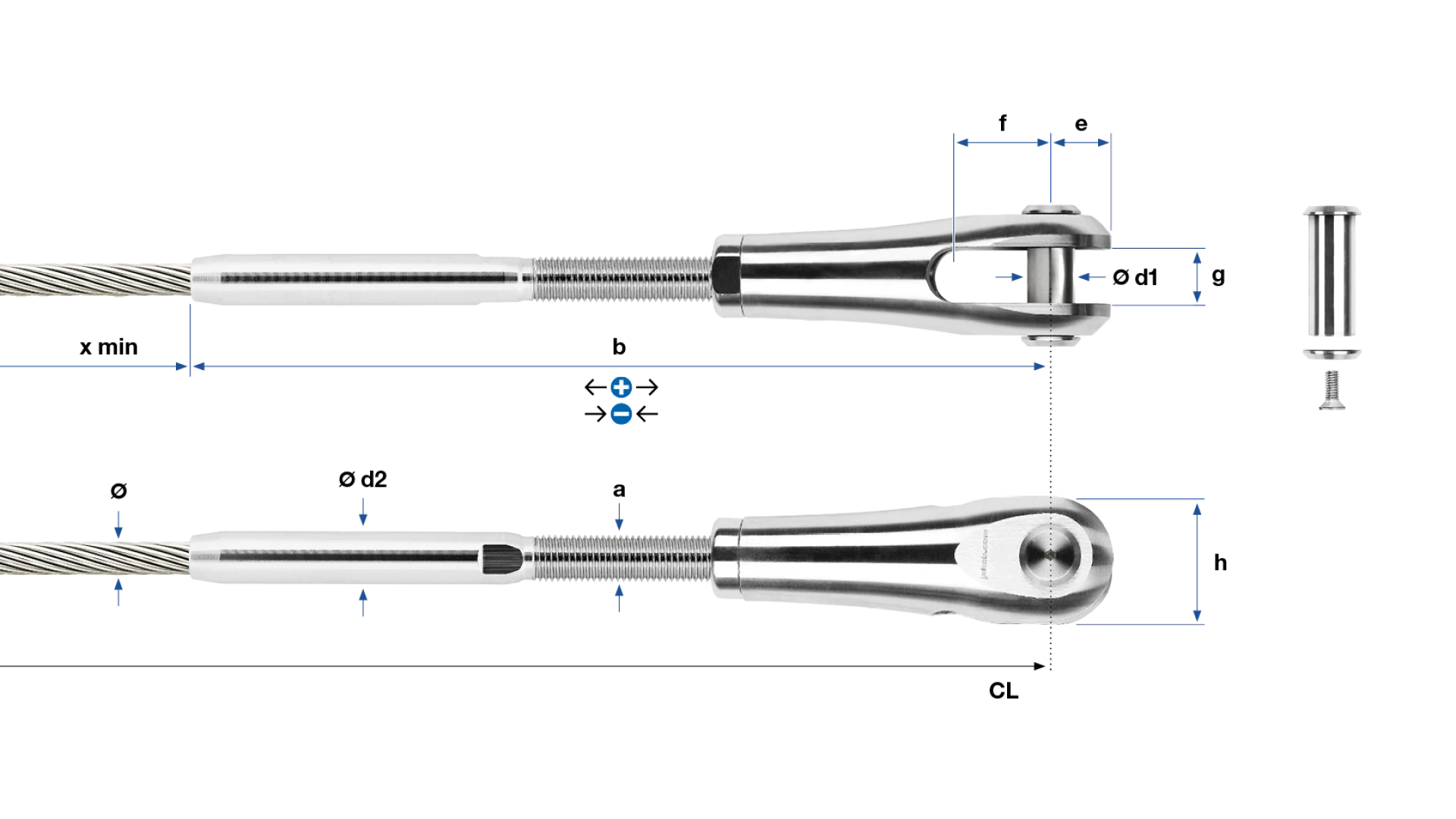

Clevis Forte with external thread left-hand assembled

제품 라인업 — Clevises · Clevis with internal thread swaged

Clevis Forte with external thread left-hand assembled
No. ø a b e f g h ø d1 ø d2 F_Rd kN ETA - + x min kg
32811-0800-01 8 M12 227 15 24 14 31 12 16 30.6 21 11 400 0.4970
32811-1000-01 10 M16 272 20 30 18 40 16 18 47.8 28 12 500 0.9750
32811-1200-01 12 M20 317 24 38 22 48 20 21 69 33 16 600 1.7680
32811-1400-01 14 M24 386 29 48 26 58 25 25 93.9 43 22 700 3.0300
32811-1600-01 16 M24 404 29 48 26 58 25 28 122.4 43 22 800 3.1800
32811-1900-01 19 M30 489 38 60 32 75 32 35 172.8 51 25 950 6.5230
32811-2200-01 22 M30 517 38 60 32 75 32 40 230.2 51 25 1100 7.0770
32811-2600-01 26 M36 570 45 65 38 90 36 46 315.5 55 33 1300 11.3310

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
