Clevis Classic with external thread right-hand

제품 라인업 — Clevises · Clevis with thread

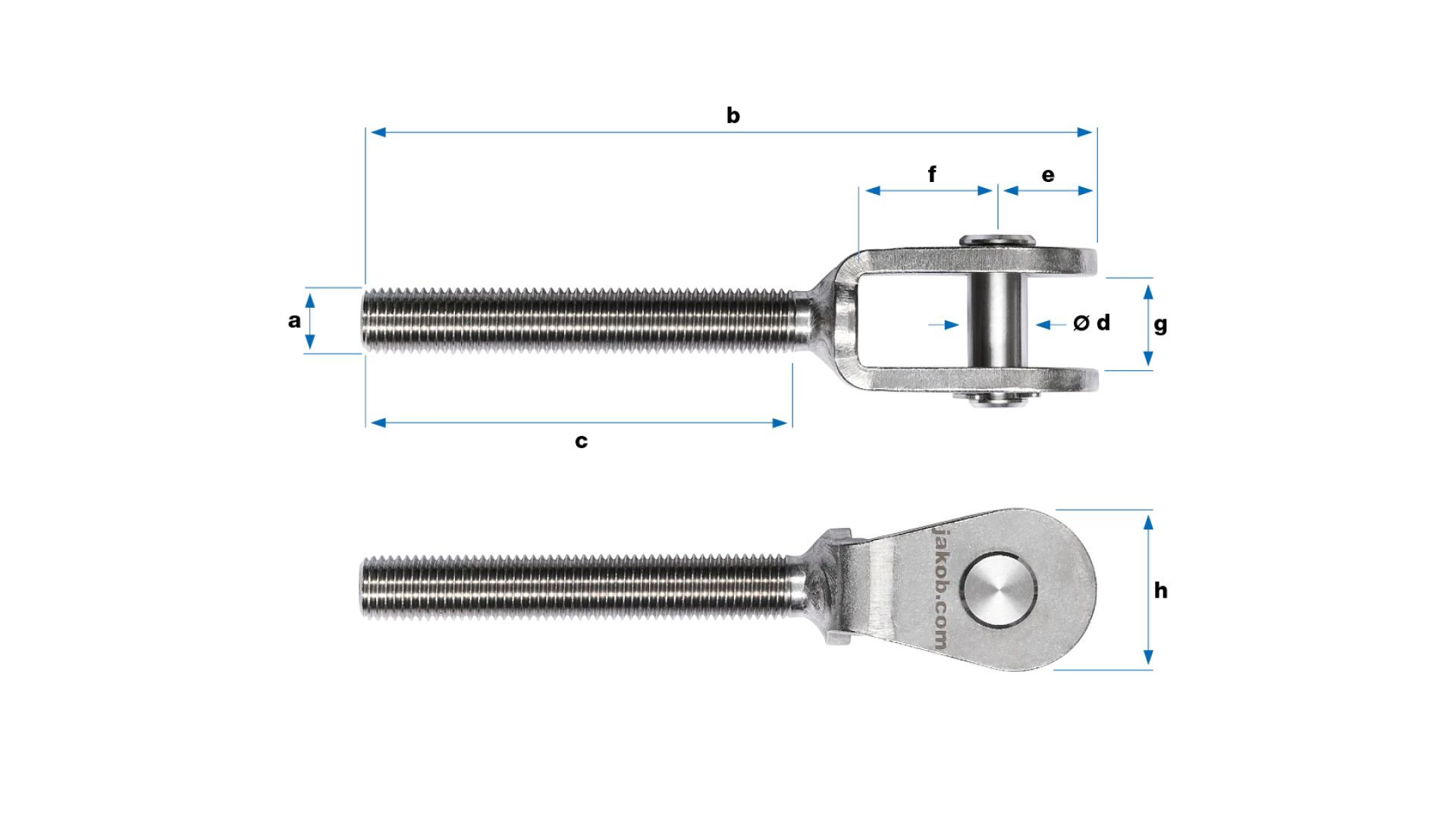

Clevis Classic with external thread right-hand
No. a b c e f g h ø d F_Rd kN ETA kg
30971-0500 M5 65 41 7 10 8 13 5 6.1 0.0200
30971-0600 M6 72 47 7 10 8 13 5 8.7 0.0250
30971-0601 M6 82 47 11 15 10 18 7 8.7 0.0400
30971-0800 M8 96 57 13 16 13 22 8 15.8 0.0730
30971-1000 M10 110 63 15 20 13 25 10 25.1 0.1250
30971-1200 M12 135 80 19 24 16 32 12 34.6 0.2080
30971-1600 M16 171 100 23 32 22 38 14 64.4 0.4050
30971-2000 M20 214 120 30 38 22 50 20 100.5 0.8410
30971-2400 M24 231 120 38 45 28 65 25 144.9 1.4850
30971-3000 M30 293 150 45 68 32 74 30 230.2 3.0700

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
