Clevis Forte with internal thread left-hand

제품 라인업 — Clevises · Clevis with thread

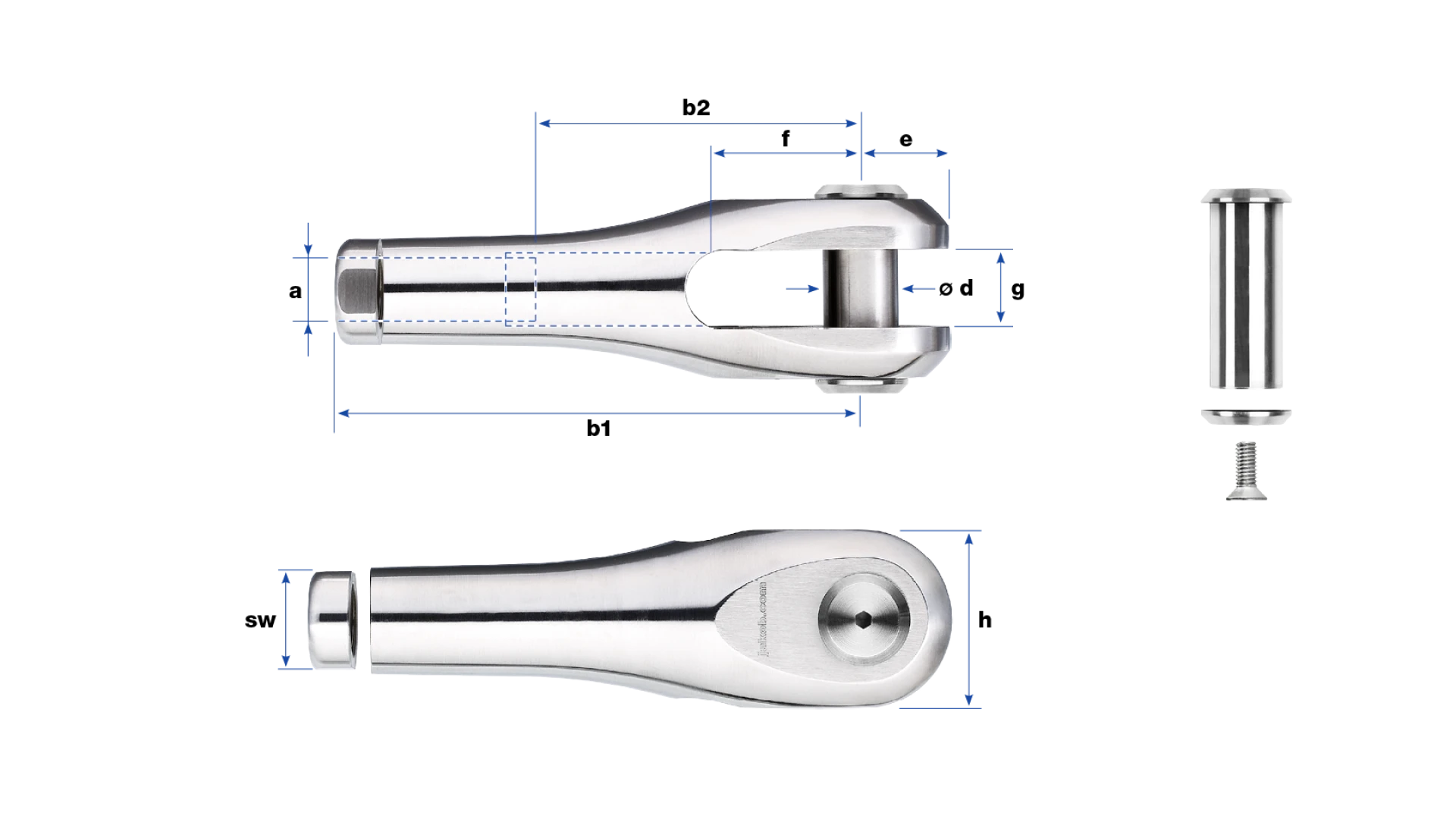

Clevis Forte with internal thread left-hand
No. a b1 b2 e f g h ø d sw F_Rd kN ETA F_Rd kN kg
32818-0800-01 M8 54 -29 11 12 9 20 8 13 15.8 22.3 0.0800
32818-1000-01 M10 68 -38 13 17 11 25 10 17 25.1 28.6 0.1610
32818-1200-01 M12 88 -52 15 24 14 31 12 19 34.6 52.6 0.3020
32818-1600-01 M16 112 -65 20 30 18 40 16 25 64.4 110 0.6460
32818-2000-01 M20 140 -81 24 38 22 48 20 30 100.5 171 1.2000
32818-2400-01 M24 174 -103 29 47 26 58 25 35 144.9 221 2.1580
32818-3000-01 M30 211 -125 38 60 32 75 32 45 230.2 303 4.4440
32818-3600-01 M36 255 -148 45 65 38 90 36 52 335.3 476 7.7240

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
