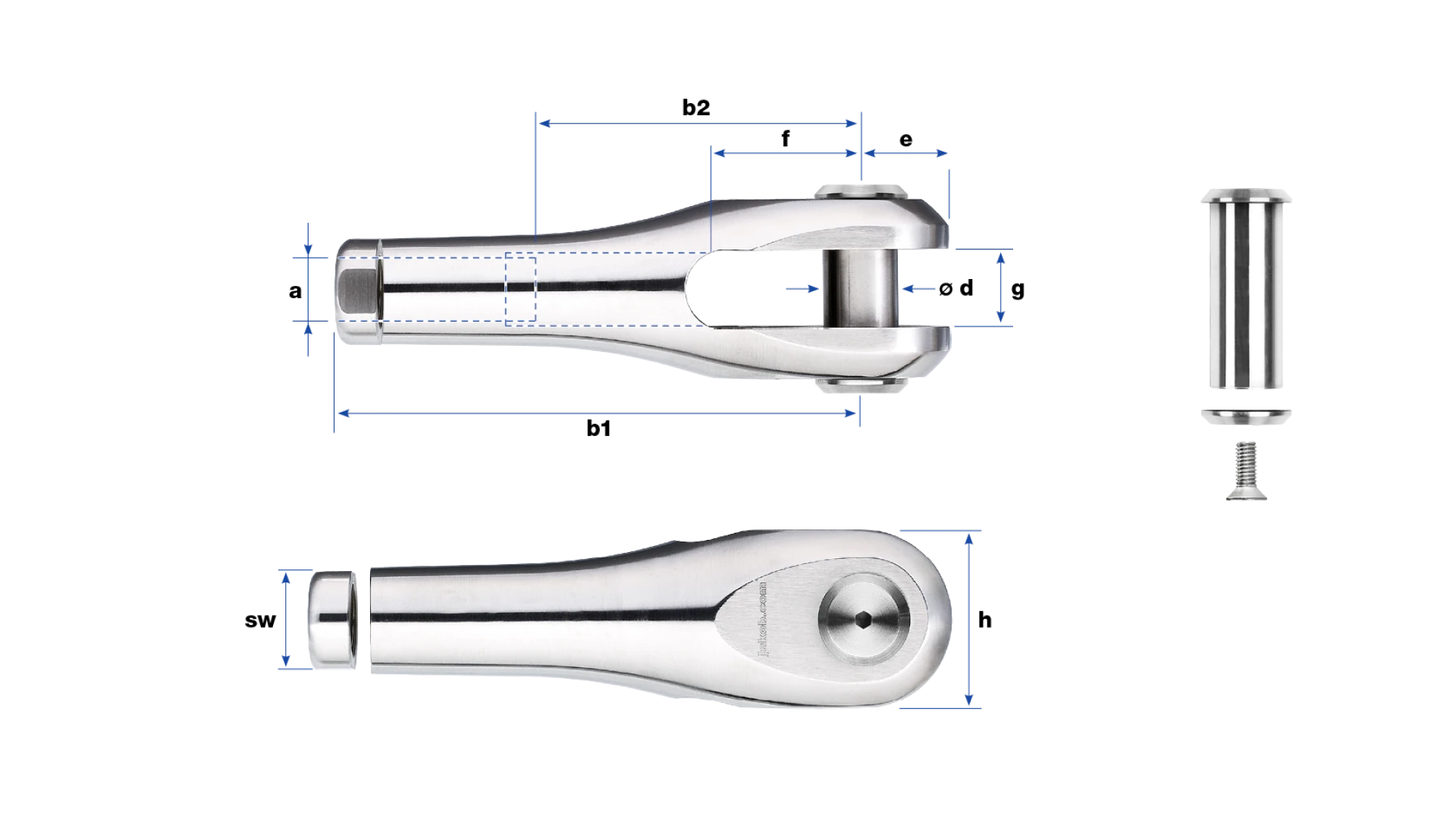

Clevis Forte with internal thread right-hand

제품 라인업 — Clevises · Clevis with thread

Clevis Forte with internal thread right-hand
No. a b1 b2 e f g h ø d sw F_Rd kN ETA F_Rd kN kg
32817-0800-01 M8 54 -29 11 12 9 20 8 13 15.8 22.3 0.0800
32817-1000-01 M10 68 -38 13 17 11 25 10 17 25.1 28.6 0.1610
32817-1200-01 M12 88 -52 15 24 14 31 12 19 34.6 52.6 0.3180
32817-1600-01 M16 112 -65 20 30 18 40 16 25 64.4 110 0.6920
32817-2000-01 M20 140 -81 24 38 22 48 20 30 100.5 171 1.2420
32817-2400-01 M24 174 -103 29 47 26 58 25 35 144.9 221 2.1850
32817-3000-01 M30 211 -125 38 60 32 75 32 45 230.2 303 4.6530
32817-3600-01 M36 255 -148 45 65 38 90 36 52 335.3 476 7.7240

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
