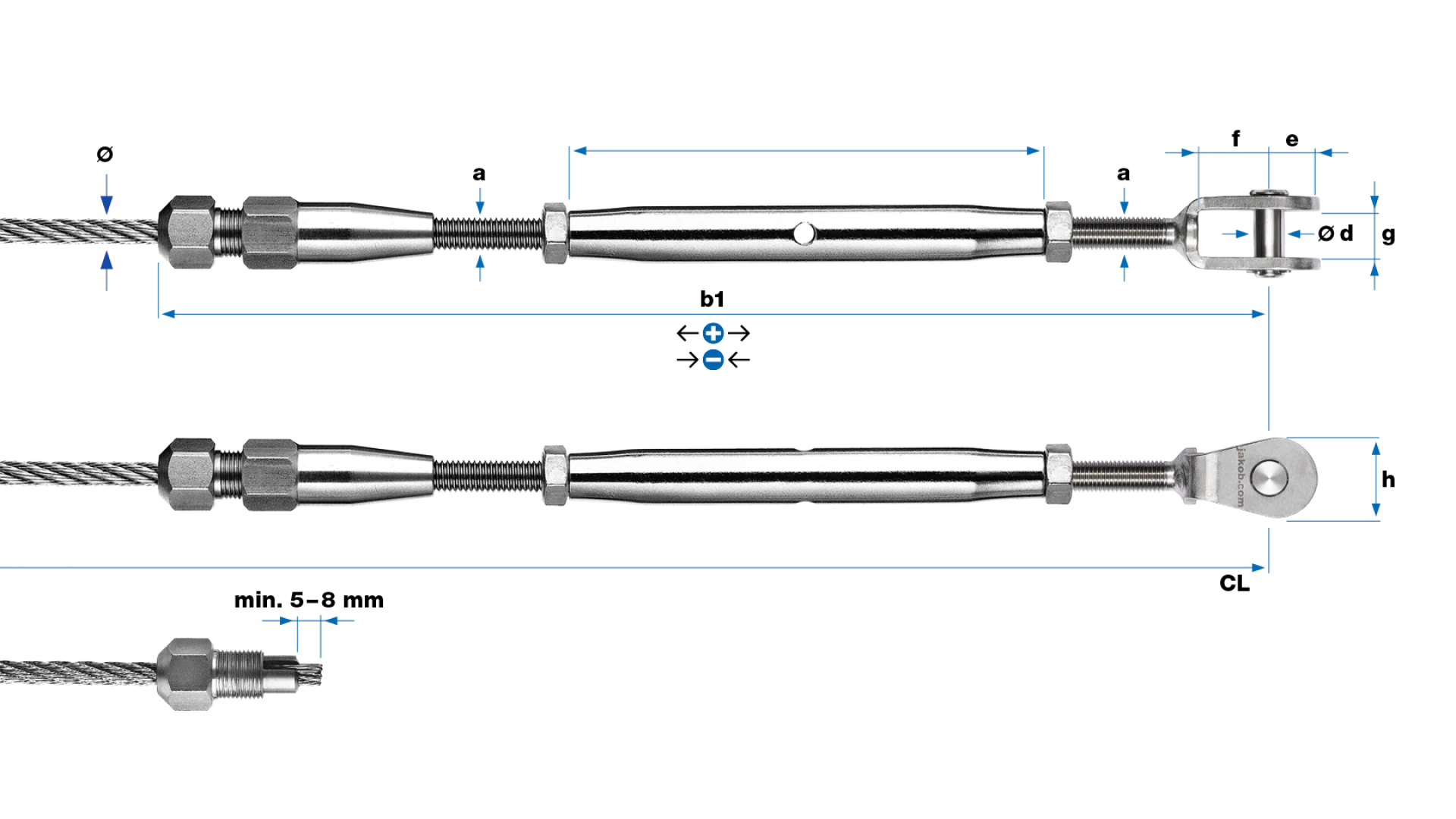

Turnbuckle with clevis Classic LT1 self-assembly
No. ø a b1 b2 e f g h ø d F_Rd kN ETA - + kg
30933-0200 2 M6 235 92 7 10 8 13 5 44 22 0.1030
30933-0300 3 M6 235 92 7 10 8 13 5 44 22 0.1030
30933-0400 4 M6 252 92 11 15 10 18 5 5.2 44 22 0.1180
30933-0500 5 M8 267 112 13 16 13 22 8 7.6 52 26 0.1840
30933-0600 6 M8 267 112 13 16 13 22 8 10.4 52 26 0.1840
30933-0600-10 6 M10 278 120 15 20 13 25 10 10.4 44 30 0.3430
30933-0800 8 M12 354 150 19 24 16 32 12 19.8 60 44 0.6790
30933-0800-10 8 M10 303 120 15 20 13 25 10 19.8 44 30 0.4670
30933-1000 10 M16 445 190 23 32 22 38 14 29.2 64 42 1.3540
30933-1200 12 M20 530 220 30 38 22 50 20 43.5 58 50 2.5660
30933-1600 16 M24 559 212 38 45 28 65 25 78 92 49 5.0670

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
