제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly

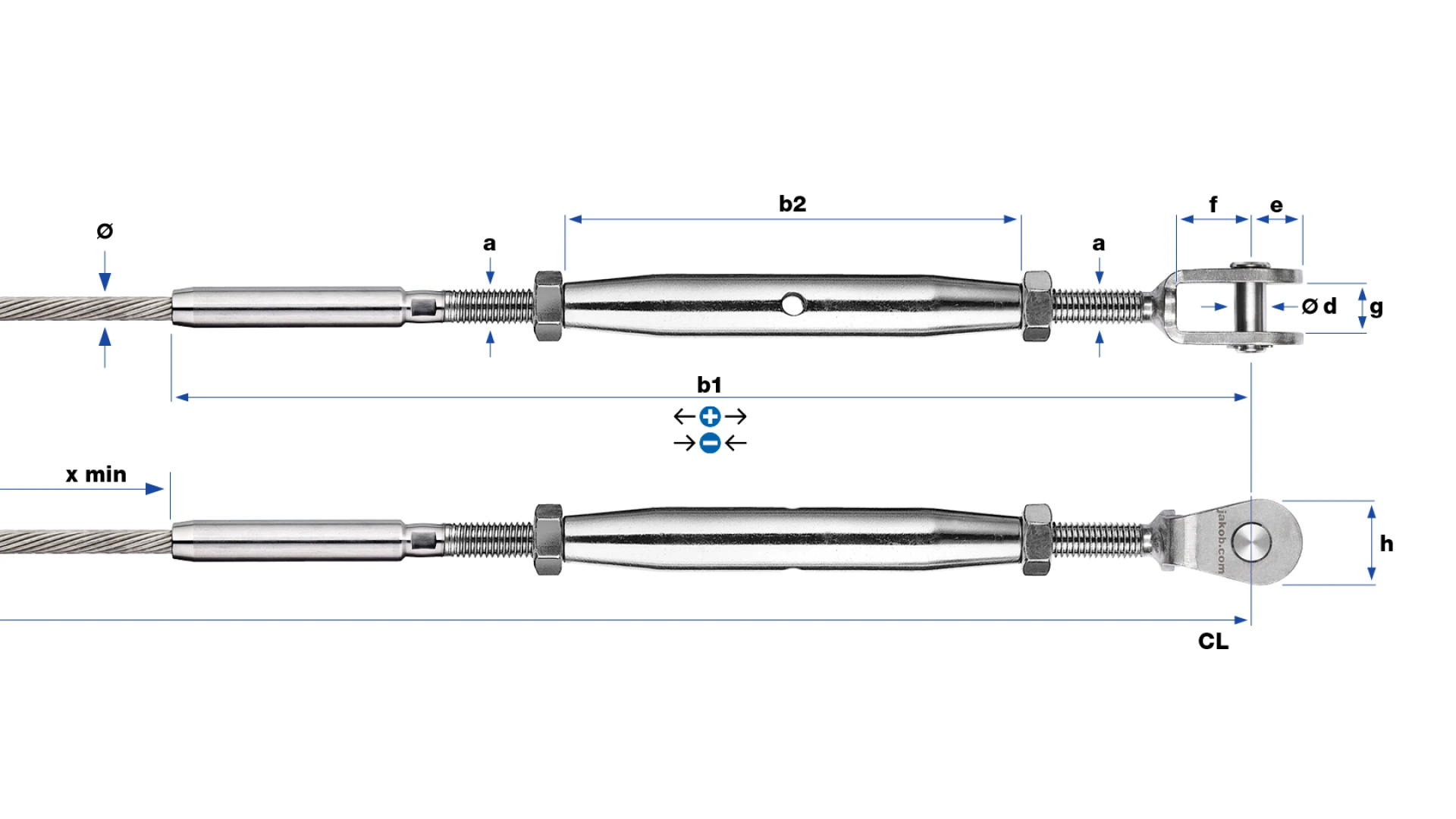

| No. | ø | a | b1 | b2 | e | f | g | h | ø d | - | + | x min | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30970-0800-03 | 8 | M12 | 371 | 150 | 19 | 24 | 16 | 32 | 12 | 70 | 34 | 400 | 0.5100 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-1000-03 | 10 | M16 | 453 | 190 | 23 | 32 | 22 | 38 | 14 | 64 | 42 | 500 | 0.9600 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
