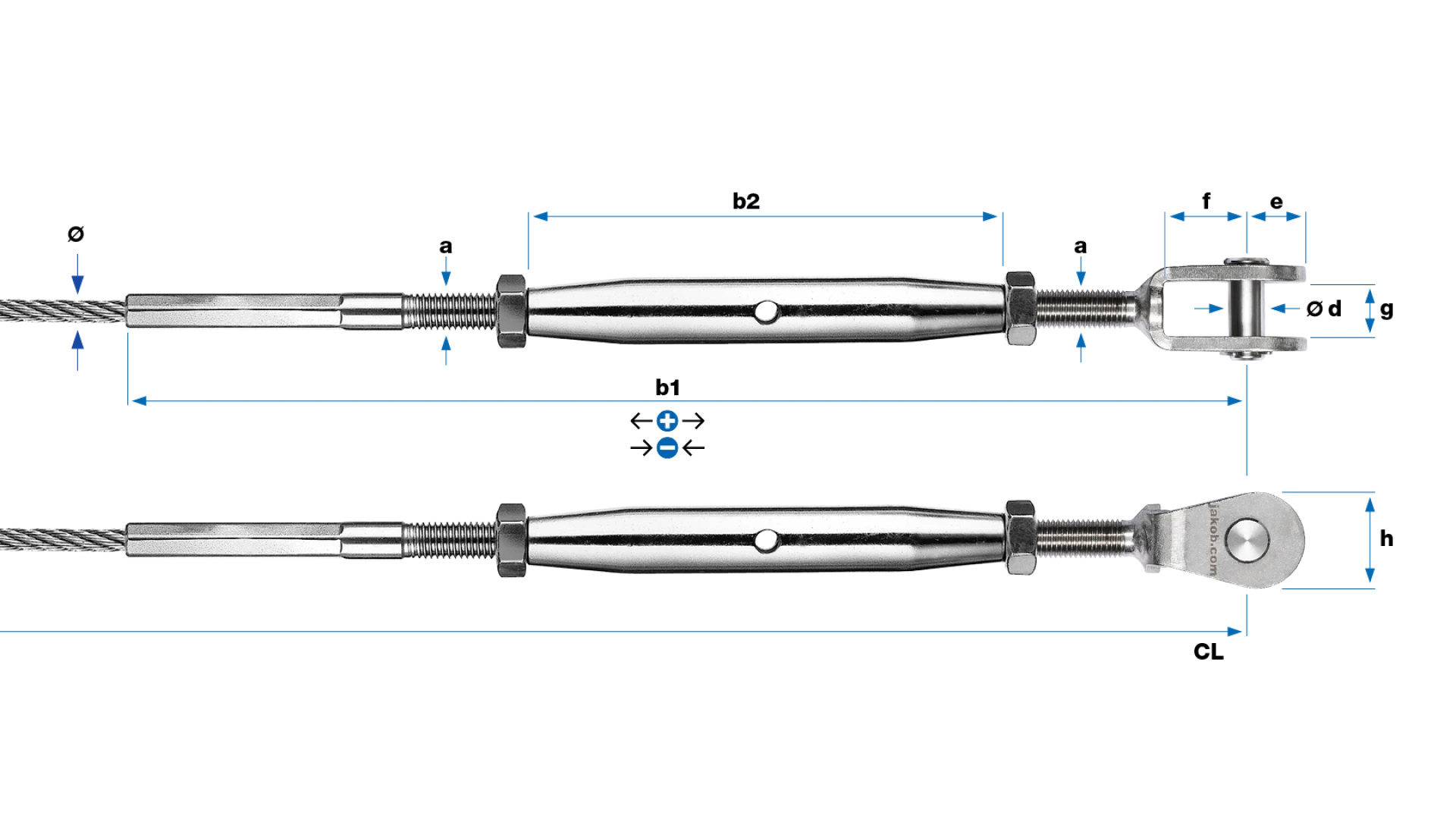

제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly
| No. | ø | a | b1 | b2 | e | f | g | h | ø d | F_Rd kN ETA | - | + | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30970-0200 | 2 | M5 | 176 | 80 | 7 | 10 | 8 | 13 | 5 | 1.2 | 34 | 26 | 0.0480 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0300 | 3 | M6 | 205 | 92 | 7 | 10 | 8 | 13 | 5 | 2.7 | 44 | 22 | 0.0750 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0400 | 4 | M6 | 215 | 92 | 11 | 15 | 10 | 18 | 7 | 4.8 | 44 | 22 | 0.0990 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0400-1 | 4 | M8 | 237 | 112 | 13 | 16 | 13 | 22 | 8 | 4.8 | 52 | 26 | 0.1840 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0500 | 5 | M8 | 243 | 112 | 13 | 16 | 13 | 22 | 8 | 7.5 | 51 | 26 | 0.1830 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0600 | 6 | M10 | 275 | 120 | 15 | 20 | 13 | 25 | 10 | 10.9 | 54 | 20 | 0.2800 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-0800 | 8 | M12 | 353 | 150 | 19 | 24 | 16 | 32 | 12 | 19.3 | 70 | 34 | 0.5390 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-1000 | 10 | M16 | 458 | 190 | 23 | 32 | 22 | 38 | 14 | 30.2 | 84 | 42 | 1.1150 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30970-1200 | 12 | M20 | 549 | 220 | 30 | 38 | 22 | 50 | 20 | 43.5 | 98 | 50 | 2.0470 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
