Turnbuckle with clevis Classic Vissline round swaged
No. ø a b1 b2 e f g h ø d F_Rd kN ETA - + kg
30970-0400-15 4 M5 139 80 7 10 8 13 5 22 16 0.0352
30970-0400-16 4 M5 160 80 7 10 8 13 5 34 26 0.0382
30970-0500-15 5 M6 152 92 7 10 8 13 5 20 12 0.0770
30970-0500-16 5 M6 179 92 7 10 8 13 5 44 22 0.0850
30970-0600-15 6 M8 188 112 13 16 13 22 8 12 17 6 0.1500
30970-0600-16 6 M8 220 112 13 16 13 22 8 12 51 26 0.1500
30970-0800-15 8 M10 240 120 15 20 13 25 10 24.1 54 20 0.2830

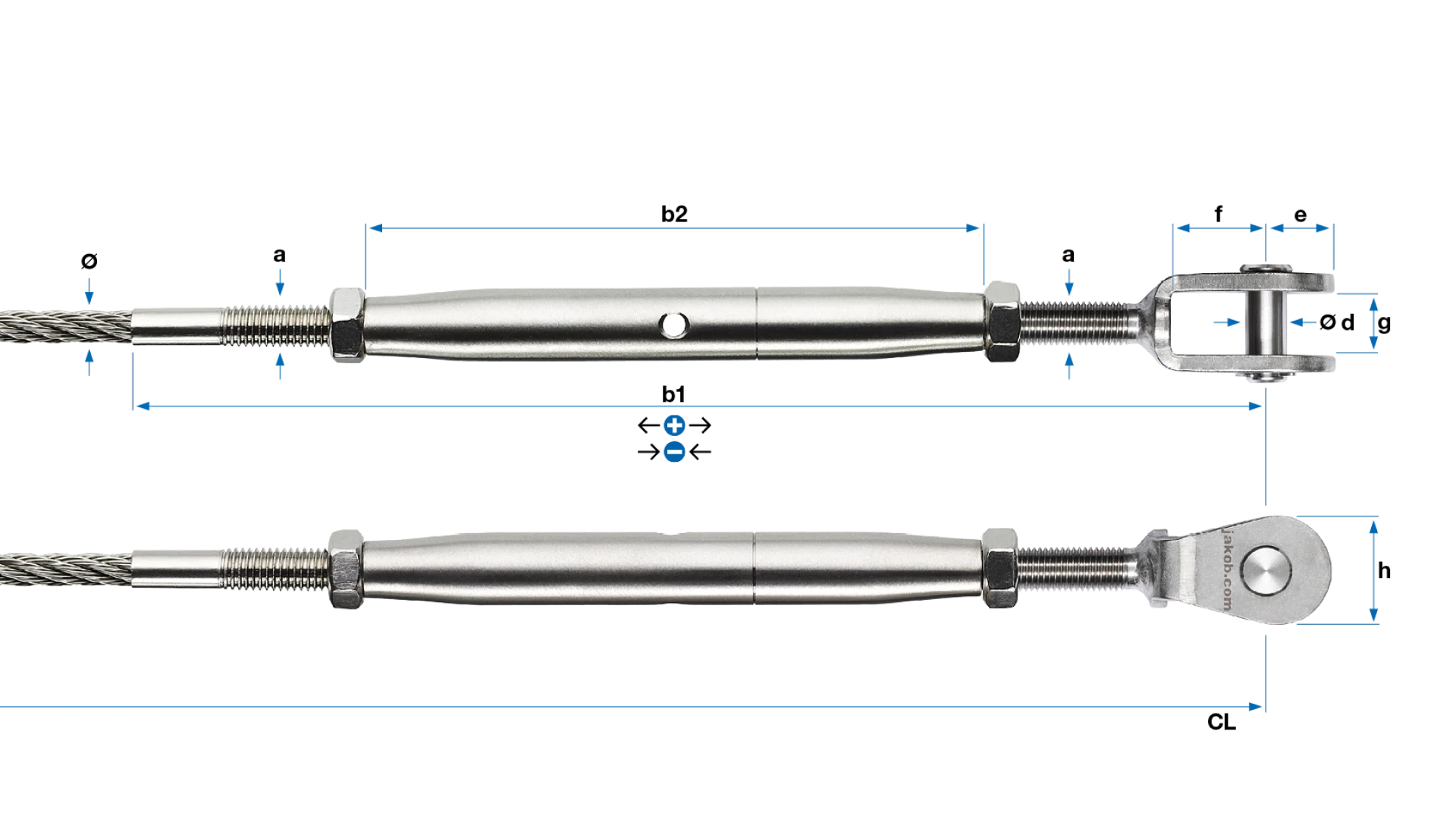

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
