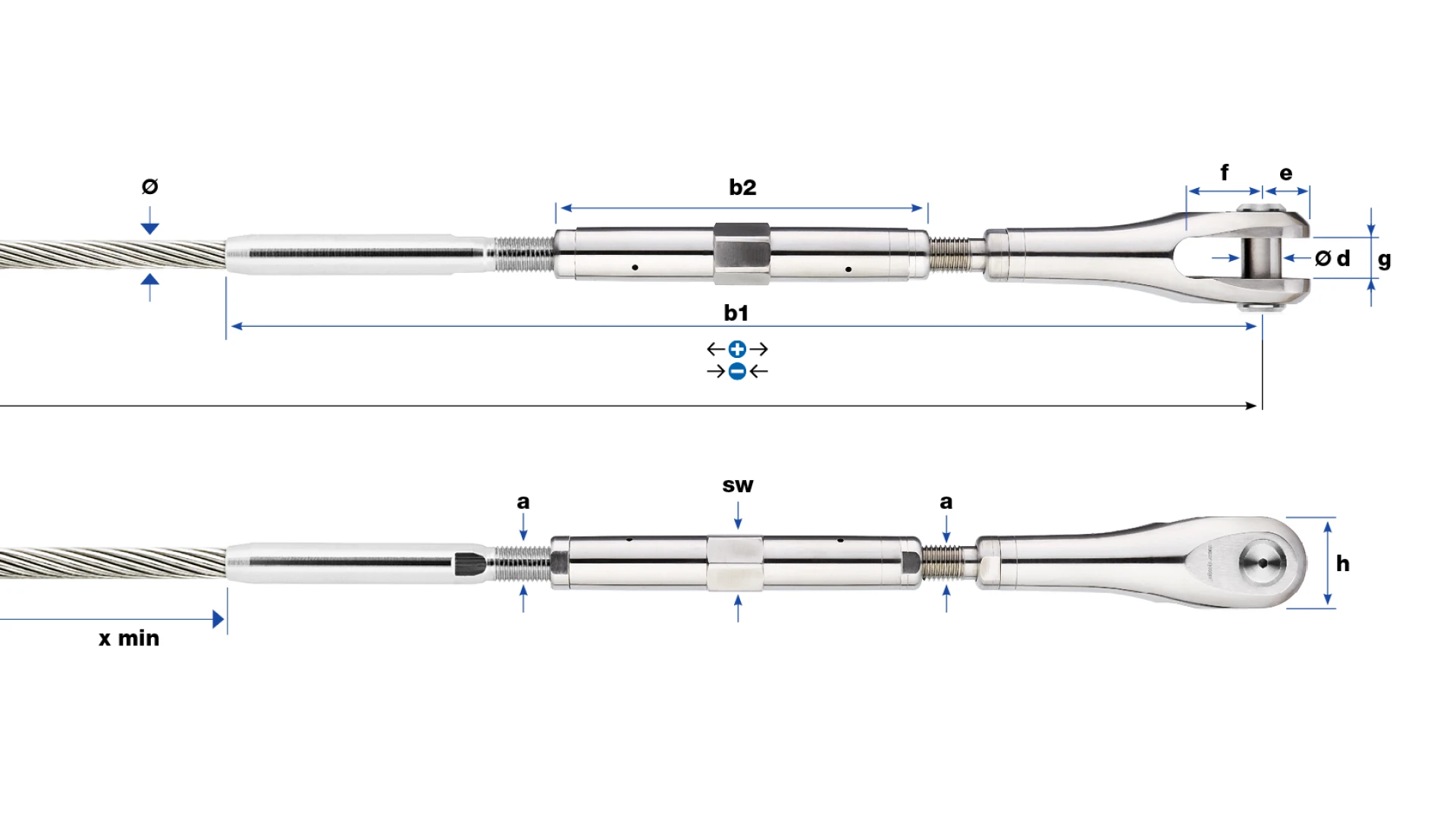

제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly
| No. | ø | a | b1 | b2 | e | f | g | h | ø d | sw | F_Rd kN ETA | - | + | x min | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32870-0800-01 | 8 | M12 | 411 | 160 | 15 | 24 | 14 | 31 | 12 | 20 | 30.6 | 64 | 41 | 400 | 0.7740 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-1000-01 | 10 | M16 | 482 | 180 | 20 | 30 | 18 | 40 | 16 | 25 | 47.9 | 70 | 39 | 500 | 1.4260 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-1200-01 | 12 | M20 | 558 | 200 | 24 | 38 | 22 | 48 | 20 | 32 | 69 | 76 | 36 | 600 | 2.7080 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-1400-01 | 14 | M24 | 678 | 240 | 29 | 47 | 26 | 58 | 25 | 36 | 94 | 92 | 44 | 700 | 4.4880 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-1600-01 | 16 | M24 | 700 | 240 | 29 | 47 | 26 | 58 | 25 | 36 | 122.4 | 96 | 44 | 800 | 4.6310 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-1900-01 | 19 | M30 | 850 | 300 | 38 | 60 | 32 | 75 | 32 | 46 | 172.8 | 118 | 56 | 950 | 9.5360 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-2200-01 | 22 | M30 | 878 | 300 | 38 | 60 | 32 | 75 | 32 | 46 | 230.2 | 118 | 56 | 1100 | 10.0500 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
| 32870-2600-01 | 26 | M36 | 971 | 320 | 45 | 65 | 38 | 90 | 36 | 55 | 315.5 | 120 | 48 | 1300 | 15.9350 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
