제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly

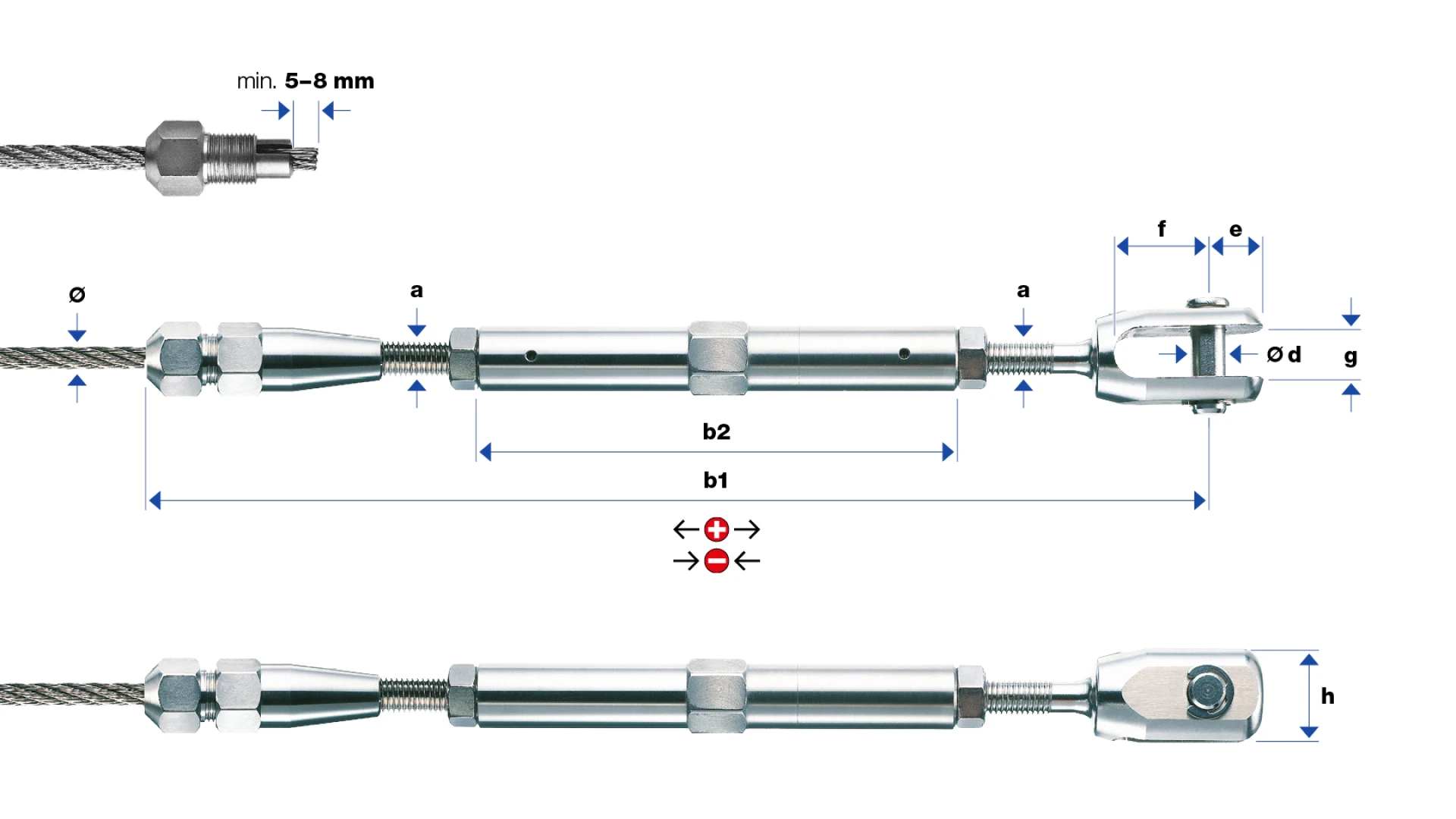

| No. | ø | a | b1 | b2 | e | f | g | h | ø d | WLL kN | F_Rd kN | - | + | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30822-0600-01 | 6 | M10 | 340 | 140 | 10.5 | 19.5 | 12 | 21.5 | 9 | 7.6 | 11.4 | 60 | 20 | 0.4500 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||||||
| 30822-0800-01 | 8 | M12 | 385 | 160 | 18 | 24 | 16 | 30 | 12 | 15.2 | 22.8 | 70 | 34 | 0.8150 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
