Turnbuckle with clevis swaged for rope Ø 2 - 12 mm. PHASED-OUT ITEM

제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly

Turnbuckle with clevis swaged for rope Ø 2 - 12 mm. PHASED-OUT ITEM
No. ø a b1 b2 e f g h ø d - + kg
30870-0200 2 M5 178 80 6 12 7.5 12.5 5 34 26 0.0400
30870-0300 3 M6 207 92 6 12 7.5 12.5 5 44 22 0.0700
30870-0400 4 M6 211 92 6 12 7.5 12.5 5 44 22 0.0710
30870-0400-1 4 M8 233 112 7 13 10 14.5 6 52 26 0.1360
30870-0800 8 M12 355 150 14 26 14 26 12 70 34 0.4740
30870-1000 10 M16 458 190 18 32 22 34 14 84 42 0.9940
30870-1200 12 M20 554 220 23 43 24 43 19 98 50 1.8130

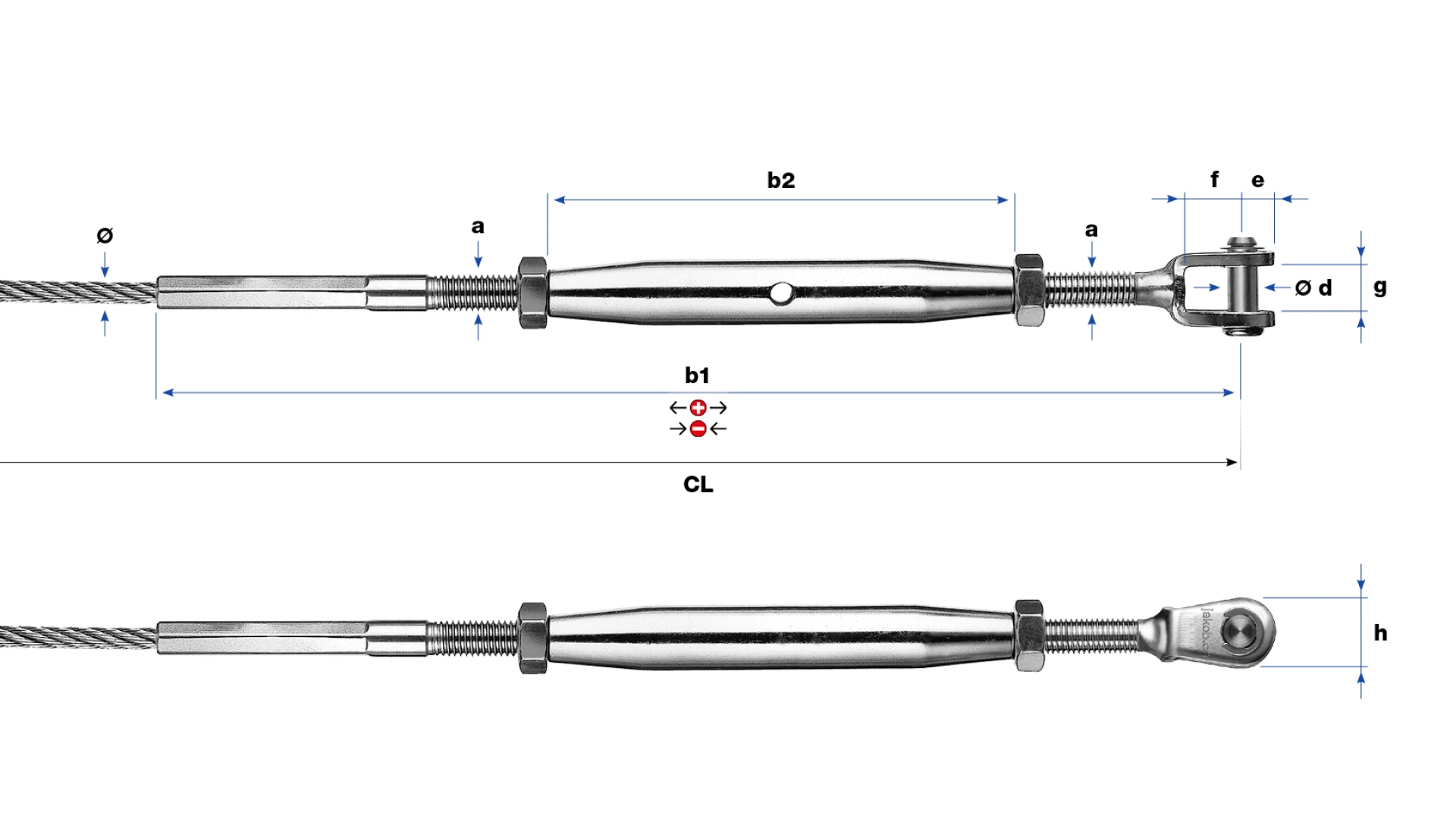

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
