제품 라인업 — Clevises · Clevis with turnbuckle swaged and self-assembly
| No. | ø | a | b1 | b2 | e | f | g | h | ø d | WLL kN | - | + | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30870-0500-10 | 5 | M5 | 151 | 80 | 6 | 12 | 7.5 | 12.5 | 5 | 3.8 | 22 | 16 | 0.0450 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30870-0500-11 | 5 | M5 | 182 | 80 | 6 | 12 | 7.5 | 12.5 | 5 | 3.8 | 34 | 26 | 0.0500 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30870-0600-10 | 6 | M6 | 170 | 92 | 6 | 12 | 7.5 | 12.5 | 5 | 5.3 | 20 | 12 | 0.0670 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30870-0600-11 | 6 | M6 | 207 | 92 | 6 | 12 | 7.5 | 12.5 | 5 | 5.3 | 44 | 22 | 0.0780 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30870-0800-10 | 8 | M8 | 207 | 112 | 7 | 13 | 10 | 14.5 | 6 | 9.8 | 17 | 6 | 0.1400 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||
| 30870-0800-11 | 8 | M8 | 239 | 112 | 7 | 13 | 10 | 14.5 | 6 | 9.8 | 51 | 26 | 0.1610 | |
Further informations
Price basis / tiered pricesPrice on request |
||||||||||||||

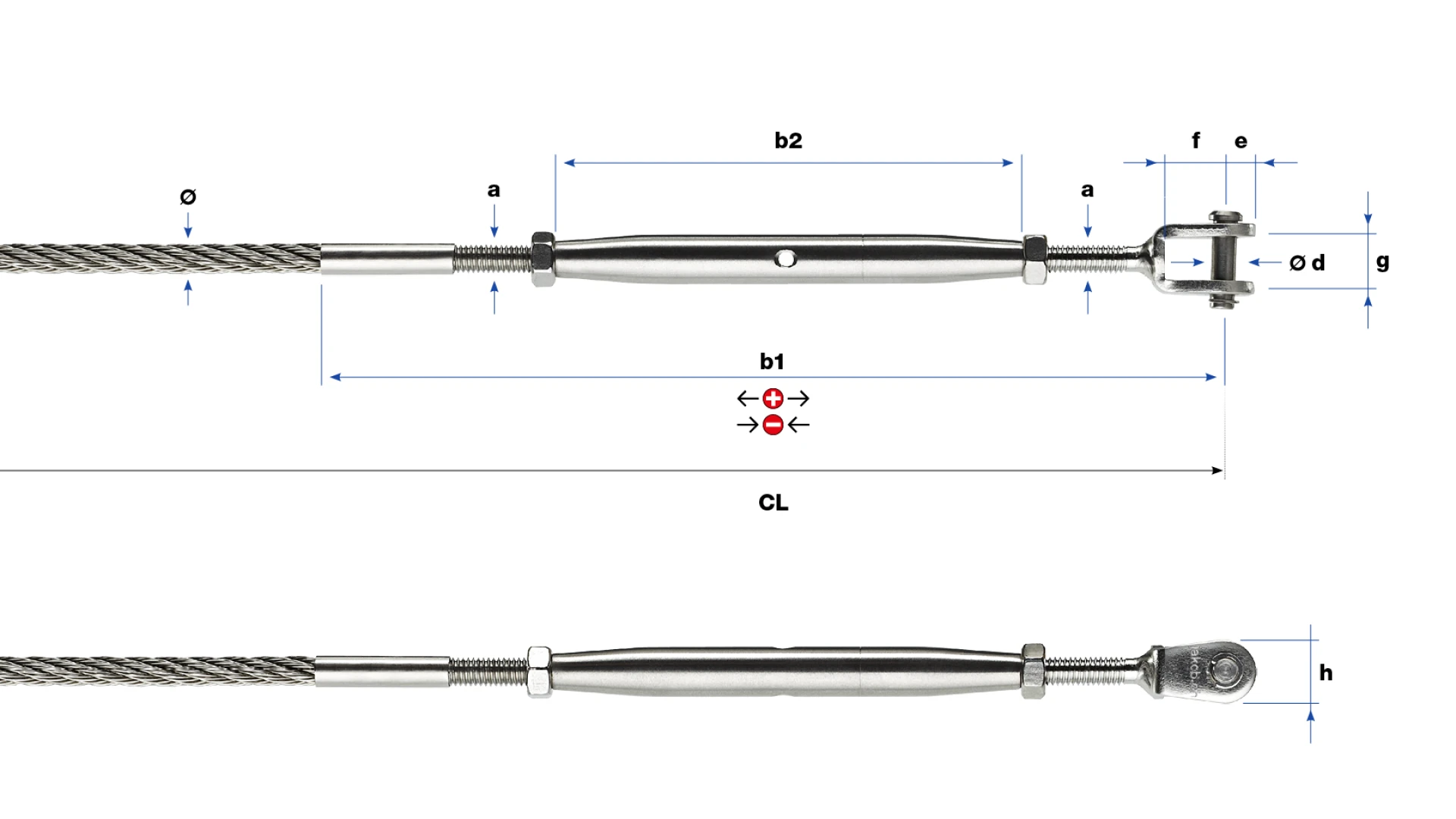

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
