Crosslink for clevis Classic

제품 라인업 — Clevises · Toggle

Crosslink for clevis Classic

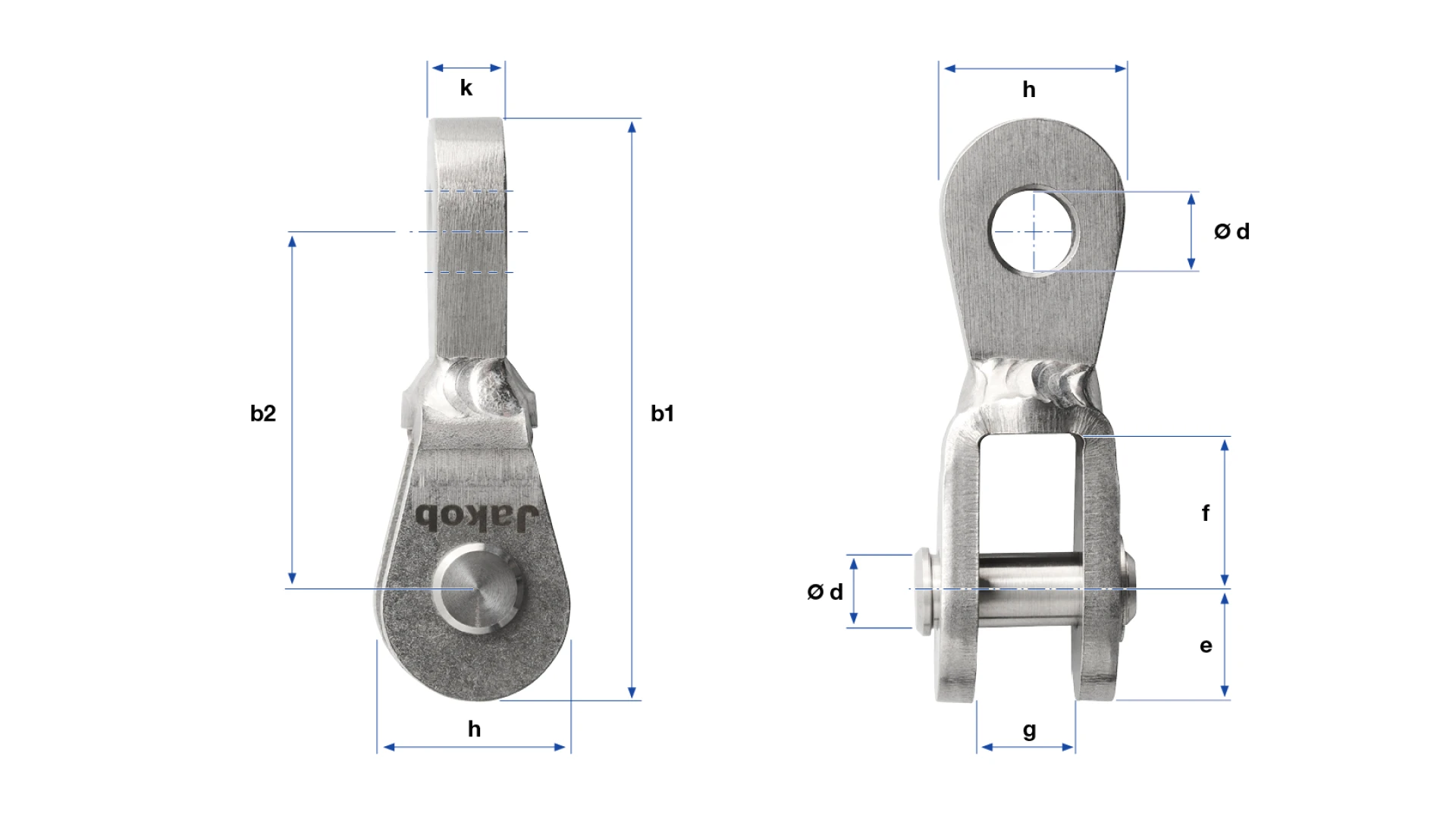

No.	b1	b2	e	f	g	h	k	ø d	kg
30973-0600	38	24	7	10	8	13	6	5	0.0220
Further informations Weight: 0.0220 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-0800	65	39	13	16	13	22	8	8	0.0800
Further informations Weight: 0.0800 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-1000	77	47	15	20	13	25	10	10	0.1340
Further informations Weight: 0.1340 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-1200	94	56	19	24	16	32	12	12	0.2320
Further informations Weight: 0.2320 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-1600	115	69	23	32	22	38	15	14	0.4100
Further informations Weight: 0.4100 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-2000	146	86	30	38	22	50	20	20	0.8950
Further informations Weight: 0.8950 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-2400	181	106	38	45	28	65	25	25	1.7860
Further informations Weight: 1.7860 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30973-3000	233	144	45	68	32	74	30	30	3.3910
Further informations Weight: 3.3910 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
