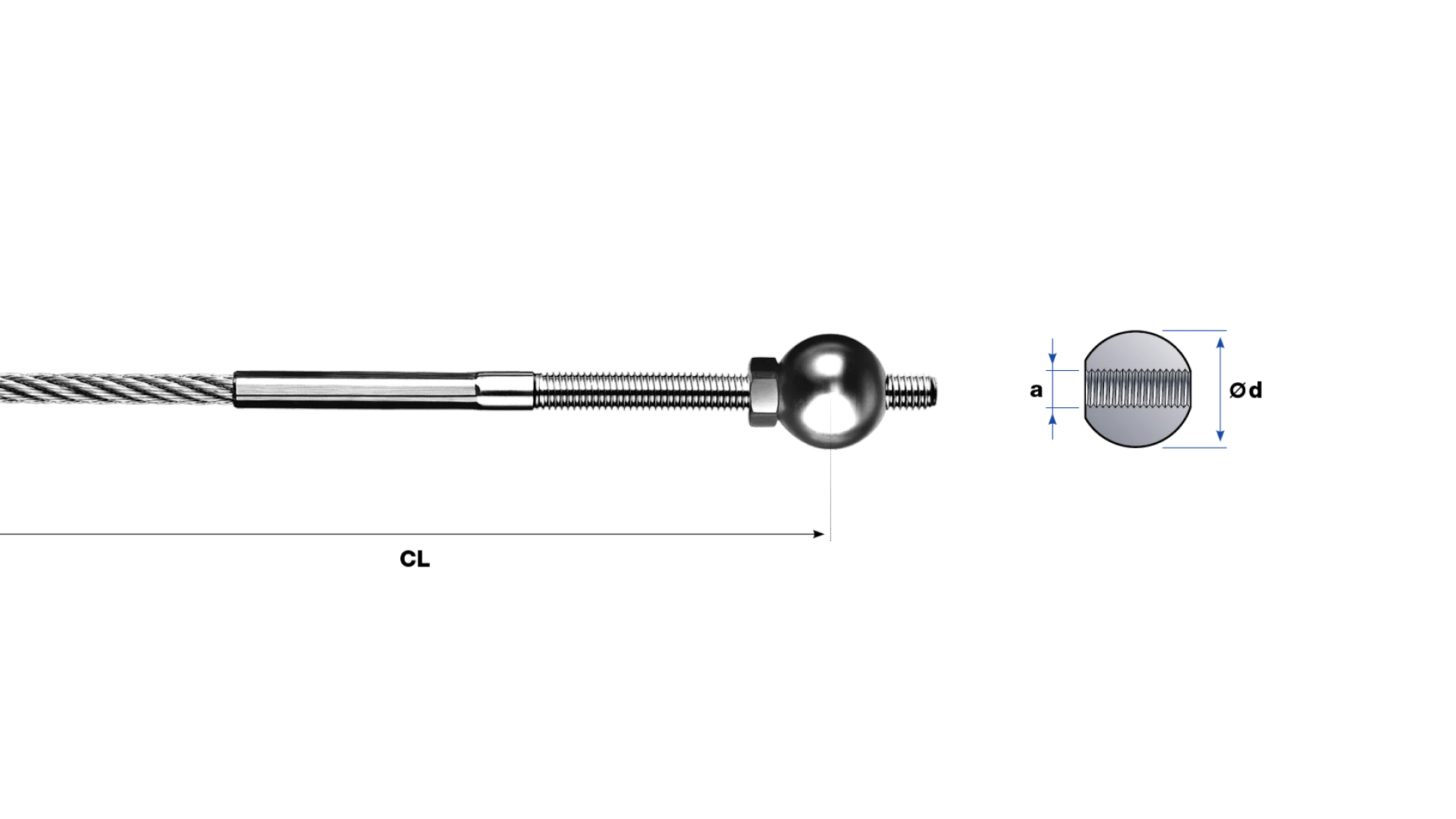

Variball MK 2 rigth-hand

제품 라인업 — End stops · End fittings Variball

Variball MK 2 rigth-hand

No.	a	ø d	kg
30898-0400-03	M4	16	0.0150
Further informations Weight: 0.0150 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30898-0500-03	M5	16	0.0140
Further informations Weight: 0.0140 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30898-0600-03	M6	20	0.0280
Further informations Weight: 0.0280 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30898-0800-03	M8	24	0.0480
Further informations Weight: 0.0480 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30898-1000-03	M10	24	0.0430
Further informations Weight: 0.0430 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
