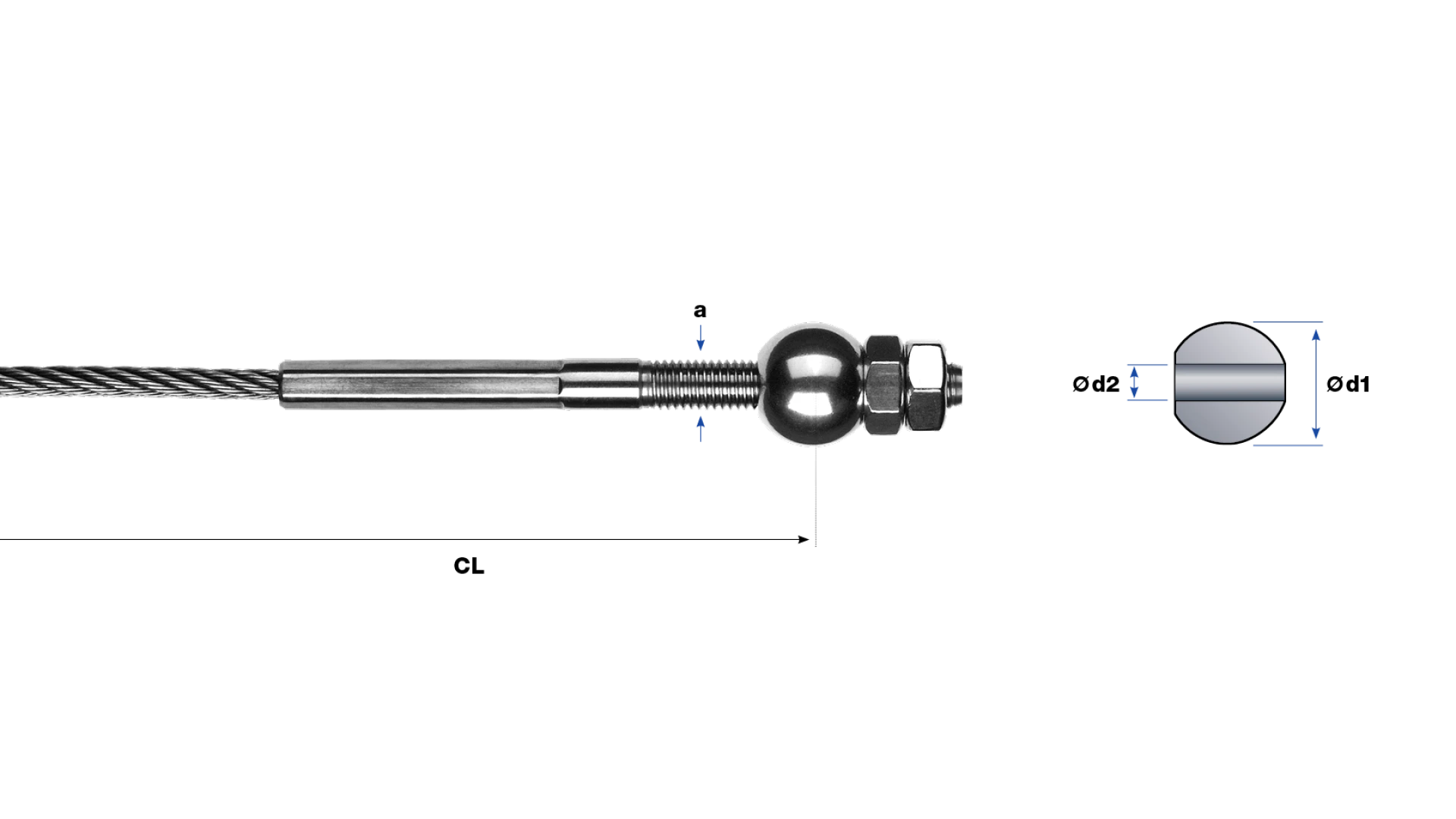

Variball MK 3

제품 라인업 — End stops · End fittings Variball

Variball MK 3

No.	a	ø d1	ø d2	kg
30899-0300-05	M3	12	3.2	0.0060
Further informations Weight: 0.0060 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0400-05	M4	16	4.5	0.0140
Further informations Weight: 0.0140 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0500-05	M5	16	5.5	0.0140
Further informations Weight: 0.0140 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0600-05	M6	20	6.5	0.0270
Further informations Weight: 0.0270 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0800-05	M8	24	8.5	0.0460
Further informations Weight: 0.0460 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-1000-05	M10	24	10.5	0.0400
Further informations Weight: 0.0400 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
