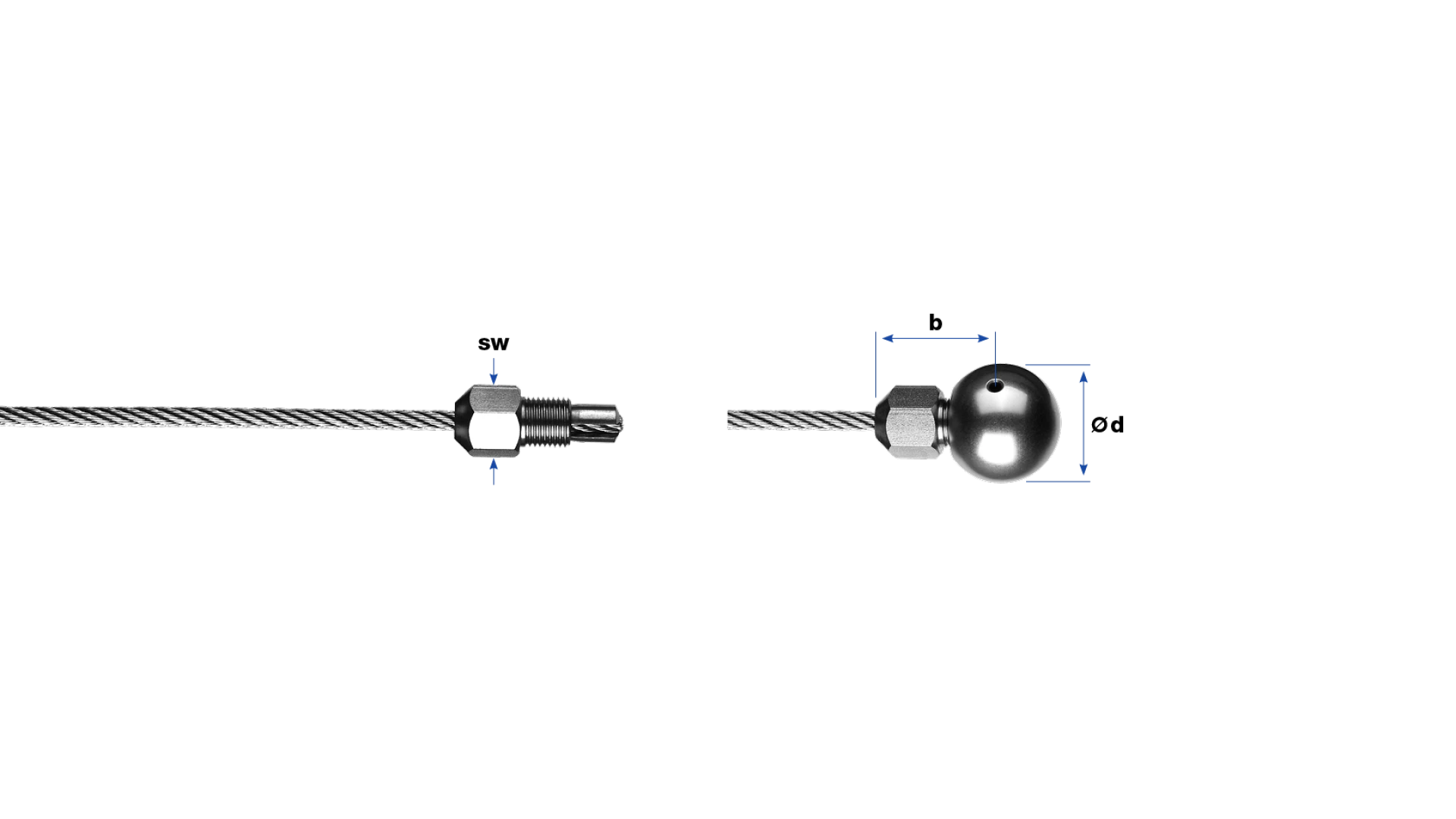

Variball MK 4 self-assembly

제품 라인업 — End stops · End fittings Variball

Variball MK 4 self-assembly

No.	ø	b	ø d	sw	WLL kN	kg
30899-0200-06	2	27	24	13	1.7	0.0620
Further informations Tightening torque: tightening torque 15.0 Nm Diameter: 2 mm Weight: 0.0620 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0300-06	3	27	24	13	3.6	0.0620
Further informations Tightening torque: tightening torque 15.0 Nm Diameter: 3 mm Weight: 0.0620 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30899-0400-06	4	27	24	13	6.3	0.0620
Further informations Tightening torque: tightening torque 15.0 Nm Diameter: 4 mm Weight: 0.0620 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
