End-stop aluminum hexagonal swaged

제품 라인업 — End stops · End stops assembled

End-stop aluminum hexagonal swaged
No. ø b ø d kg
30566-0100-0506 1 7 5 0.0003
30566-0100-2757 1 6.4 2.5 0.0051
30566-0150-0404 1.5 4.6 4 0.0001
30566-0150-0406 1.5 6.9 4 0.0002
30566-0150-0506 1.5 7 5 0.0003
30566-0150-0606 1.5 7.2 6 0.0004
30566-0200-0506 2 7 5 0.0002
30566-0200-0606 2 7.2 6 0.0004
30566-0300-0807 3 8.3 8 0.0008
30566-0300-0816 3 17.2 8 0.0018
30566-0400-0816 4 17.8 8 0.0016
30566-0400-0916 4 18.5 9 0.0021

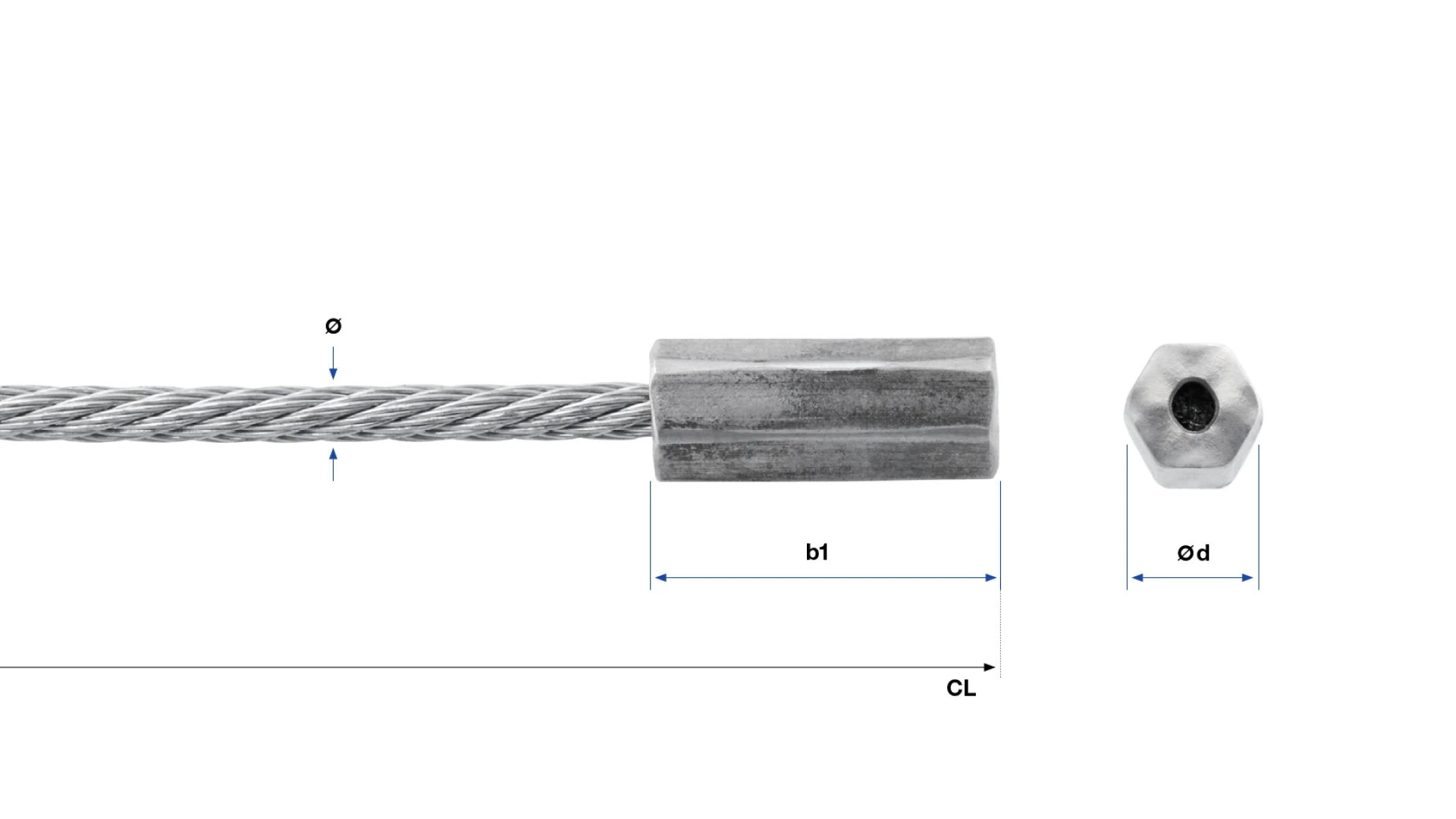

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
