End-stop aluminum round swaged

제품 라인업 — End stops · End stops assembled

End-stop aluminum round swaged

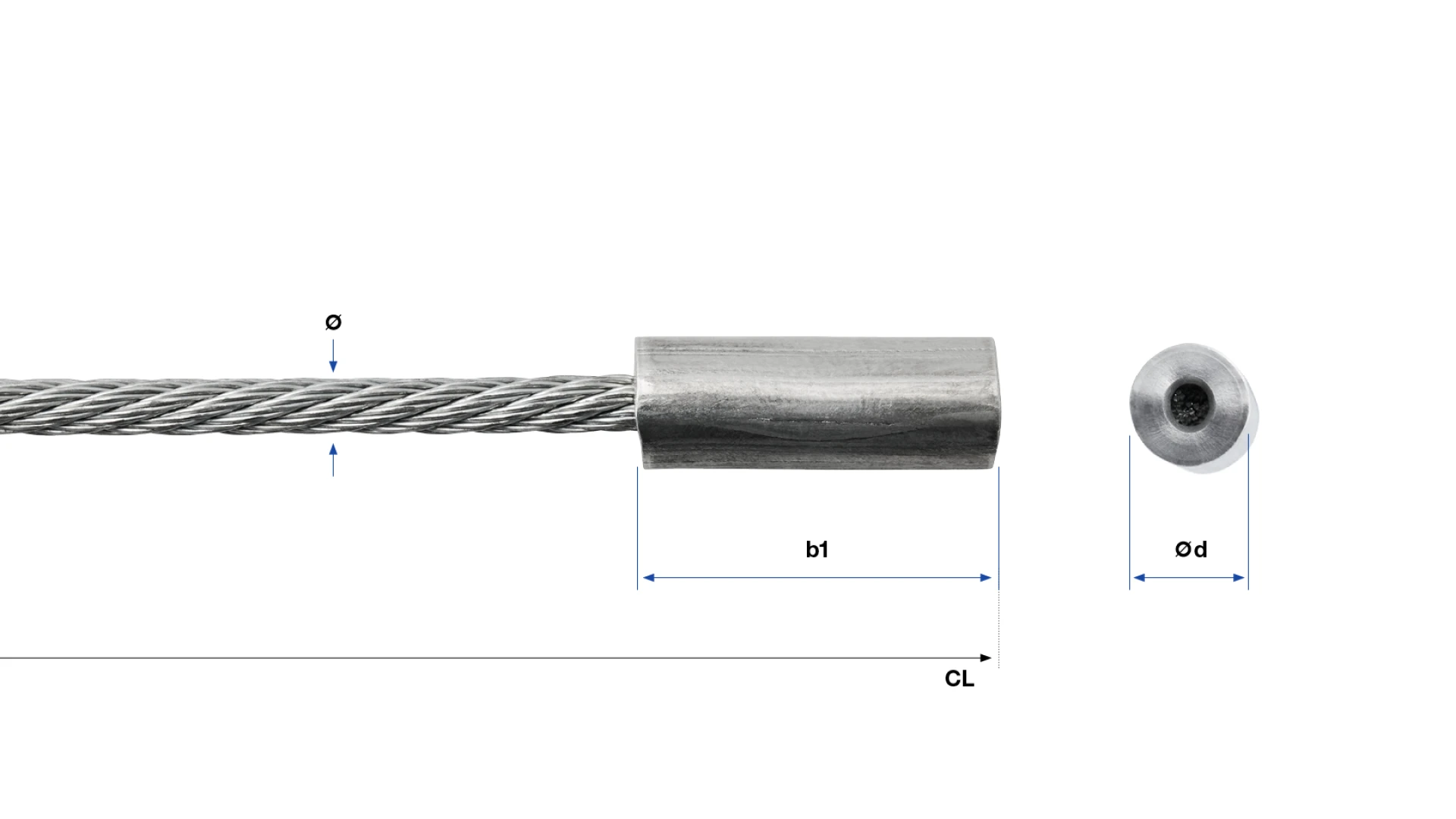

No. ø b ø d kg
30566-0100-0506-01 1 7.8 4.3 0.0003
30566-0100-2757-01 1 6.9 2.4 0.0051
30566-0150-0404-01 1.5 4.7 3.5 0.0001
30566-0150-0406-01 1.5 7.3 3.5 0.0002
30566-0150-0506-01 1.5 7.6 4.3 0.0003
30566-0150-0606-01 1.5 7.9 4.9 0.0004
30566-0200-0506-01 2 7.4 4.3 0.0002
30566-0200-0606-01 2 7.8 4.9 0.0004
30566-0300-0807-01 3 8.3 7 0.0008
30566-0300-0816-01 3 17.3 7 0.0018
30566-0400-0816-01 4 18.5 7 0.0016
30566-0400-0916-01 4 18.3 8 0.0021

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
