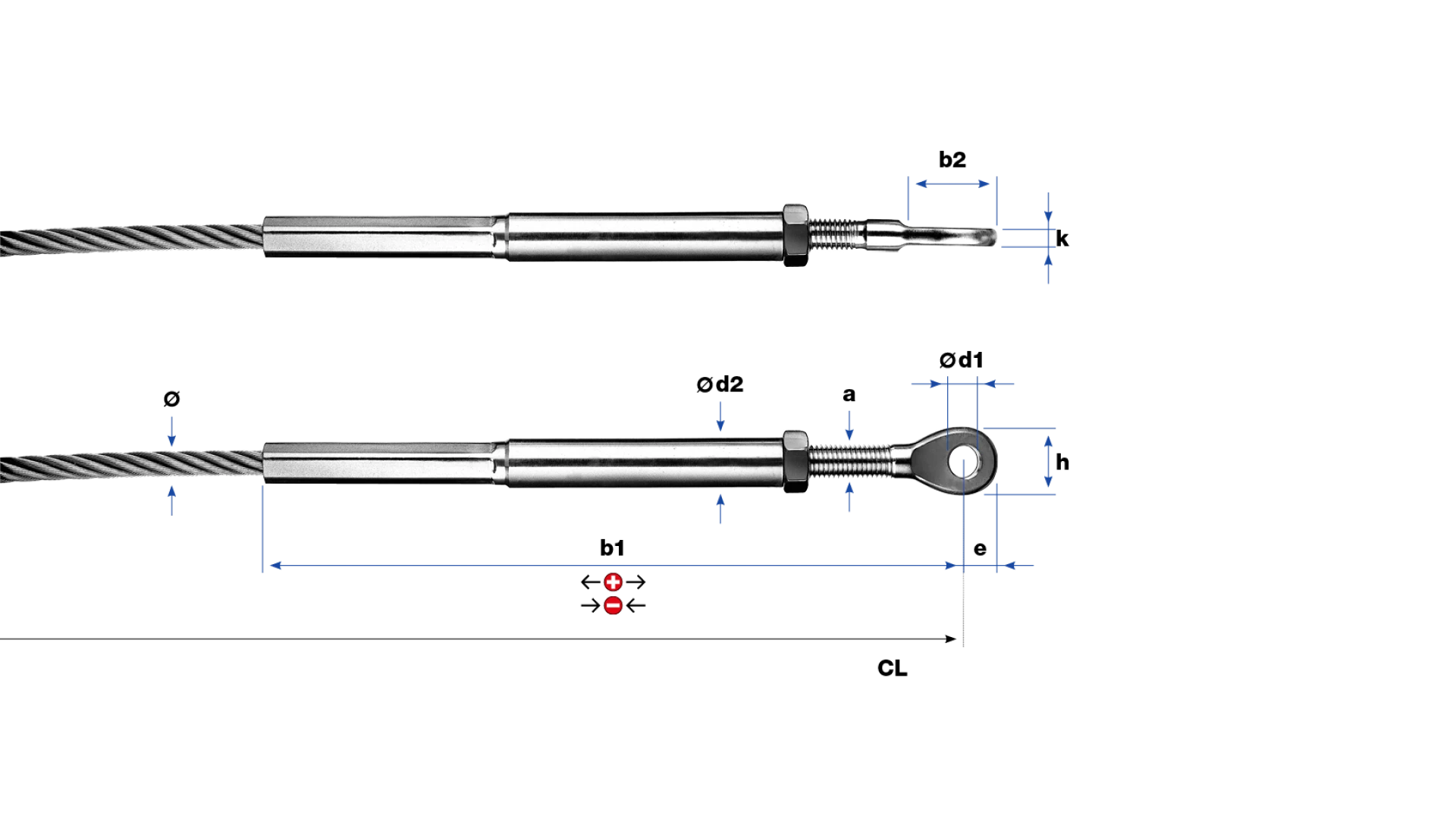

Eye-end and internal thread-end right-hand swaged for rope Ø 3 - 8 mm

제품 라인업 — Eye-ends · Eye-end with internal thread swaged

Eye-end and internal thread-end right-hand swaged for rope Ø 3 - 8 mm
No. ø a b1 b2 e h k ø d1 ø d2 - + kg
30814-0300-01 3 M5 83 15 6 12 3 5.5 7 8 5 0.0210
30814-0300-02 3 M5 106 15 6 12 3 5.5 7 15 13 0.0290
30814-0400-01 4 M6 89 16 7 14 4 6.5 8 8 3 0.0320
30814-0400-02 4 M6 114 16 7 14 4 6.5 8 15 11 0.0370
30814-0500-01 5 M6 97 16 7 14 4 6.5 8 8 3 0.0270
30814-0500-02 5 M6 122 16 7 14 4 6.5 8 15 11 0.0400
30814-0600-01 6 M8 124 21 8.5 17 5 8.5 10 10 3 0.0600
30814-0600-02 6 M8 161 21 8.5 17 5 8.5 10 25 13 0.0740
30814-0800-01 8 M10 205 29 12 22 6 10.5 13 35 10 0.1720

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
