Eye-end and internal thread-end swivel swaged

제품 라인업 — Eye-ends · Eye-end with internal thread swaged

Eye-end and internal thread-end swivel swaged
No. ø a b1 b2 e h k ø d1 ø d2 sw - + kg
30824-0300-01 3 M5 111 15 6 12 3 5.5 10 8 8 5 0.0490
30824-0300-02 3 M5 135 15 6 12 3 5.5 10 8 15 13 0.0550
30824-0400-01 4 M6 115 16 7 14 4 6.5 10 8 8 3 0.0460
30824-0400-02 4 M6 140 16 7 14 4 6.5 10 8 15 11 0.0560
30824-0500-01 5 M6 137 16 7 14 4 6.5 13 11 8 3 0.0870
30824-0500-02 5 M6 161 16 7 14 4 6.5 13 11 15 11 0.0930
30824-0600-01 6 M8 152 21 8.5 17 5 8.5 13 11 10 3 0.1000
30824-0600-02 6 M8 188 21 8.5 17 5 8.5 13 11 25 13 0.1120

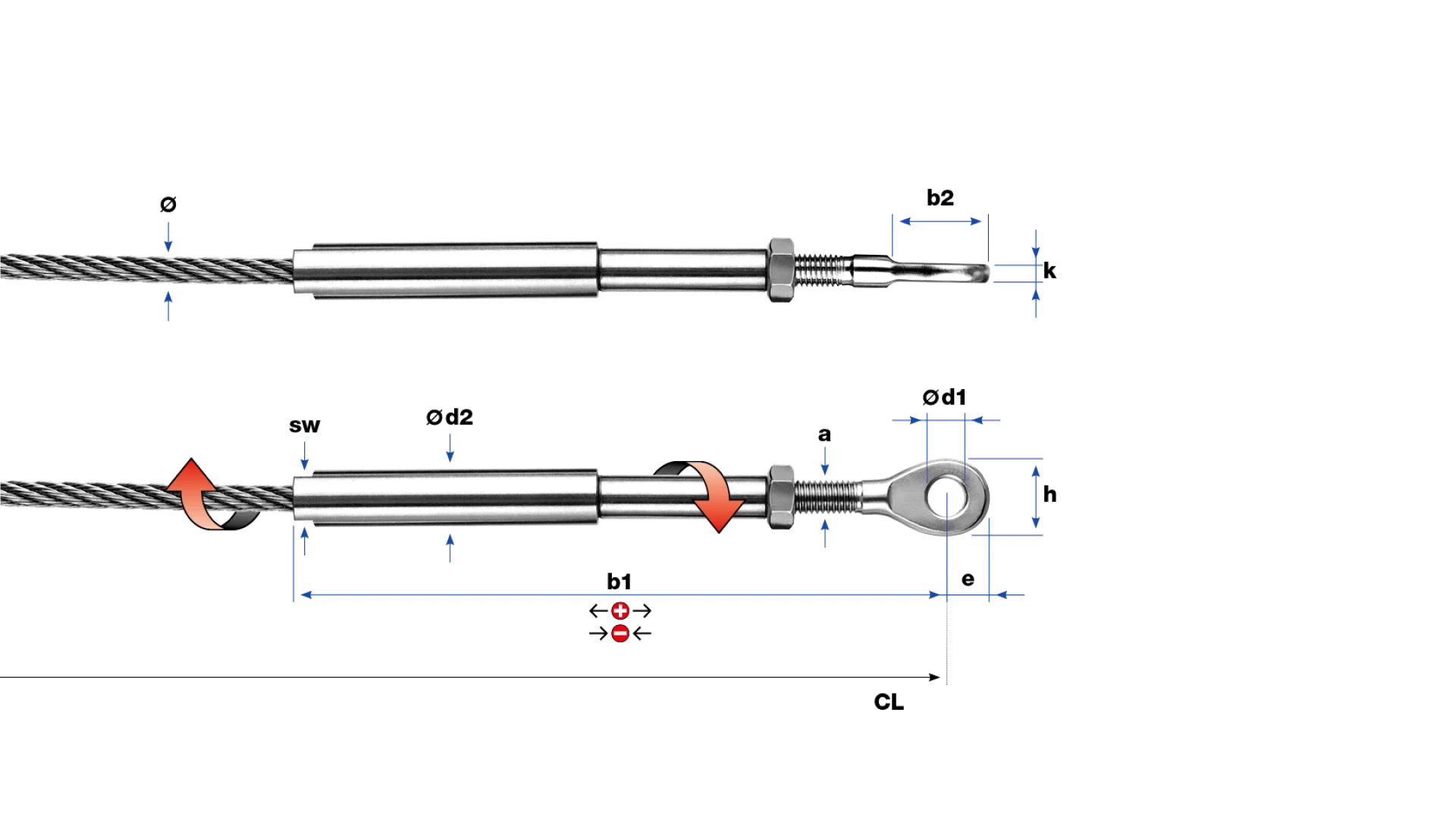

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
