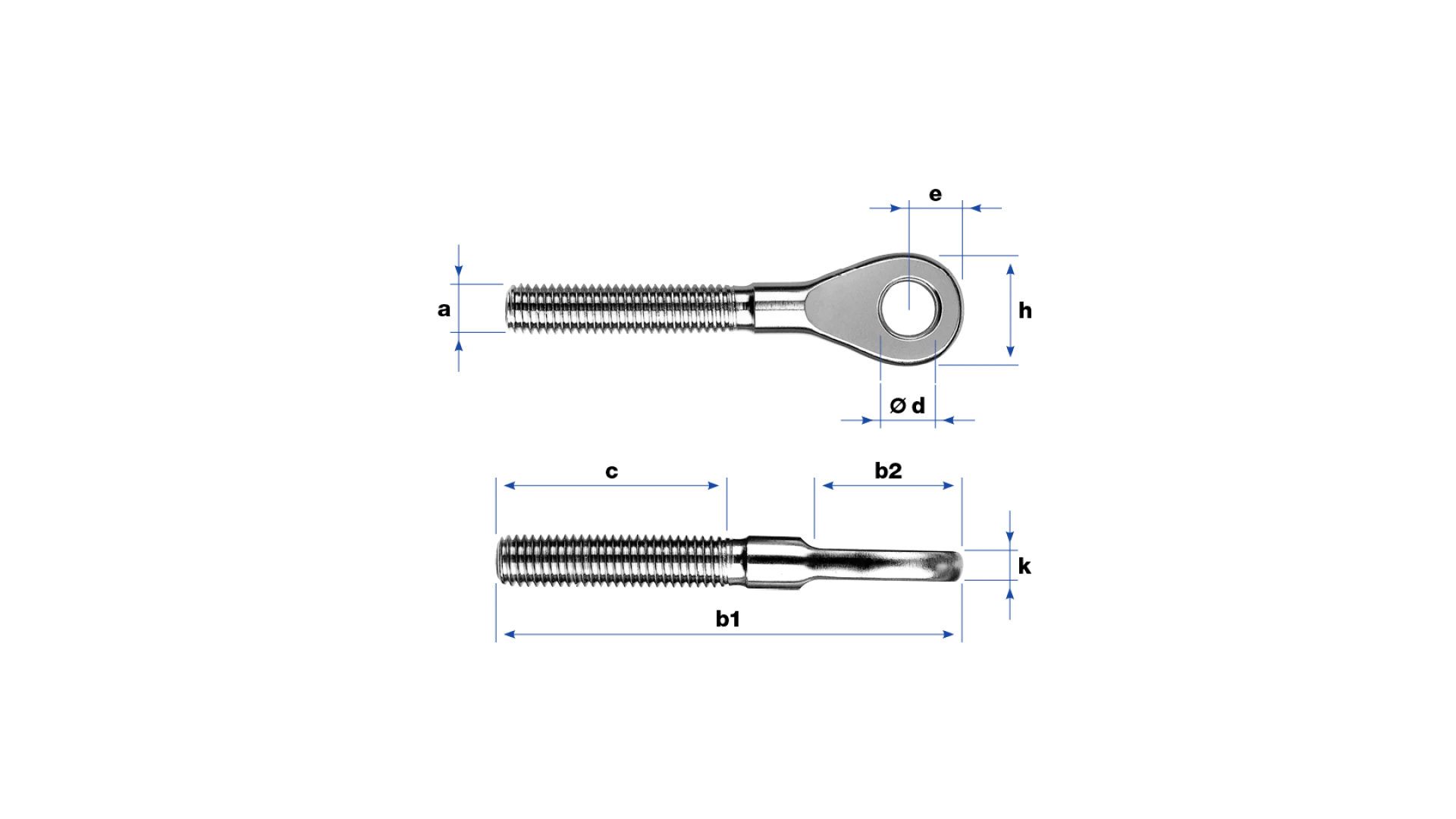

Eye-end with external thread left-hand

제품 라인업 — Eye-ends · Eye-end with thread

Eye-end with external thread left-hand
No. a b1 b2 c e h k ø d F_Rd kN ETA kg
30886-0500 M5 62 16 41 6 12 3 5.5 0.0080
30886-0500-01 M5 46 16 25 6 12 3 5.5 0.0080
30886-0600 M6 68 16 47 7 14 4 6.5 0.0150
30886-0600-01 M6 51 16 30 7 14 4 6.5 0.0100
30886-0800 M8 87 21 57 8.5 17 5 8.5 15 0.0300
30886-0800-01 M8 65 21 35 8.5 17 5 8.5 15 0.0260
30886-1000 M10 102 29 63 12 22 6 10.5 23.8 0.0560
30886-1200 M12 123 31 80 14 25 8 13 0.0940
30886-1600 M16 149 37 100 15.5 31 10 14.5 0.2080
30886-2000 M20 185 49 120 21 40 15 19.5 0.4230
