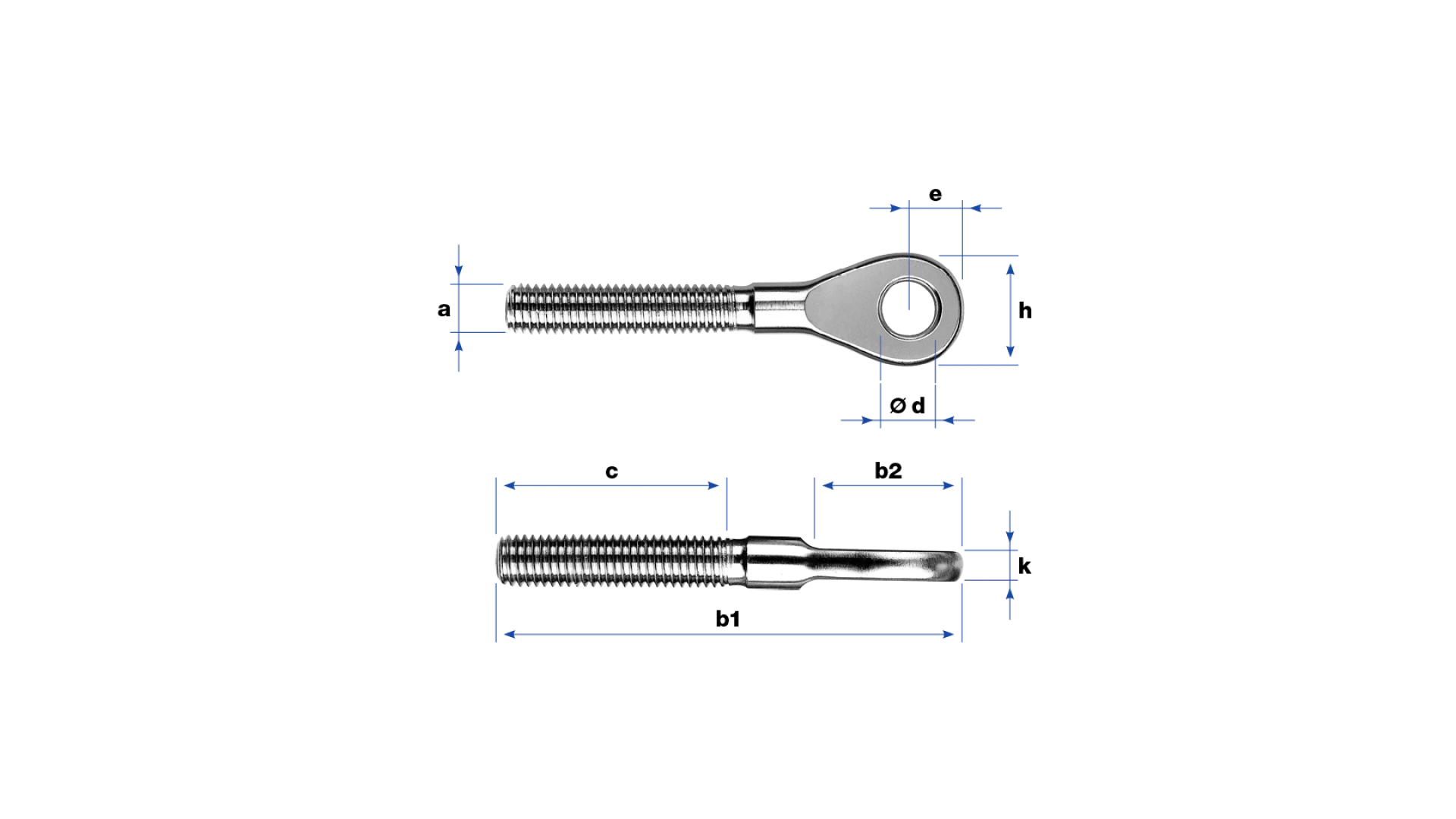

Eye-end with external thread right-hand

제품 라인업 — Eye-ends · Eye-end with thread

Eye-end with external thread right-hand
No. a b1 b2 c e h k ø d F_Rd kN ETA kg
30885-0500 M5 62 16 41 6 12 3 5.5 0.0080
30885-0500-01 M5 46 16 25 6 12 3 5.5 0.0080
30885-0600 M6 68 16 47 7 14 4 6.5 0.0150
30885-0600-01 M6 51 16 30 7 14 4 6.5 0.0100
30885-0800 M8 87 21 57 8.5 17 5 8.5 15 0.0300
30885-0800-01 M8 65 21 35 8.5 17 5 8.5 15 0.0210
30885-1000 M10 102 29 63 12 22 6 10.5 23.8 0.0560
30885-1200 M12 123 31 80 14 25 8 13 0.0940
30885-1600 M16 149 37 100 15.5 31 10 14.5 0.2080
30885-2000 M20 185 49 120 21 40 15 19.5 0.4230

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
