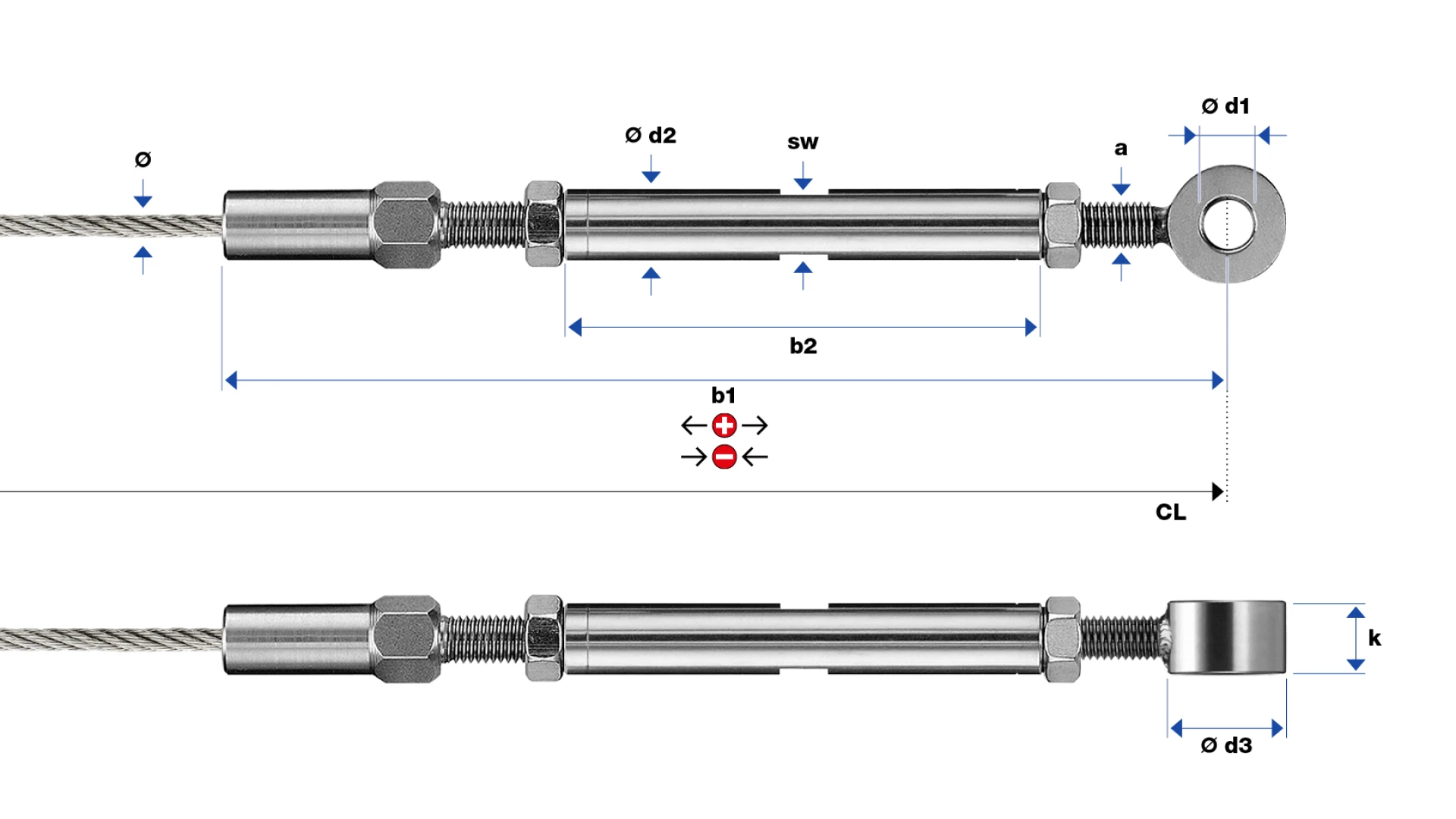

제품 라인업 — Eye-ends · Eye-end with turnbuckle swaged and self-assembly
| No. | ø | b1 | b2 | e | k | ø d1 | ø d2 | ø d3 | sw | F_Rd kN | F_rk kN | - | + | kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30911-0400-04 | 4 | 166 | 80 | 10 | 12 | 8.2 | 12 | 20 | 10 | 2.2 | 3.3 | 20 | 8 | 0.1440 | |
Further informations
Price basis / tiered pricesPrice on request |
|||||||||||||||
Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.
