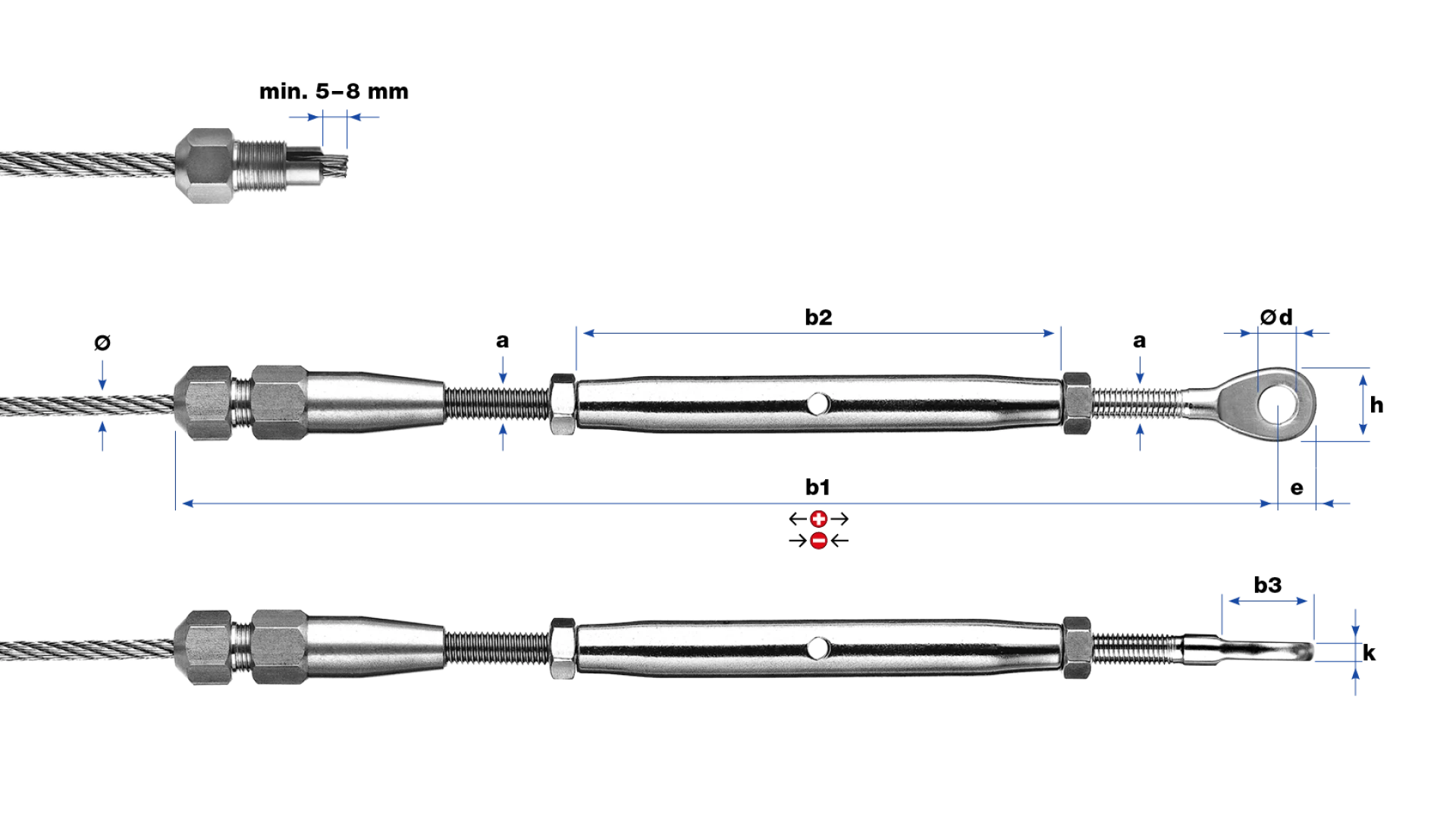

Turnbuckle with eye-end LT1 Self-assembly
No. ø a b1 b2 b3 e h k ø d F_Rd kN ETA F_Rd kN - + kg
30819-0200 2 M6 231 92 16 7 14 4 6.5 1.8 44 22 0.0950
30819-0300 3 M6 231 92 16 7 14 4 6.5 3.4 44 22 0.0950
30819-0400 4 M6 231 92 16 7 14 4 6.5 5.2 6.1 44 22 0.0950
30819-0500 5 M8 262 112 21 8.5 17 5 8.5 7.6 9.2 52 26 0.1760
30819-0600 6 M8 262 112 21 8.5 17 5 8.5 10.4 11.4 52 26 0.1760
30819-0600-10 6 M10 283 120 29 12 22 6 10.5 10.4 11.4 54 20 0.1760
30819-0800 8 M12 352 150 31 14 25 8 13 19.8 22.8 68 34 0.1760
30819-0800-10 8 M10 304 120 29 12 22 6 10.5 19.8 22.8 54 20 0.1760
30819-1000 10 M16 425 190 37 15 31 10 14.5 29.2 31.3 62 38 0.1760
30819-1200 12 M20 499 220 49 21 40 15 19.5 43.5 45 58 50 0.1760

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
