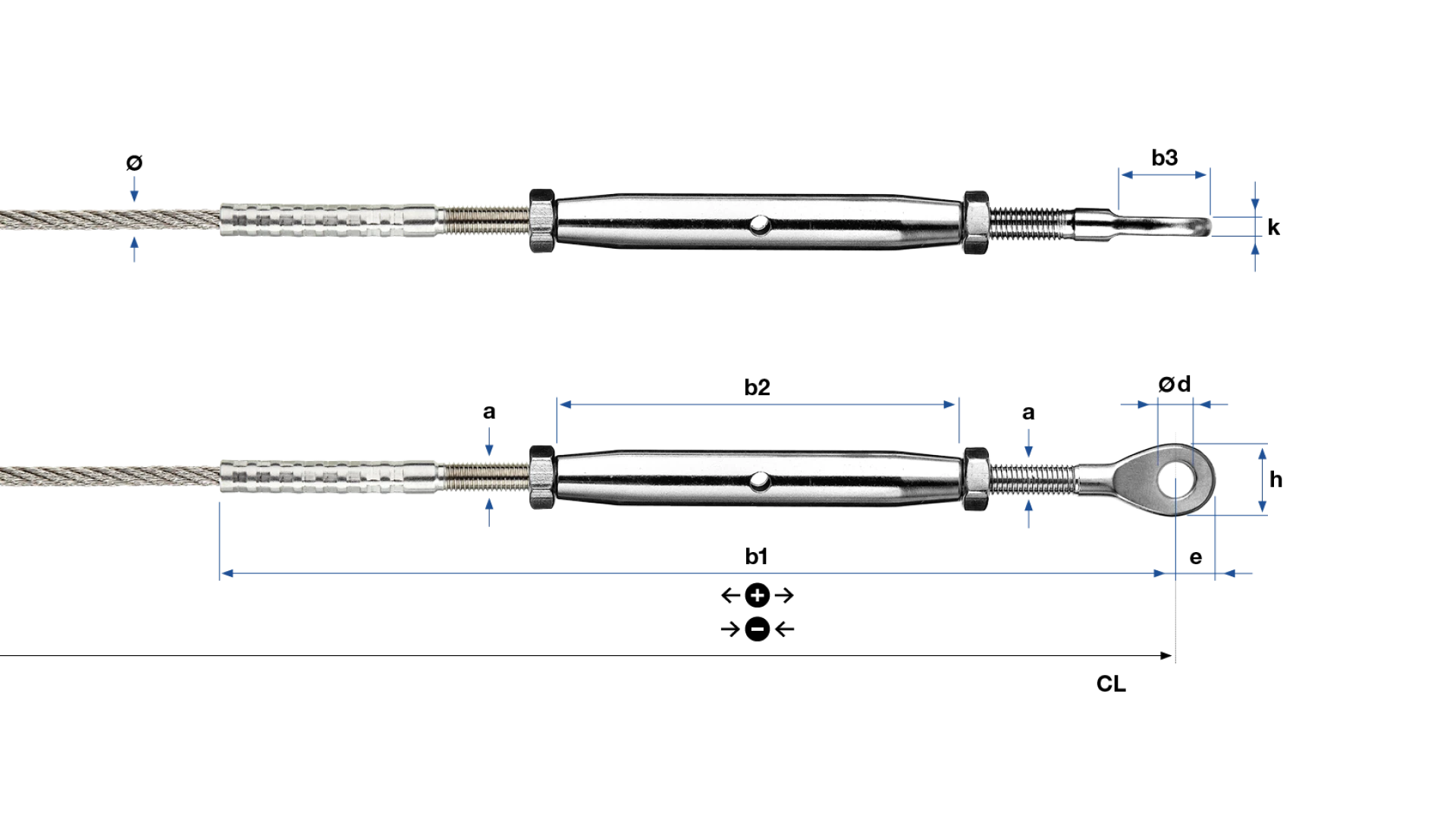

Turnbuckle with eye-end Self SA self-assembly

제품 라인업 — Eye-ends · Eye-end with turnbuckle swaged and self-assembly

Turnbuckle with eye-end Self SA self-assembly
No. ø a b1 b2 b3 e h k ø d F_Rd kN - + kg
30819-0200-06 2 M5 174 92 15 6 12 3 5.5 1.1 34 26 0.0350
30819-0300-06 3 M6 201 92 16 7 14 4 6.5 2.5 44 22 0.0630
30819-0400-06 4 M6 205 92 16 7 14 4 6.5 4.4 44 22 0.0650
30819-0500-06 5 M8 238 112 21 8.5 17 5 8.5 6.1 52 26 0.1290
30819-0600-06 6 M10 270 120 29 12 22 6 10.5 8.7 54 20 0.2210
30819-0800-06 8 M12 346 150 31 14 25 8 13 17.8 70 34 0.4100

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
