Turnbuckle with Eye-end Vissline round swaged

제품 라인업 — Eye-ends · Eye-end with turnbuckle swaged and self-assembly

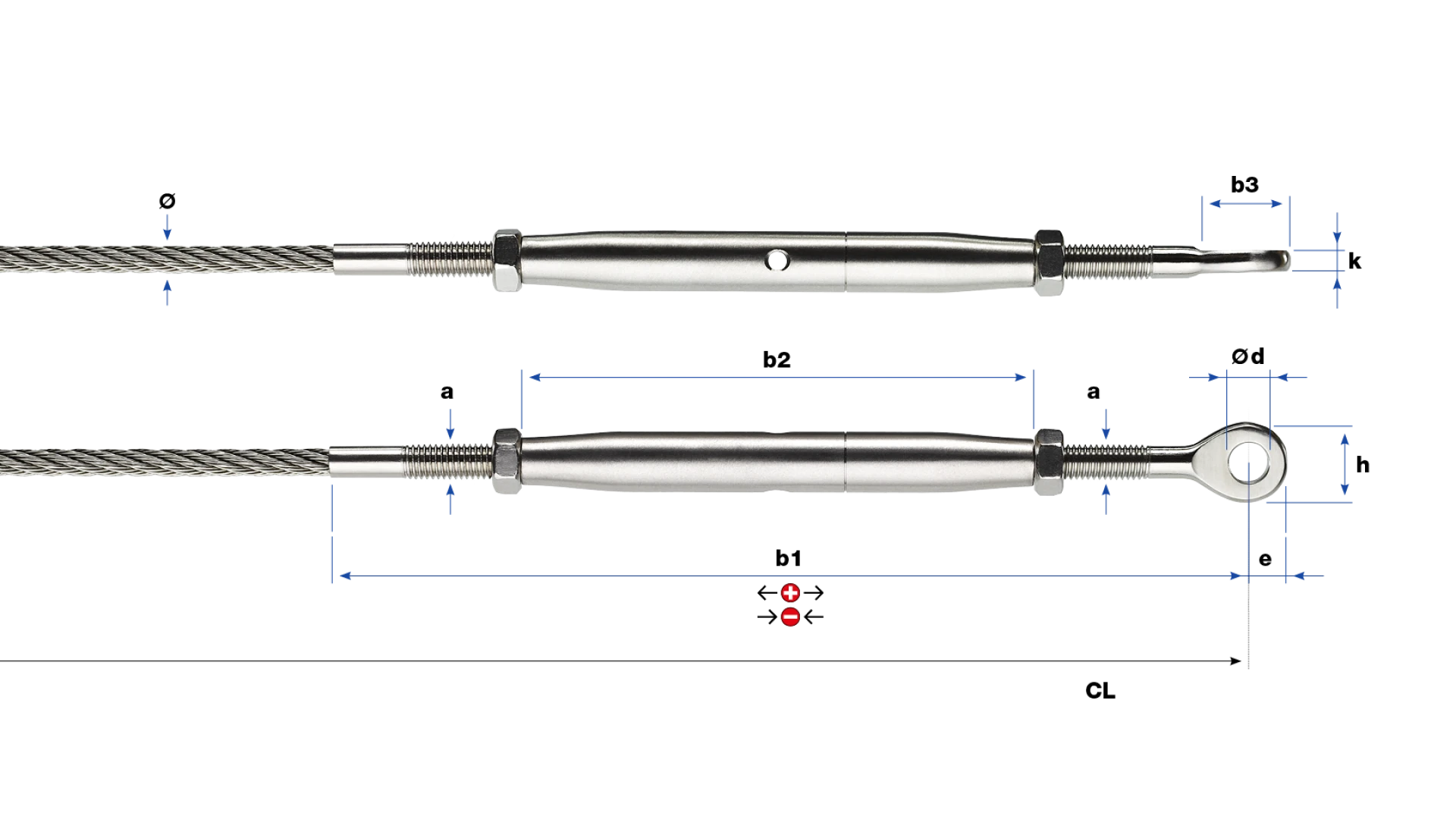

Turnbuckle with Eye-end Vissline round swaged
No. ø a b1 b2 b3 e h k ø d F_Rd kN ETA - + kg
30889-0400-15 4 M5 138 80 15 6 12 3 5.5 18 10 0.0270
30889-0400-16 4 M5 158 80 15 6 12 3 5.5 34 26 0.0470
30889-0500-15 5 M6 148 92 16 7 14 4 6.5 20 12 0.0670
30889-0500-16 5 M6 175 92 16 7 14 4 6.5 44 22 0.0740
30889-0600-15 6 M8 183 112 21 8.5 17 5 8.5 12 17 6 0.1390
30889-0600-16 6 M8 200 112 21 8.5 17 5 8.5 12 51 26 0.1620
30889-0800-15 8 M10 235 120 29 12 22 6 10.5 24.1 54 20 0.2650

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
