Hexagon socket head cap screw low head with Shaft

제품 라인업 — Fasteners · Screws and standard parts

Hexagon socket head cap screw low head with Shaft

No.	a	c1	c2	k2	ø d1	sw	kg
30844-0801-040	M8	25	40	5	13	5	0.0170
Further informations Standard and Classification: DIN 7984 Weight: 0.0170 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request
30844-0801-050	M8	25	50	5	13	5	0.0220
Further informations Standard and Classification: DIN 7984 Weight: 0.0220 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request
30844-0801-060	M8	25	60	5	13	5	0.0260
Further informations Standard and Classification: DIN 7984 Weight: 0.0260 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request
30844-0801-080	M8	25	80	5	13	5	0.0330
Further informations Standard and Classification: DIN 7984 Weight: 0.0330 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request
30844-0801-100	M8	25	100	5	13	5	0.0410
Further informations Standard and Classification: DIN 7984 Weight: 0.0410 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request
30844-0801-120	M8	25	120	5	13	5	0.0470
Further informations Standard and Classification: DIN 7984 Weight: 0.0470 kg Material group: material group AISI 316/1.4401 Nominal strength (Mat. strength): A4 Price basis / tiered prices Price on request

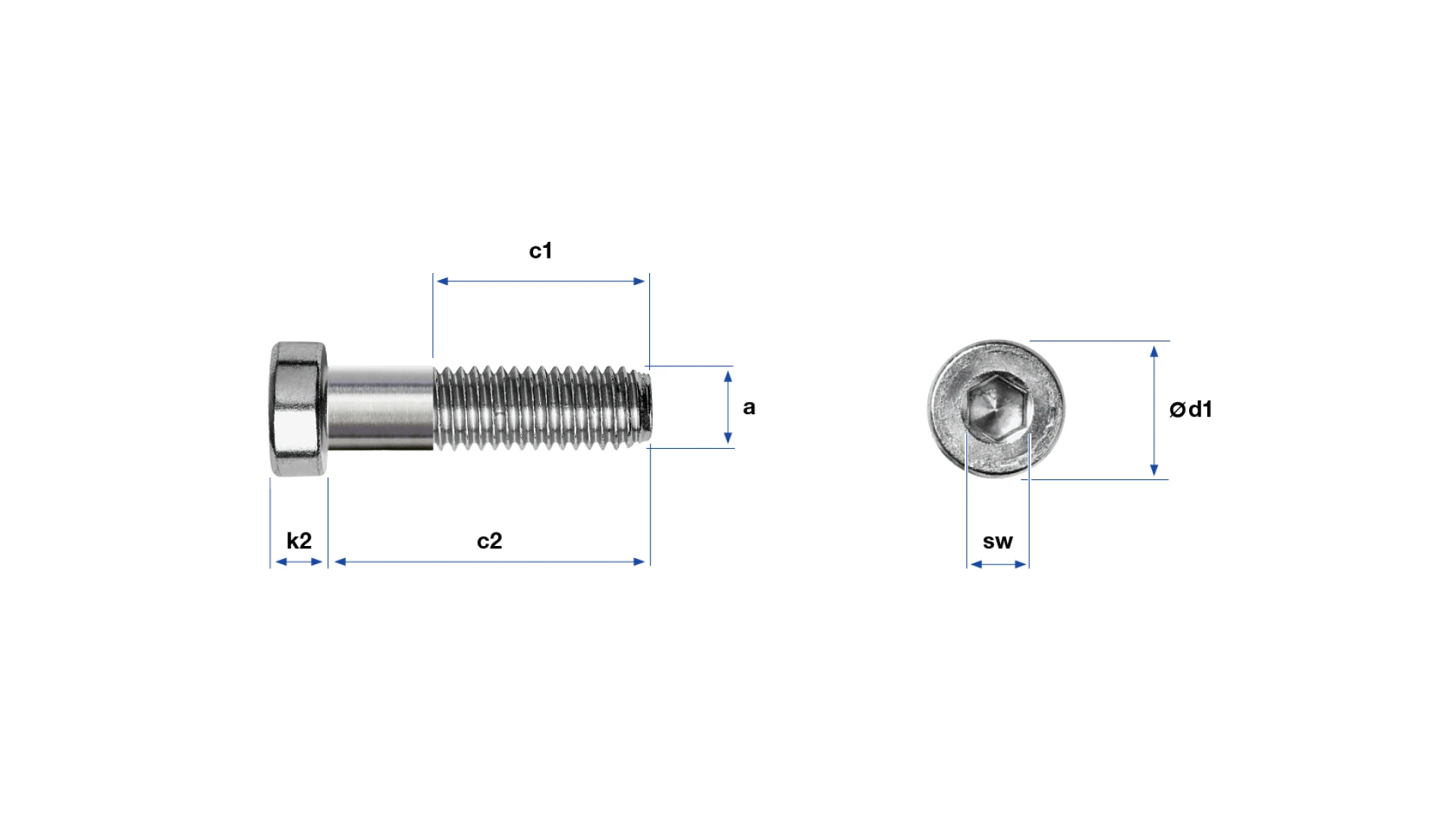

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
