Webnet-Frame Classic

제품 라인업 — Frames · Frames type Classic

Webnet-Frame Classic

No.	k	ø d	ST ø mm	kg
30924-0017-40	1.6	17.2	10	0.6200
Further informations Surface: ground, grain 320 Weight: 0.6200 kg Material group: material group AISI 316/1.4401 Price basis / tiered prices Price on request
30924-0026-40	2	26.9	12	1.6000
Further informations Surface: ground, grain 320 Weight: 1.6000 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30924-0033-40	2	33.7	17.2	1.5900
Further informations Surface: ground, grain 320 Weight: 1.5900 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
30924-0042-40	2	42.4	17.2	2.0100
Further informations Surface: ground, grain 320 Weight: 2.0100 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

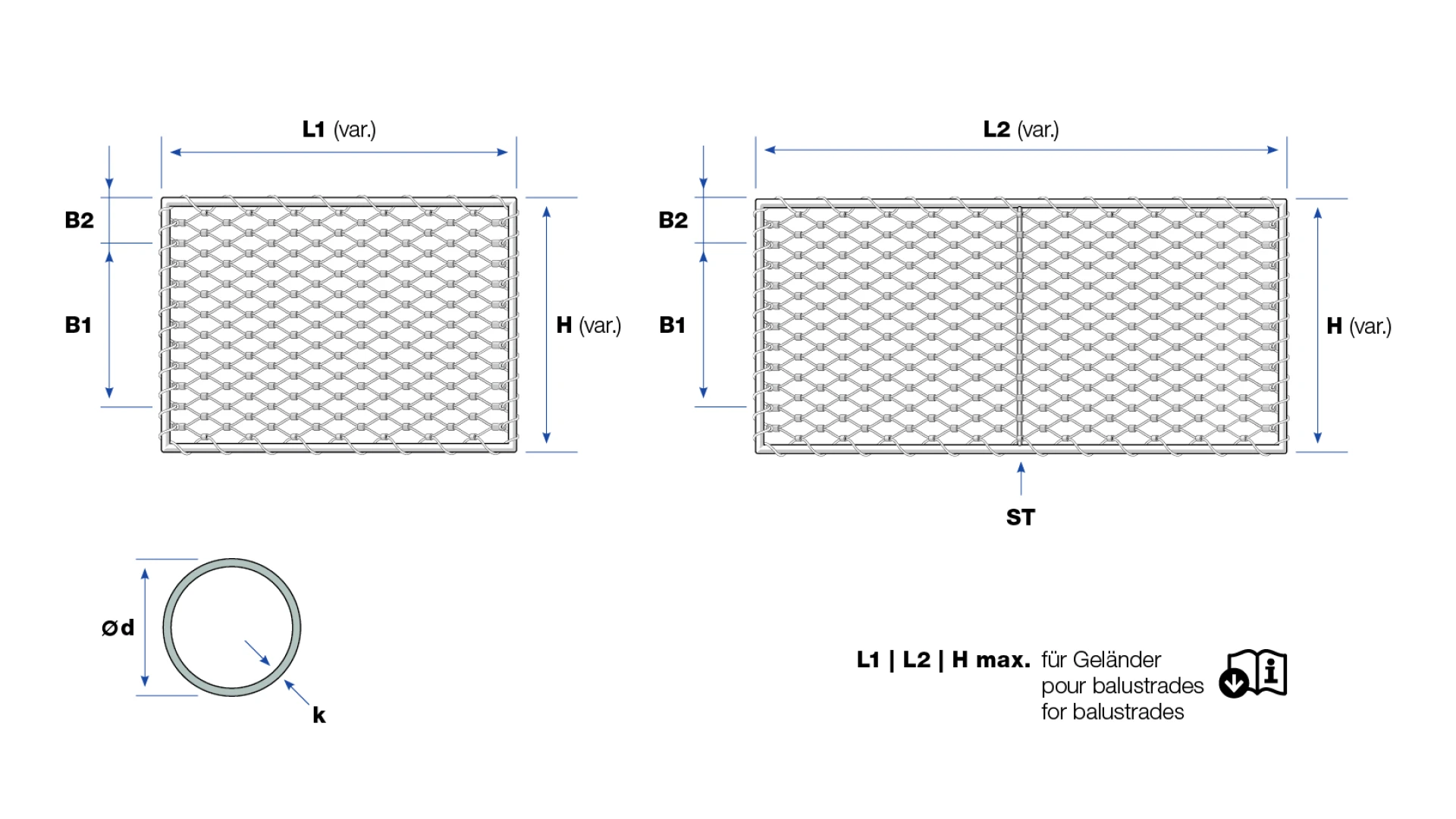

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
