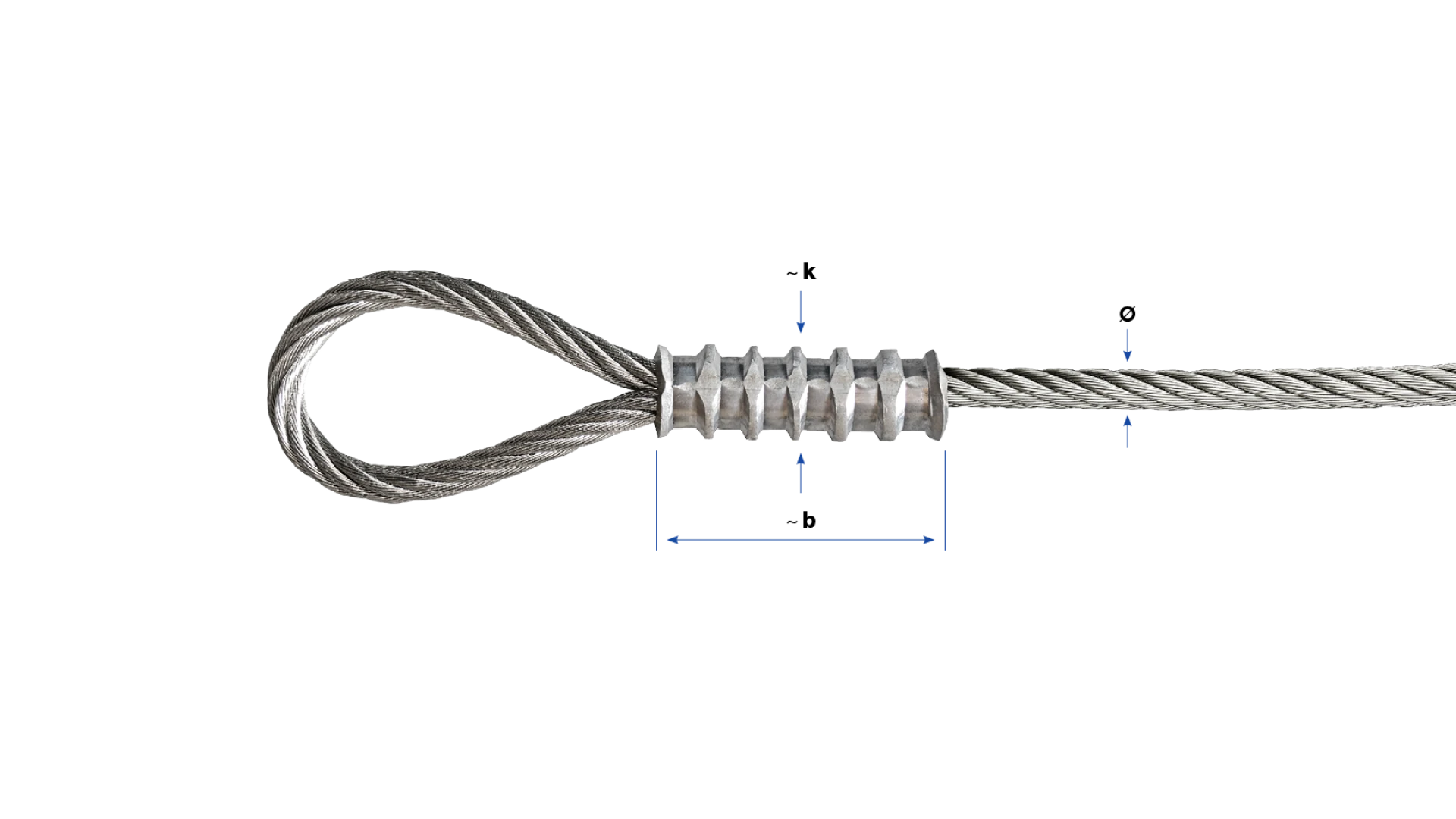

Crimping sleeves self-assembly aluminum

No.	ø	b	k	F_Rd kN	kg
30580-0300-10	3	22	7	2.8	0.0014
Further informations Diameter: 3 mm Weight: 0.0014 kg Material group: AL Price basis / tiered prices Price on request
30580-0400-10	4	31	11	5	0.0027
Further informations Diameter: 4 mm Weight: 0.0027 kg Material group: AL Price basis / tiered prices Price on request
30580-0500-10	5	40	14	7.8	0.0054
Further informations Diameter: 5 mm Weight: 0.0054 kg Material group: AL Price basis / tiered prices Price on request
30580-0600-10	6	45	16	11.2	0.0088
Further informations Diameter: 6 mm Weight: 0.0088 kg Material group: AL Price basis / tiered prices Price on request
30580-0800-10	8	62	21	20	0.0210
Further informations Diameter: 8 mm Weight: 0.0210 kg Material group: AL Price basis / tiered prices Price on request
30580-0900-10	9				0.0320
Further informations Diameter: 9 mm Weight: 0.0320 kg Material group: AL Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
