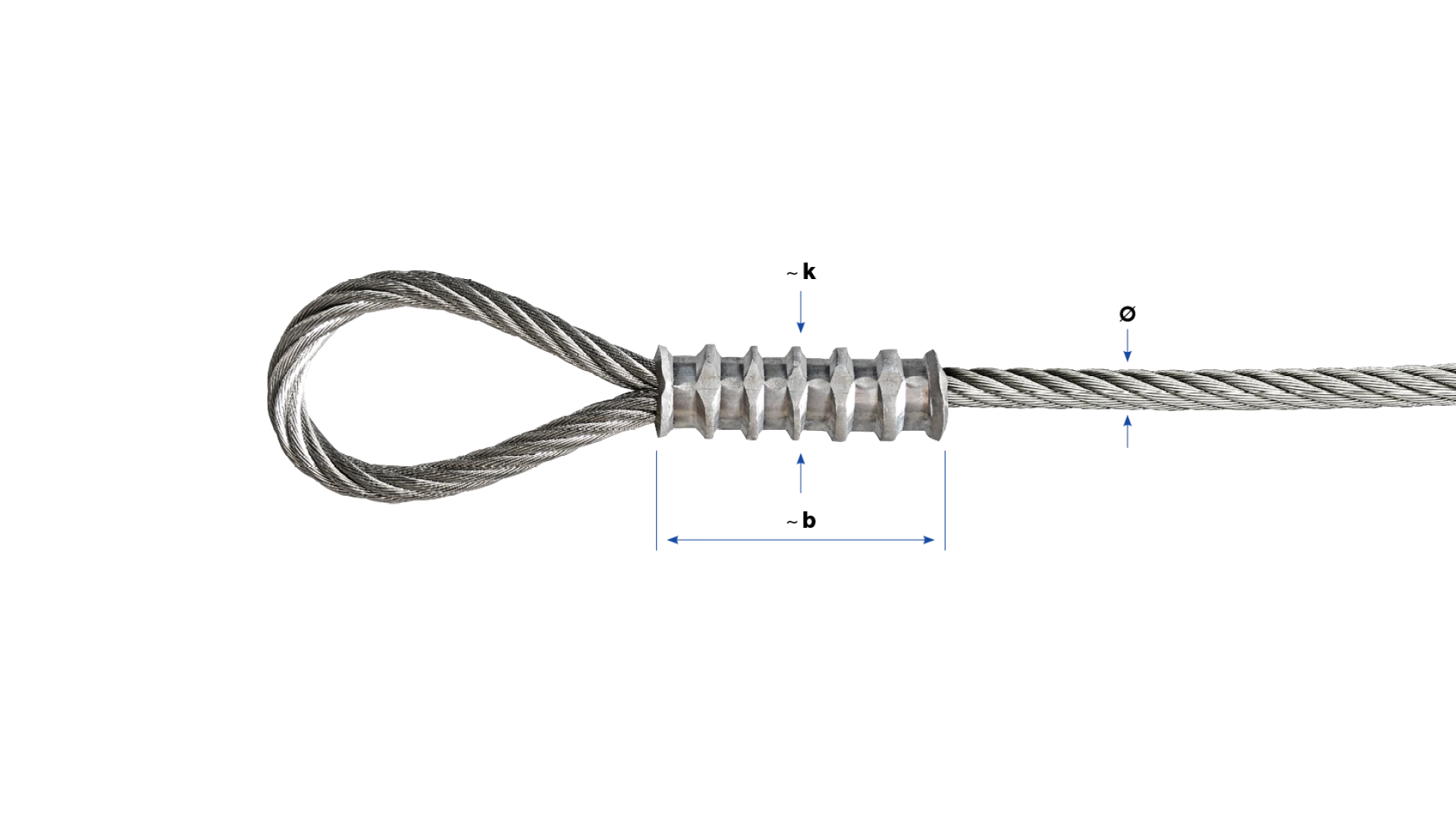

Crimping sleeves self-assembly copper

제품 라인업 — Loops · Loops self assembly

Crimping sleeves self-assembly copper

No.	ø	b	k	F_Rd kN	kg
30581-0300-10	3	22	7	2.8	0.0040
Further informations Surface: tin-plated Diameter: 3 mm Weight: 0.0040 kg Material group: Cu Price basis / tiered prices Price on request
30581-0400-10	4	31	11	5	0.0100
Further informations Surface: tin-plated Diameter: 4 mm Weight: 0.0100 kg Material group: Cu Price basis / tiered prices Price on request
30581-0500-10	5	40	14	7.8	0.0170
Further informations Surface: tin-plated Diameter: 5 mm Weight: 0.0170 kg Material group: Cu Price basis / tiered prices Price on request
30581-0600-10	6	45	16	11.2	0.0300
Further informations Surface: tin-plated Diameter: 6 mm Weight: 0.0300 kg Material group: Cu Price basis / tiered prices Price on request
30581-0800-10	8	62	21	20	0.0730
Further informations Surface: tin-plated Diameter: 8 mm Weight: 0.0730 kg Material group: Cu Price basis / tiered prices Price on request

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
