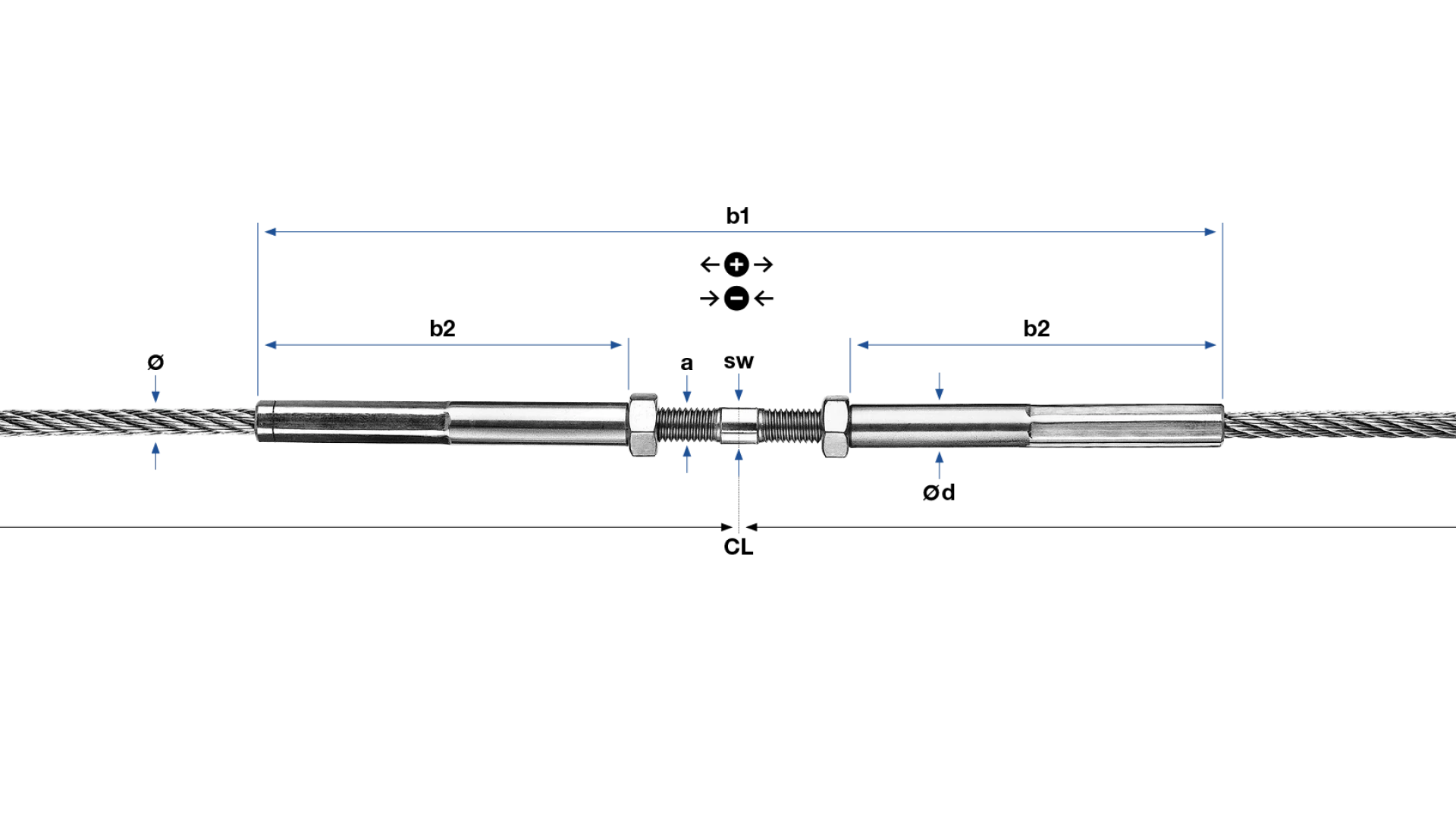

Tensioning screw assembled with internal thread ends swaged for ropeØ 2 - 8 mm

제품 라인업 — Tensioning components · Turnbuckles assembled

Tensioning screw assembled with internal thread ends swaged for ropeØ 2 - 8 mm
No. ø a b1 b2 ø d sw - + kg
30816-0200-01 2 M4 103 38 6 4 14 4 0.0170
30816-0300-01 3 M5 139 55 7 5 16 10 0.0320
30816-0300-02 3 M5 183 70 7 5 30 26 0.0490
30816-0400-01 4 M6 145 57 8 6 16 6 0.0480
30816-0400-02 4 M6 191 73 8 6 30 22 0.0650
30816-0500-01 5 M6 161 65 8 6 16 6 0.0460
30816-0500-02 5 M6 207 81 8 6 30 22 0.0670
30816-0600-01 6 M8 207 83 10 8 20 8 0.0940
30816-0600-02 6 M8 288 108 10 8 50 20 0.1240
30816-0800-01 8 M10 376 140 13 10 70 20 0.3020

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
