Turnbuckle with external thread end SA self-assembly

제품 라인업 — Tensioning components · Turnbuckles assembled

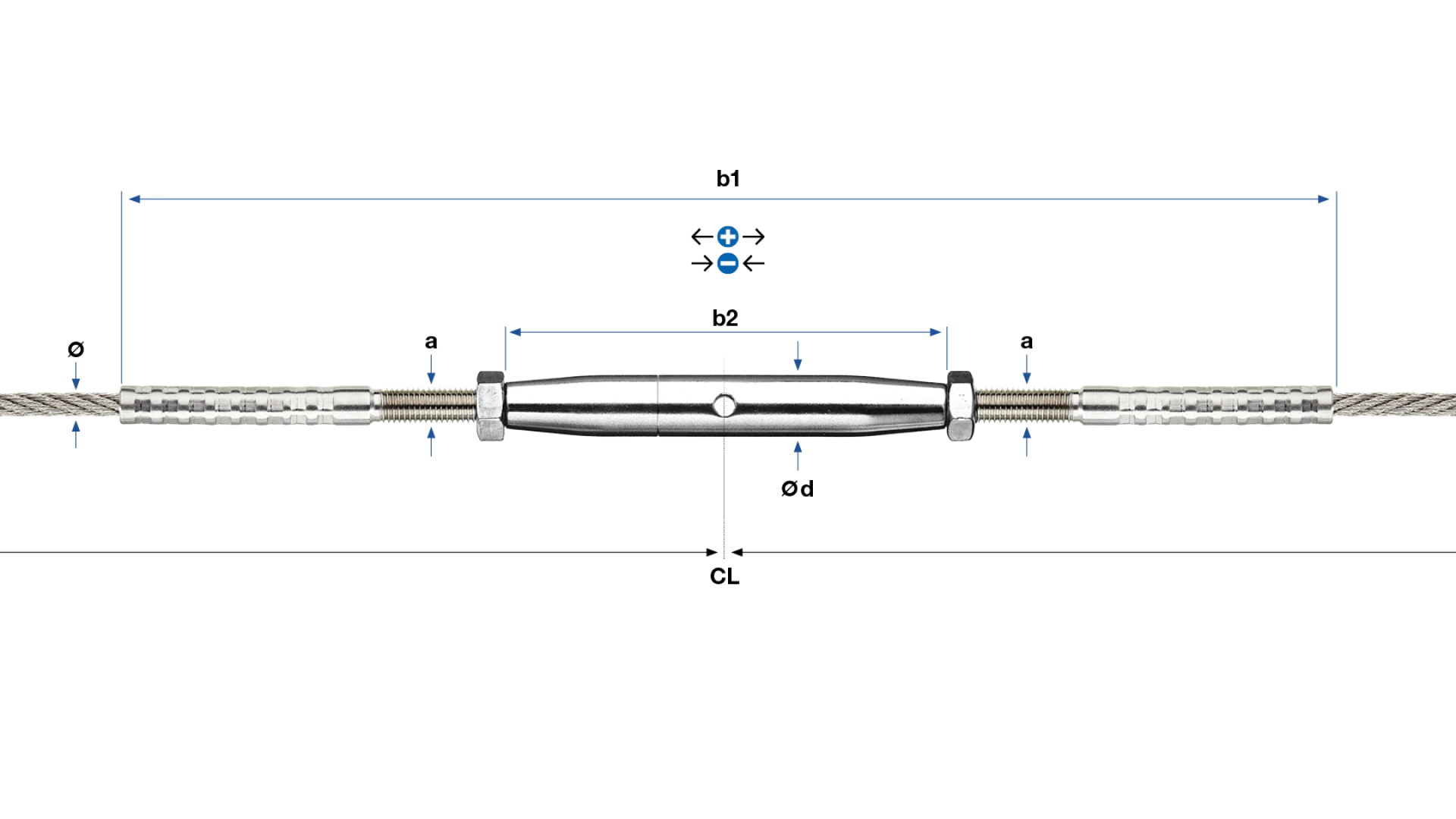

Turnbuckle with external thread end SA self-assembly
No. ø a b1 b2 F_Rd kN - + kg
30829-0200-06 2 M5 196 80 1.1 40 26 0.0650
30829-0300-06 3 M6 228 92 2.5 52 22 0.0650
30829-0400-06 4 M6 236 92 4.4 52 22 0.0700
30829-0500-06 5 M8 258 112 6.1 56 26 0.1280
30829-0600-06 6 M10 280 120 8.7 60 30 0.2170
30829-0800-06 8 M12 394 150 17.8 70 34 0.2170

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
