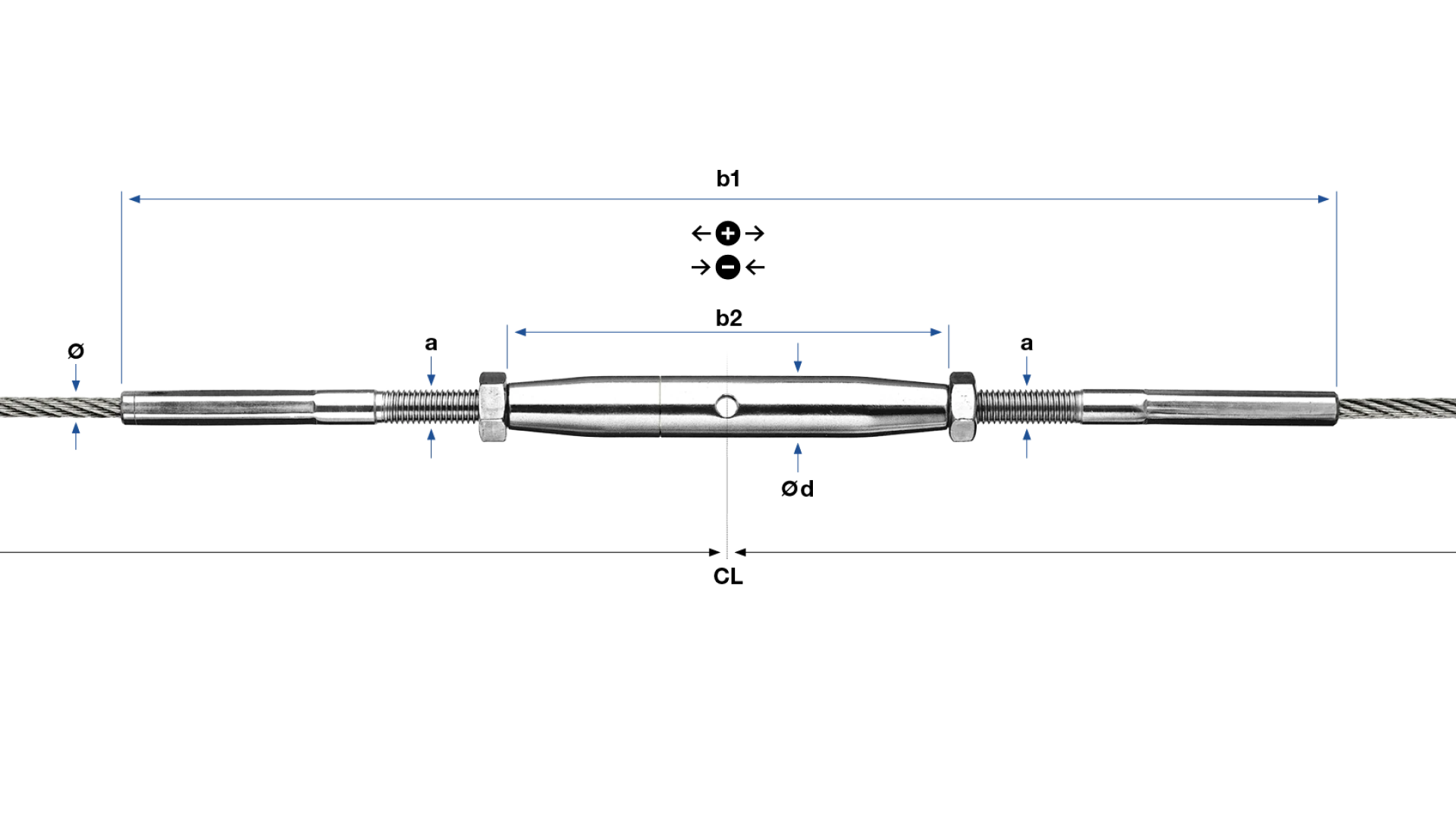

Turnbuckle with external thread end swaged

제품 라인업 — Tensioning components · Turnbuckles assembled

Turnbuckle with external thread end swaged
No. ø a b1 b2 ø d - + kg
30829-0200-01 2 M5 152 80 8 28 10 0.0280
30829-0200-02 2 M5 196 80 8 40 26 0.0350
30829-0300-01 3 M6 184 92 10 26 6 0.0550
30829-0300-02 3 M6 228 92 10 52 22 0.0650
30829-0400-01 4 M6 192 92 10 26 6 0.0600
30829-0400-02 4 M6 236 92 10 52 22 0.0700
30829-0400-03 4 M8 246 112 13.5 56 26 0.1310
30829-0500-01 5 M8 224 112 13.5 24 0 0.1050
30829-0500-02 5 M8 258 112 13.5 56 26 0.1280
30829-0600-01 6 M10 290 120 17.2 54 20 0.1880
30829-0600-02 6 M10 320 120 17.2 60 30 0.2170
30829-0800-01 8 M12 394 150 21.3 70 34 0.4200
30829-1000-01 10 M16 520 190 26.9 84 42 0.9330
30829-1200-01 12 M20 620 220 33.7 98 50 1.6270
30829-1600-01 16 M24 658 212 42 92 48 2.6700

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
