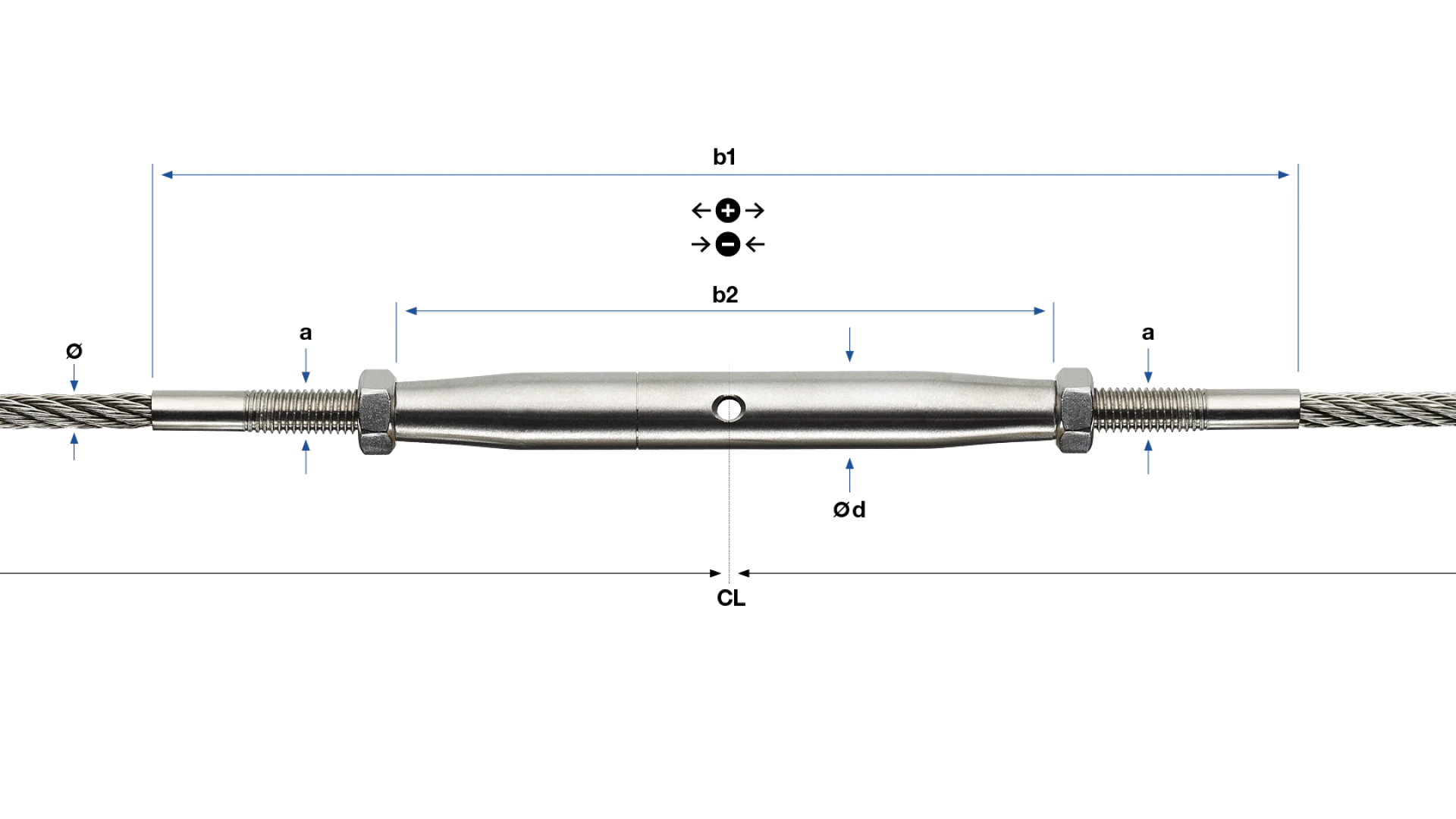

Turnbuckle with external thread end Vissline round swaged

제품 라인업 — Tensioning components · Turnbuckles assembled

Turnbuckle with external thread end Vissline round swaged
No. ø a b1 b2 ø d - + kg
30829-0300-15 3 M4 85 45 7 14 8 0.0280
30829-0400-15 4 M5 134 80 8 22 15 0.0200
30829-0400-16 4 M5 164 80 8 40 25 0.0550
30829-0500-15 5 M6 146 92 10 20 12 0.0780
30829-0500-16 5 M6 176 92 10 50 22 0.0870
30829-0600-15 6 M8 172 112 13.5 17 6 0.1520
30829-0600-16 6 M8 212 112 13.5 57 26 0.1780
30829-0800-16 8 M10 220 120 17.2 54 20 0.2860
