External thread end left-hand Forte round swaged

No.	ø	a	b	c	ø d	sw	F_Rd kN ETA	x min	kg
32855-0800-01	8	M12	175	80	16.1	9	30.6	400	0.1600
Further informations Diameter: 8 mm Weight: 0.1600 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-1000-01	10	M16	205	90	17.9	12	47.9	500	0.2620
Further informations Diameter: 10 mm Weight: 0.2620 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-1200-01	12	M20	235	100	21.4	15	69	600	0.4530
Further informations Diameter: 12 mm Weight: 0.4530 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-1400-01	14	M24	282	120	25	18	94	700	0.7760
Further informations Diameter: 14 mm Weight: 0.7760 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-1600-01	16	M24	300	120	28.2	18	122.4	800	0.9200
Further informations Diameter: 16 mm Weight: 0.9200 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-1900-01	19	M30	362	150	34.5	23	172.8	950	1.7700
Further informations Diameter: 19 mm Weight: 1.7700 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-2200-01	22	M30	390	150	40.5	23	231.4	1100	2.2850
Further informations Diameter: 22 mm Weight: 2.2850 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request
32855-2600-01	26	M36	420	160	46	28	315.5	1300	3.3000
Further informations Diameter: 26 mm Weight: 3.3000 kg Material group: material group AISI 316L/1.4404 Price basis / tiered prices Price on request

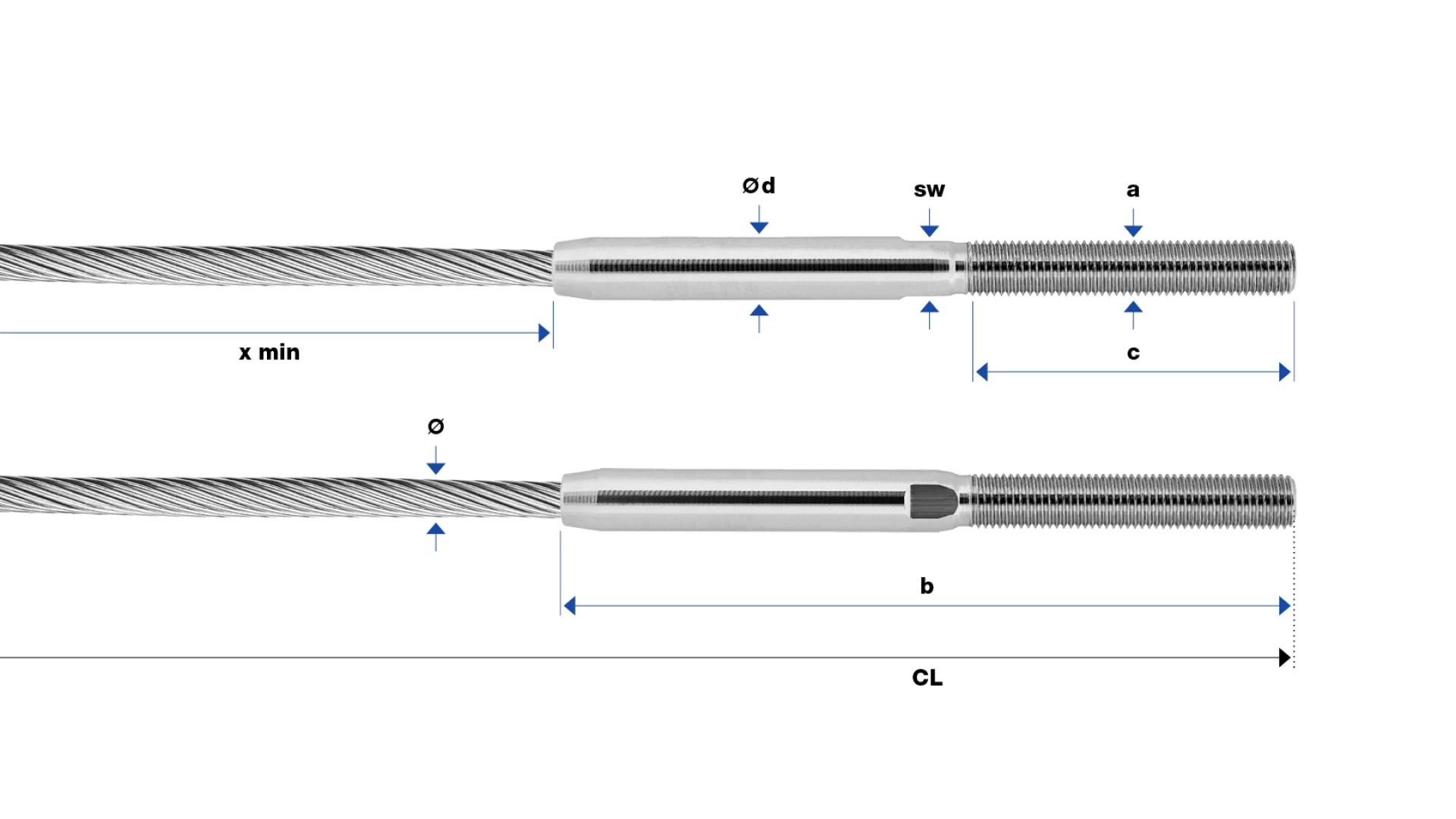

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
