External thread end left-hand LT1 Self-assembly

제품 라인업 — Threads · External threads

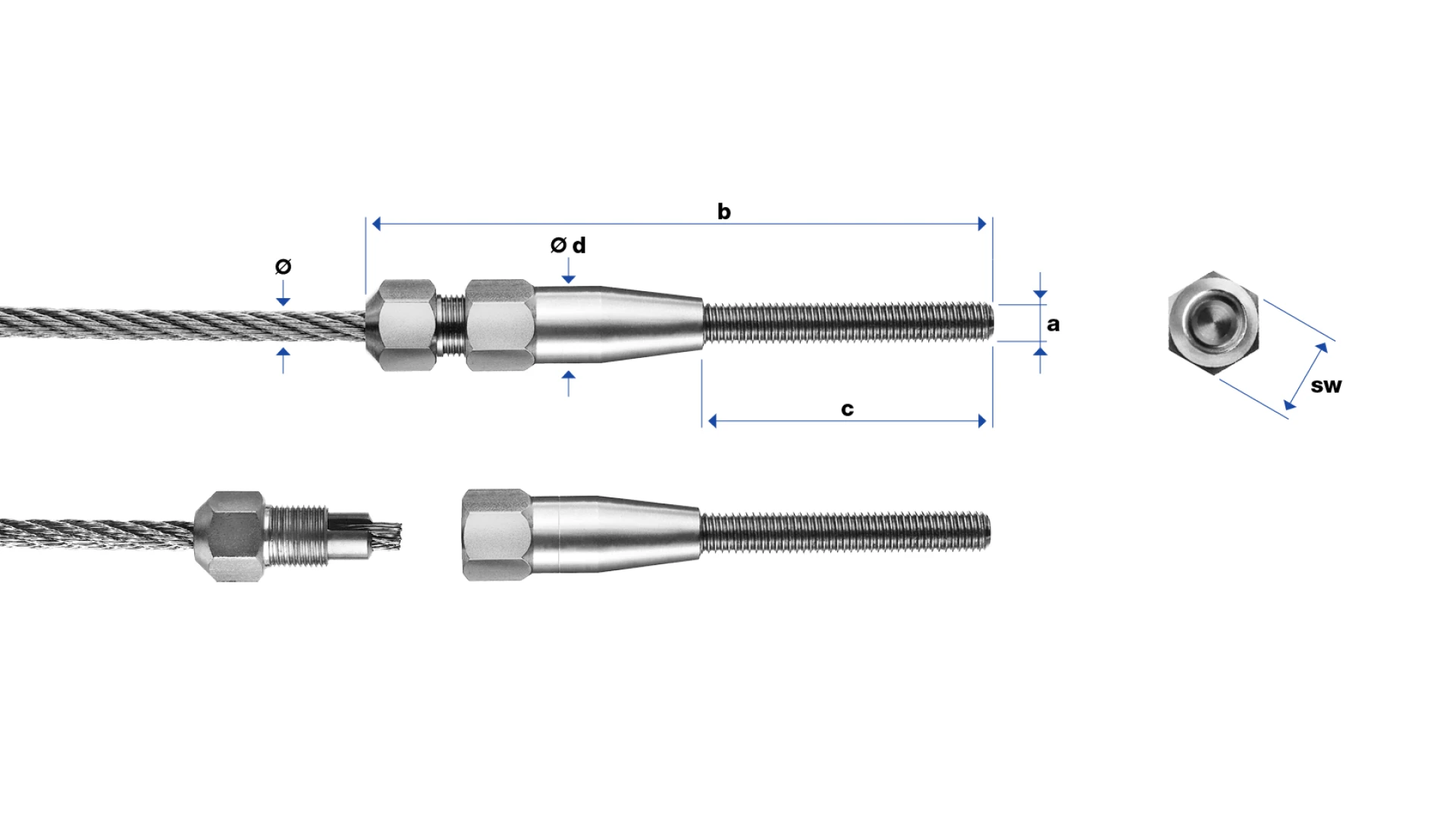

External thread end left-hand LT1 Self-assembly
No. ø a b c ø d sw F_Rd kN ETA F_Rd kN kg
30827-0200-030 2 M6 88 30 12 13 1.8 0.0490
30827-0200-060 2 M6 118 60 12 13 1.8 0.0540
30827-0300-030 3 M6 88 30 12 13 3.4 0.0490
30827-0300-060 3 M6 118 60 12 13 3.4 0.0540
30827-0400-030 4 M6 88 30 12 13 5.2 6.1 0.0480
30827-0400-060 4 M6 118 60 12 13 5.2 6.1 0.0530
30827-0500-030 5 M8 92 30 14.5 15 7.6 9.2 0.0740
30827-0500-060 5 M8 122 60 14.5 15 7.6 9.2 0.0790
30827-0600-030 6 M8 92 30 14.5 15 10.4 11.4 0.0730
30827-0600-031 6 M10 93 30 14.5 22 10.4 11.4 0.0780
30827-0600-060 6 M8 122 60 14.5 15 10.4 11.4 0.0780
30827-0600-061 6 M10 123 60 14.5 22 10.4 11.4 0.0780
30827-0600-081 6 M10 143 80 14.5 22 10.4 11.4 0.0780
30827-0800-061 8 M10 148 60 21.8 22 19.8 22.8 0.0780
30827-0800-080 8 M12 168 80 21.8 22 19.8 22.8 0.2610
30827-0800-081 8 M10 168 80 21.8 22 19.8 22.8 0.2100
30827-0800-120 8 M12 208 120 21.8 22 19.8 22.8 0.2980
30827-1000-090 10 M16 197 90 29.5 30 29.2 31.3 0.5700
30827-1200-100 12 M20 236 100 35.5 36 43.5 45 1.0690
30827-1600-120 16 M24 274 120 44 46 78 79.8 1.9410

Labeling according to the technical drawing. Technical changes are reserved. The information on this website is provided without guarantee of completeness.

↑
