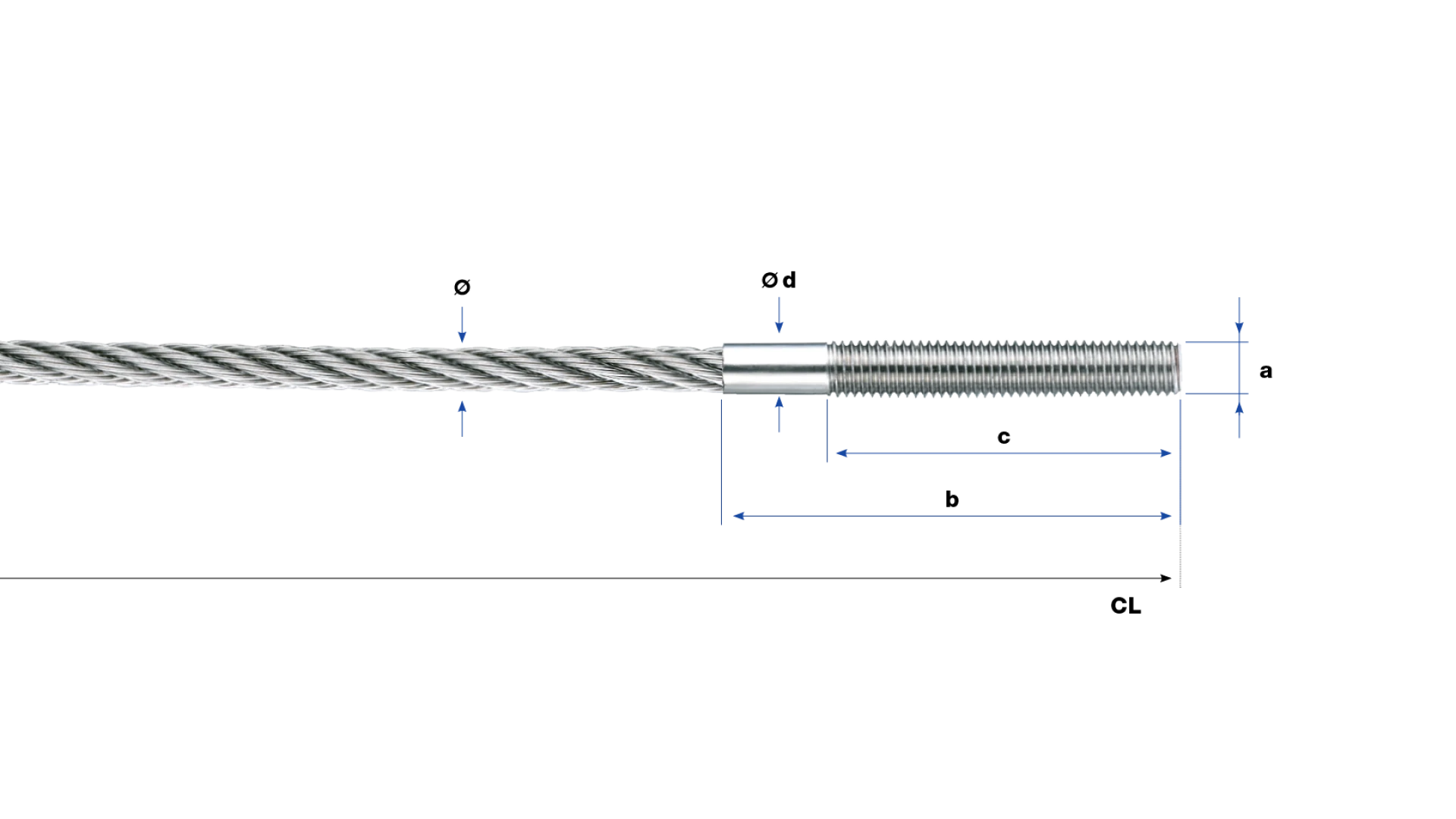

External thread end left-hand Vissline round swaged
No. ø a b c ø d F_Rd kN ETA kg
30949-0300-20 3 M4 30 20 3.5 0.0015
30949-0300-40 3 M4 50 40 3.5 0.0020
30949-0400-30 4 M5 42 30 4.5 0.0030
30949-0400-50 4 M5 62 50 4.5 0.0040
30949-0500-30 5 M6 42 30 5.3 0.0050
30949-0500-50 5 M6 62 50 5.3 0.0070
30949-0600-30 6 M8 45 30 7.2 12 0.0100
30949-0600-60 6 M8 75 60 7.2 12 0.0130
30949-0800-30 8 M10 45 30 9 24.1 0.0120
30949-0800-60 8 M10 75 60 9 24.1 0.0160
